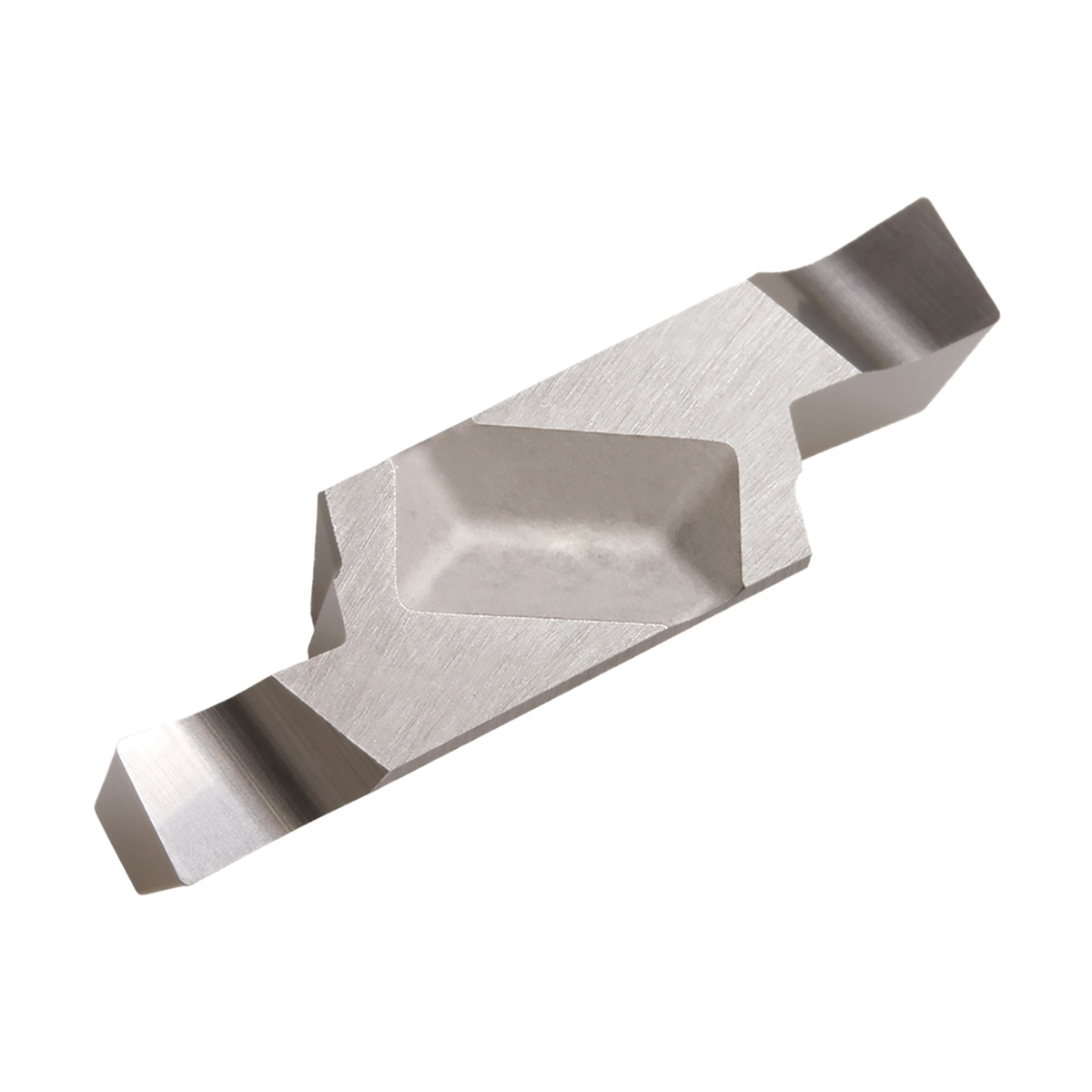

GVFR350CKW10 GROOVING INSERT

GVFR350CKW10 GROOVING INSERT

KYOCTWE02230 TWE02230
42.63 / EA
http://schema.org/OutOfStock
GVFR350CKW10 GROOVING INSERT
  • Corner Radius: 0.4mm
  • Cutting Width: 3.5mm
  • Hand Direction: Right Hand
  • Insert Size: #350
  • Insert Style: GVF
  • Length: 27mm
  • Material: Carbide
  • Maximum Depth of Cut Decimal Inch: 0.268
  • Maximum Depth of Cut Metric: 6.8
  • Series: GVF
  • Surface Treatment: UNCOATED
  • Type: 2-Cutting Metric
  • ANSI Code: GVFR350CKW10
  • Chipbreaker: C
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • ISO Code: GVFR350C
  • Manufacturer Grade: KW10
  • Manufacturer Name: KYOCERA Precision Tools
  • Material Grade: N
  • Rake: Positive
  • Thickness: 7mm
QTY
Add to List
  • Application
  • Item Features
  • Standards
For stable cutting of cast iron, non-ferrous materials, non-metals and titanium alloys and face grooving
  • Without hole and full radius
ECCN: EAR99
