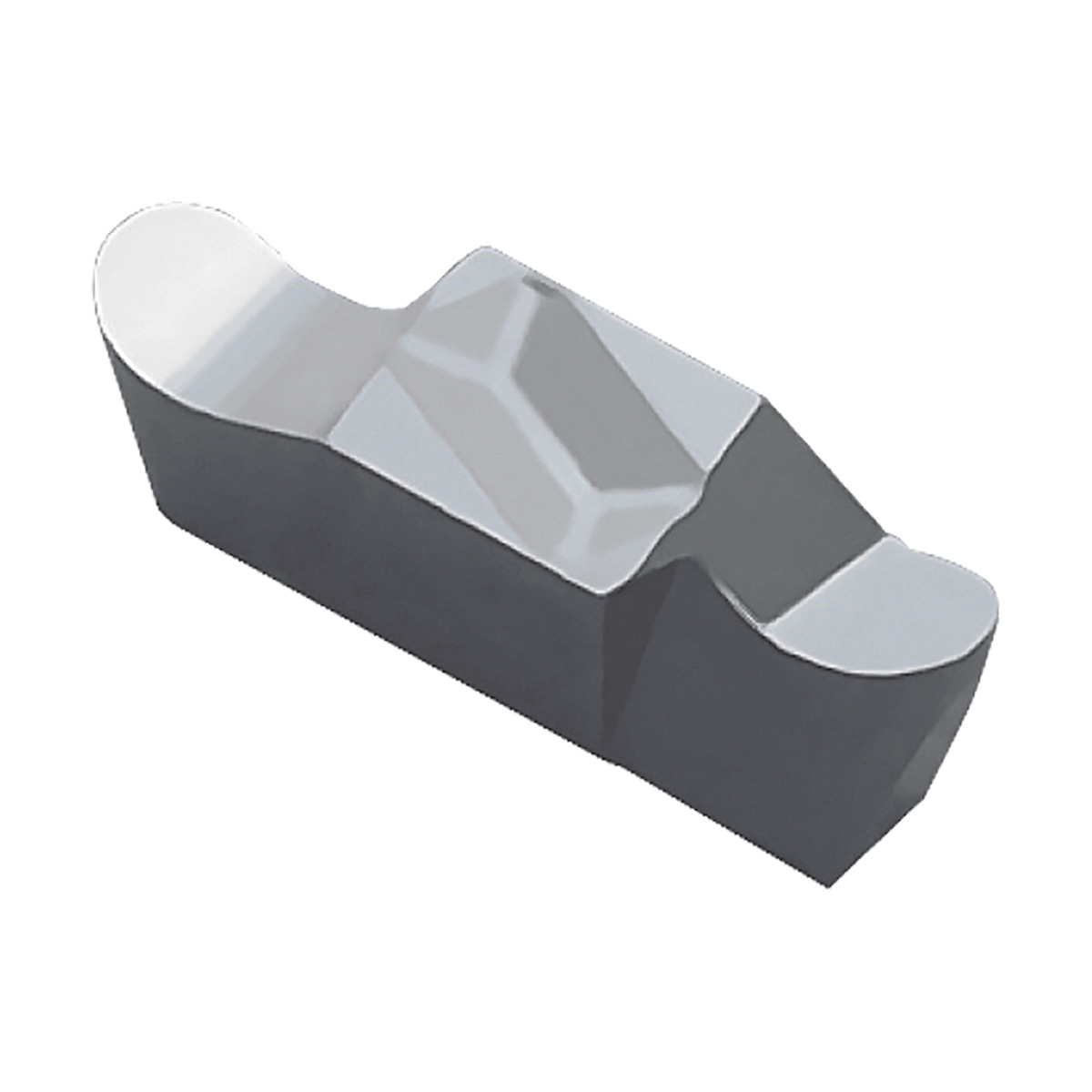

GVL100BRKW10 GROOVING INSERT

GVL100BRKW10 GROOVING INSERT

KYOCTWE02061 TWE02061
40.90 / EA
http://schema.org/OutOfStock
GVL100BRKW10 GROOVING INSERT
  • Corner Radius: 1mm
  • Cutting Width: 2mm
  • Hand Direction: Left Hand
  • Insert Size: #100
  • Insert Style: GV
  • Length: 15mm
  • Material: Carbide
  • Maximum Depth of Cut Decimal Inch: 0.126
  • Maximum Depth of Cut Metric: 3.2
  • Series: GVIG
  • Surface Treatment: Co-Coated/Uncoated/WC
  • Type: 2-Cutting Edge
  • ANSI Code: GVL100BRKW10
  • Chipbreaker: BR
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • ISO Code: GVL100BR
  • Manufacturer Grade: KW10
  • Manufacturer Name: KYOCERA Precision Tools
  • Material Grade: N
  • Rake: Positive
  • Thickness: 5.5mm
QTY
Add to List
  • Application
  • Item Features
  • Standards
Internal Grooving and Small Parts Machining Applications
  • Insert for small internal grooving
  • Two edge, full radius
  • ISO identification symbol K carbide (K10 relevant)
  • Stable cutting of cast iron, non-ferrous materials, non-metals and titanium alloy
  • Without hole
