KYOCERA PRECISION TOOLS

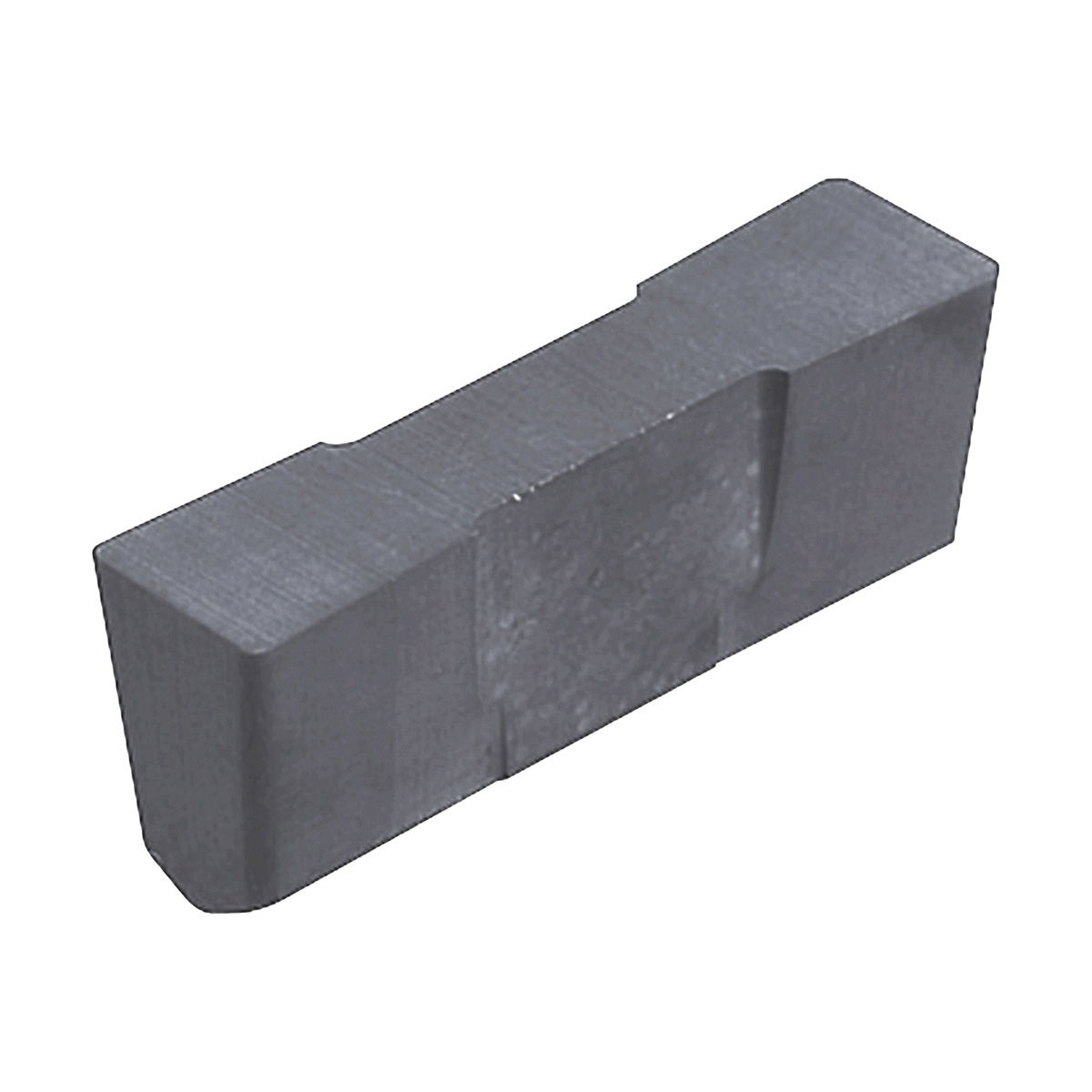

GH702002KW10 GROOVING INSERT

GH702002KW10 GROOVING INSERT

KYOCTWE01160 TWE01160
36.69 / EA
http://schema.org/OutOfStock
GH702002KW10 GROOVING INSERT
  • Corner Radius: 0.2mm
  • Cutting Width: 7mm
  • Hand Direction: Neutral
  • Insert Size: #702002
  • Insert Style: GH
  • Length: 20mm
  • Material: Carbide
  • Maximum Depth of Cut Decimal Inch: 0.512
  • Maximum Depth of Cut Metric: 13.0
  • Series: KGH
  • Surface Treatment: Co-Coated/Uncoated/WC
  • Type: 2-Cutting Edge
  • ANSI Code: GH702002KW10
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • ISO Code: GH7020-02
  • Lead Angle: 120°
  • Manufacturer Grade: KW10
  • Manufacturer Name: KYOCERA Precision Tools
  • Material Grade: N
  • Rake: Positive
  • Thickness: 7.5mm
QTY
Add to List
  • Application
  • Item Features
  • Standards
External Deep Grooving, External Grooving and Internal Large Diameter Deep Grooving Applications
  • Insert for external deep grooving, internal large diameter deep grooving
  • Ground chipbreaker
  • ISO identification symbol K carbide (K10 relevant)
  • Stable cutting of cast iron, non-ferrous materials, non-metals and titanium alloy
  • Without hole and full radius
