KYOCERA PRECISION TOOLS

GDM 3020N150RCM TN620 GROOVING INSERT

GDM 3020N150RCM TN620 GROOVING INSERT

KYOCTSR10750 TSR10750
17.70 / EA
http://schema.org/OutOfStock
GDM 3020N150RCM TN620 GROOVING INSERT
  • Corner Radius: 1.5 mm
  • Cutting Width: 3 mm
  • Hand Direction: Neutral
  • Insert Size: #3020
  • Insert Style: GDM
  • Length: 20 mm
  • Material: Cermet
  • Maximum Depth of Cut Decimal Inch: 1.004
  • Maximum Depth of Cut Metric: 25.5
  • Series: KGD
  • Surface Treatment: TiCN Coated/Uncoated
  • Type: 2-Cutting Edge
  • ANSI Code: GDM3020N150RCMTN620
  • Chipbreaker: CM
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • ISO Code: GDM3020N-150R-CM
  • Manufacturer Grade: TN620
  • Manufacturer Name: KYOCERA Precision Tools
  • Material Grade: P
  • Rake: Positive
  • Thickness: 4.3 mm
QTY
Add to List
  • Application
  • Item Features
  • Standards

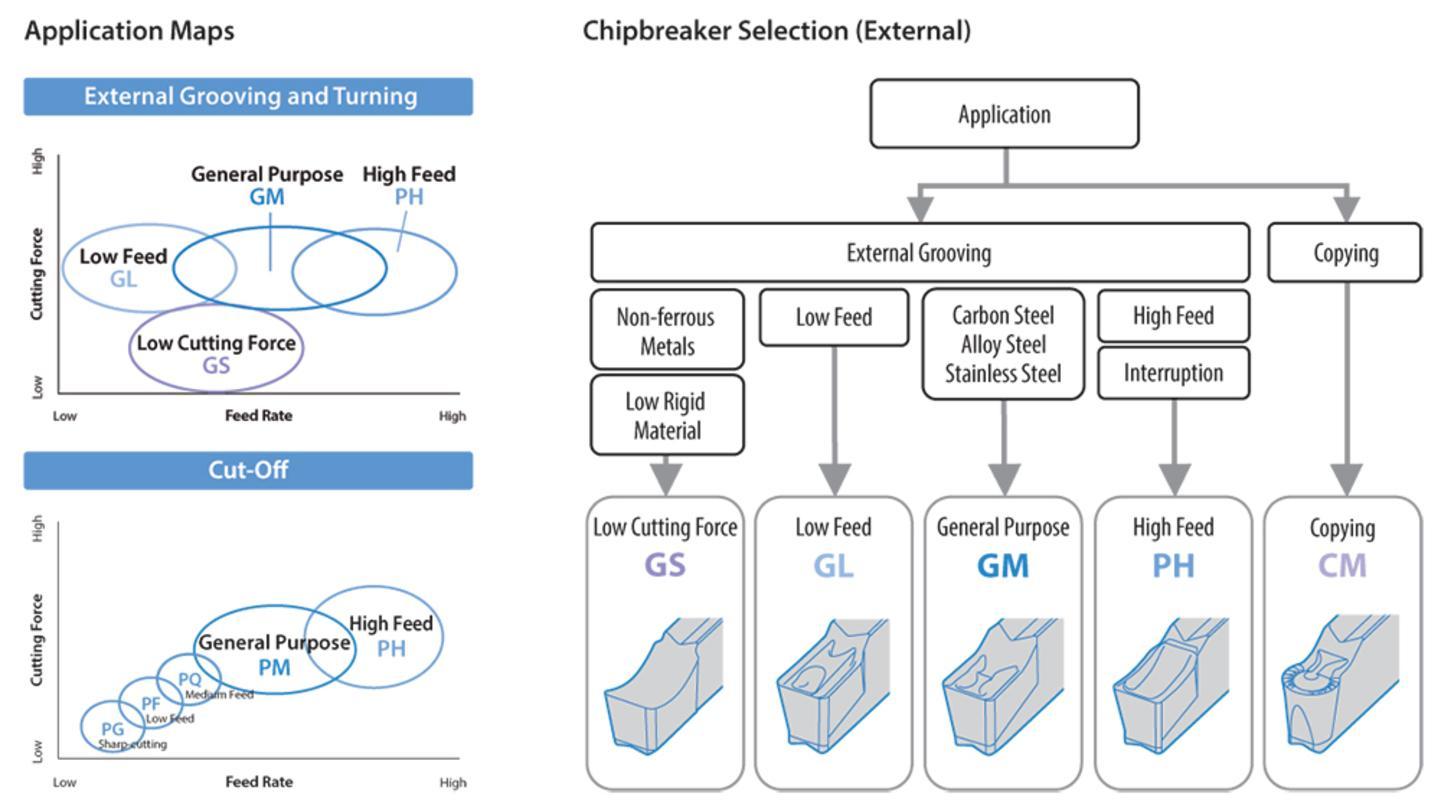

Copying Applications
  • Insert for full-R, copying
  • Inner structure has high toughness and chipping resistance along with thermal shock resistance
  • Recommended cermet for stable steel machining and high quality surface finish
  • Without hole
  • https://youtu.be/moxzwEbjweU
