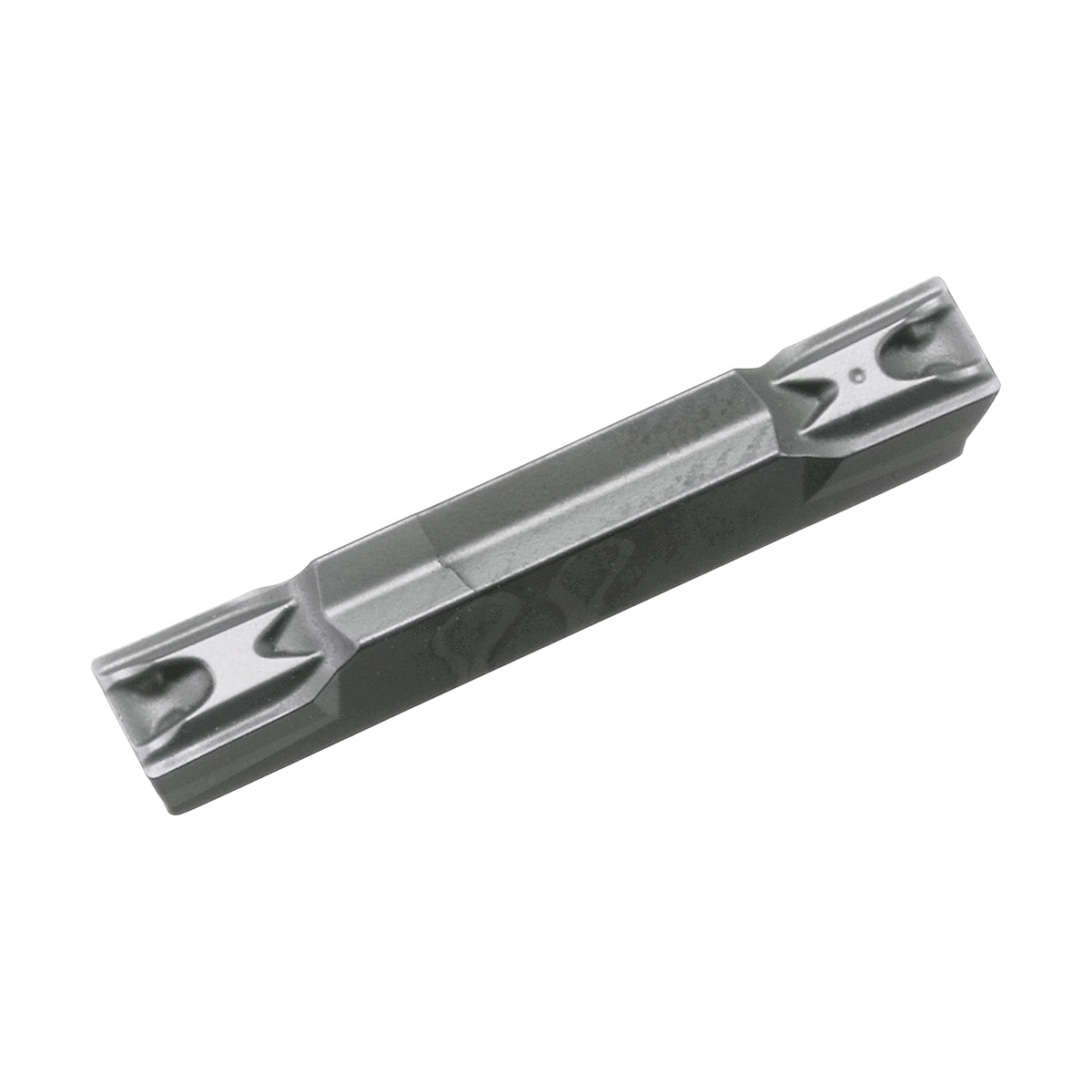

GDM3020N040GLTN620 GROOVING INSERT
GDM3020N040GLTN620 GROOVING INSERT
KYOCTSR10646
TSR10646
16.09
/ EA
http://schema.org/OutOfStock
/Product/KYOCTSR10646
- Corner Radius: 0.4mm
- Cutting Width: 3mm
- Hand Direction: Neutral
- Insert Size: #3020
- Insert Style: GDM
- Length: 20mm
- Material: Cermet
- Maximum Depth of Cut Decimal Inch: 1.004
- Maximum Depth of Cut Metric: 25.5
- Series: KGD
- Surface Treatment: TiCN Coated/Uncoated
- Type: 2-Cutting Edge
- ANSI Code: GDM3020N040GLTN620
- Chipbreaker: GL
- Country of Origin: US|JP|CN|KR
- Has Attributes: Yes
- Has Image: Yes
- ISO Code: GDM3020N-040GL
- Manufacturer Grade: TN620
- Manufacturer Name: KYOCERA Precision Tools
- Material Grade: P
- Rake: Positive
- Thickness: 4.3mm
- Application
- Item Features
- Standards
External Grooving and Traversing Applications
- Insert for external grooving, traversing
- Low feed/two edge
- Inner structure has high toughness and chipping resistance along with thermal shock resistance
- Recommended cermet for stable steel machining and high quality surface finish
- Without hole and full radius
- https://youtu.be/moxzwEbjweU
