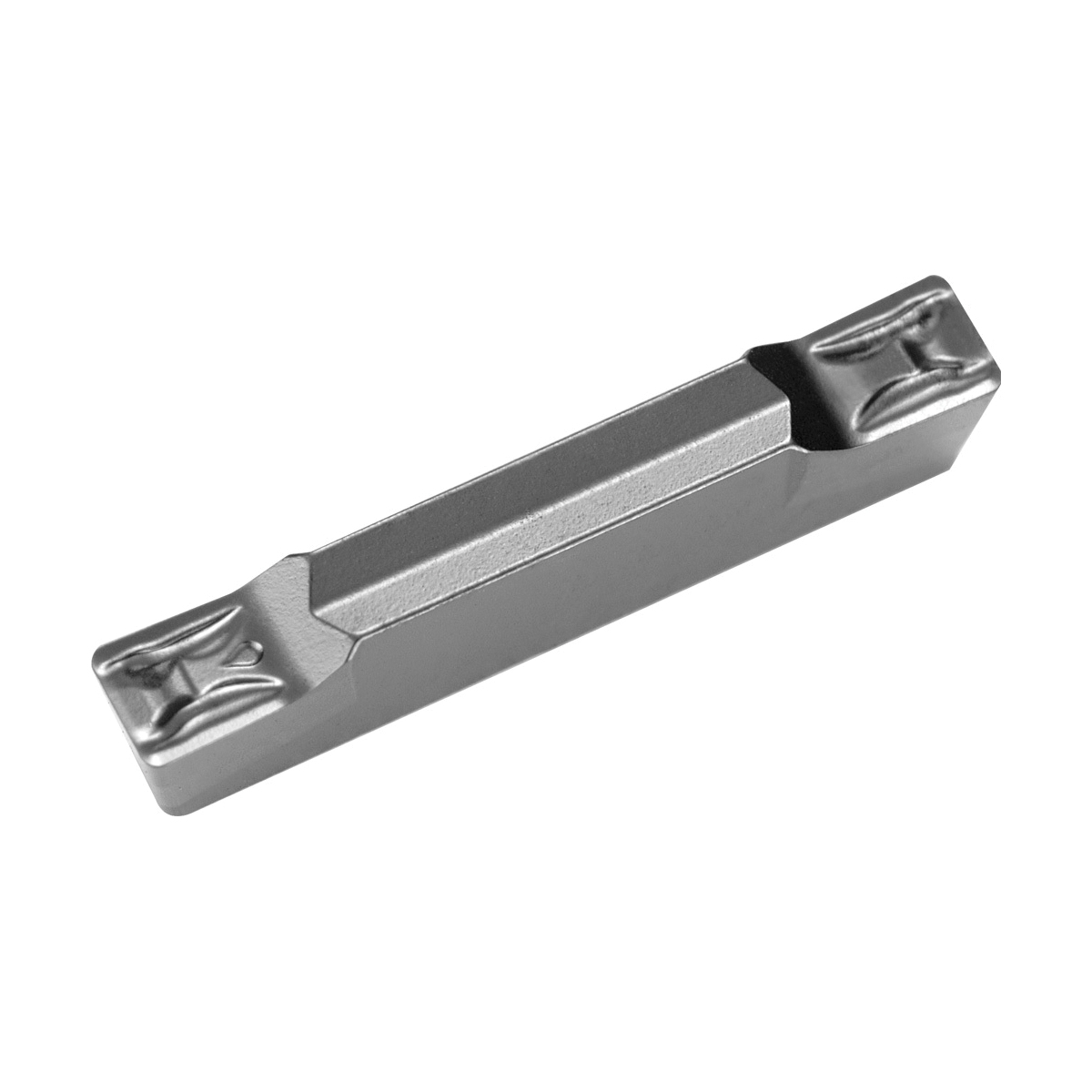

GDM3020N020GMTN620 GROOVING INSERT

GDM3020N020GMTN620 GROOVING INSERT

KYOCTSR10539 TSR10539
16.09 / EA
http://schema.org/OutOfStock
GDM3020N020GMTN620 GROOVING INSERT
  • Corner Radius: 0.2mm
  • Cutting Width: 3mm
  • Hand Direction: Neutral
  • Insert Size: #3020
  • Insert Style: GDM
  • Length: 20mm
  • Material: Cermet
  • Series: KGD
  • Surface Treatment: UNCOATED
  • Type: 2-Cutting Metric
  • ANSI Code: GDM3020N020GMTN620
  • Chipbreaker: GM
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • ISO Code: GDM3020N-020GM
  • Lead Angle: 6°
  • Manufacturer Grade: TN620
  • Manufacturer Name: KYOCERA Precision Tools
  • Material Grade: P
  • Rake: Positive
  • Thickness: 4.3mm
  • Width: 3mm
QTY
Add to List
  • Application
  • Item Features
  • Standards
For recommended cermet for stable steel machining and high quality surface finish, external grooving, traversing
  • General purpose/2 edge
  • Inner structure has high toughness and chipping resistance along with thermal shock resistance
  • Without hole and full radius
ECCN: EAR99
