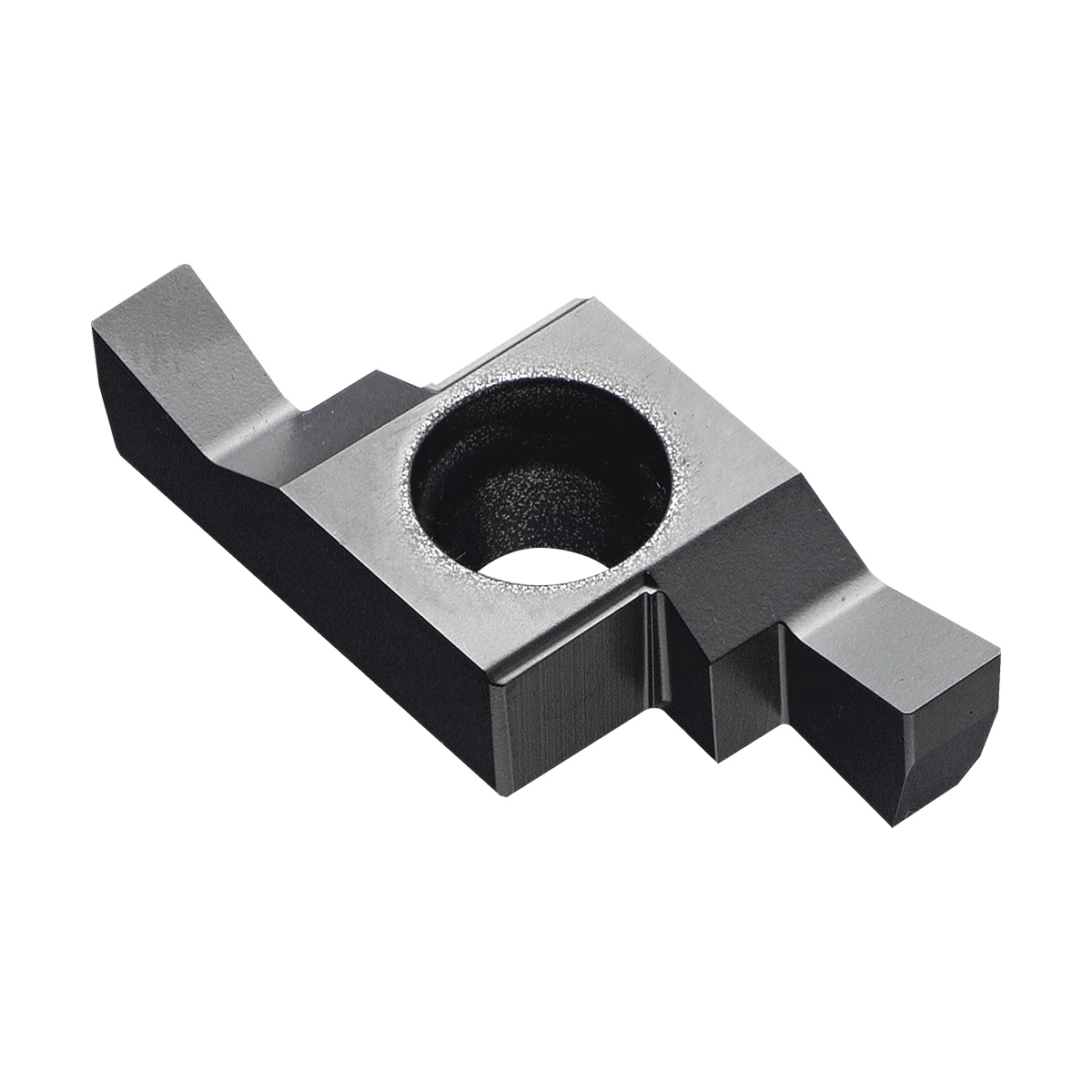

GEL300020ETN6020 GROOVING INSERT

GEL300020ETN6020 GROOVING INSERT

KYOCTSQ17267 TSQ17267
31.89 / EA
http://schema.org/OutOfStock
GEL300020ETN6020 GROOVING INSERT
  • Corner Radius: 0.2mm
  • Cutting Width: 3mm
  • Hand Direction: Left Hand
  • Insert Size: #300020
  • Insert Style: GE
  • Length: 21.66mm
  • Material: Cermet
  • Maximum Depth of Cut Decimal Inch: 0.177
  • Maximum Depth of Cut Metric: 4.5
  • Series: SIGE
  • Surface Treatment: UNCOATED
  • Type: 2-Cutting Edge Metric
  • ANSI Code: GEL300020ETN6020
  • Chipbreaker: E
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Hole Diameter: 4.4mm
  • ISO Code: GEL300-020E
  • Manufacturer Grade: TN6020
  • Manufacturer Name: KYOCERA Precision Tools
  • Material Grade: P, M
  • Rake: Positive
  • Thickness: 5.56mm
  • Width: 9.54mm
QTY
Add to List
  • Application
  • Item Features
  • Standards
For first choice cermet for steel and stainless steel cutting and internal grooving
  • Super micro-grain cermet with excellent wear resistance and toughness
  • Without full radius
ECCN: EAR99
