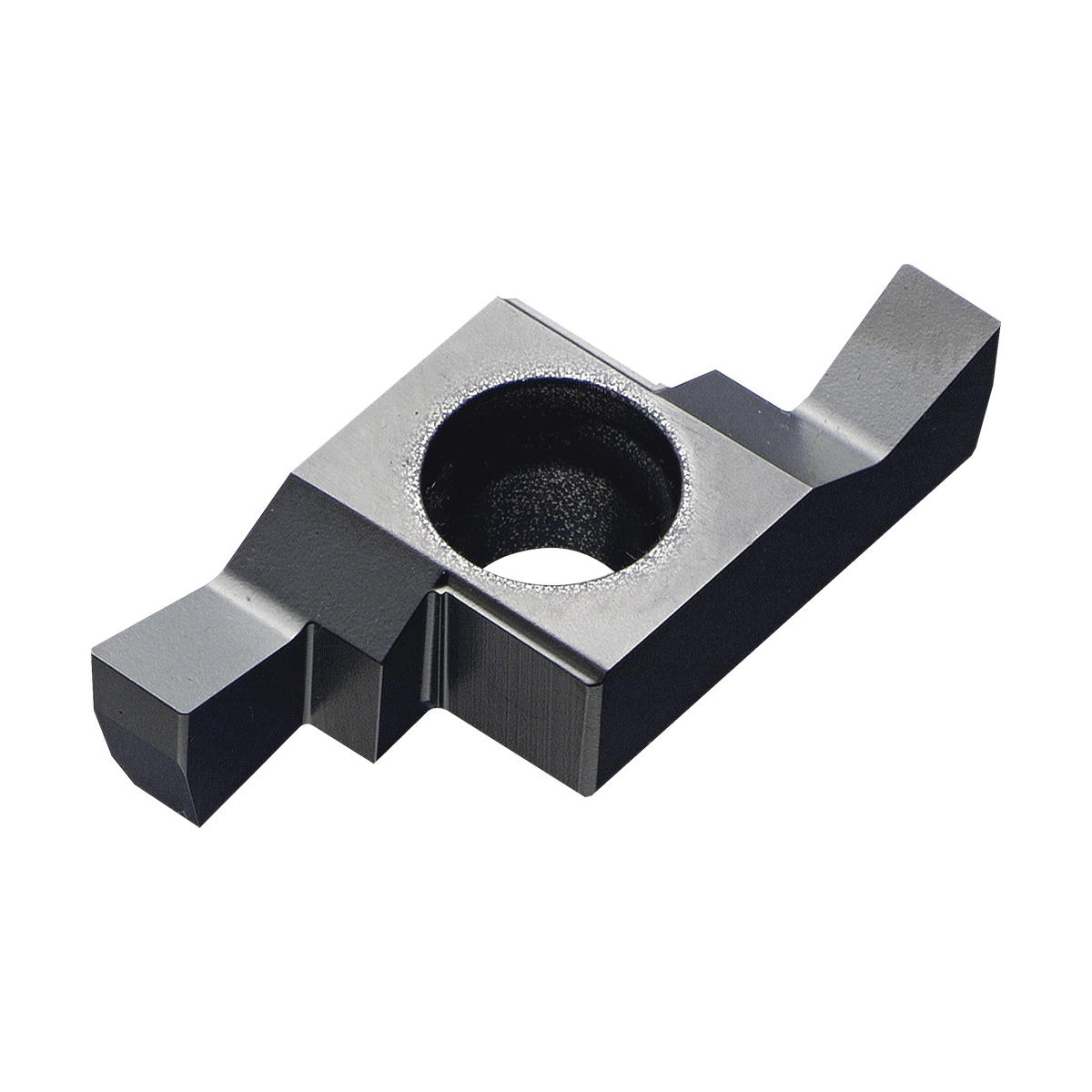

GER100005CTN6020 GROOVING INSERT

GER100005CTN6020 GROOVING INSERT

KYOCTSQ16950 TSQ16950
30.31 / EA
http://schema.org/OutOfStock
GER100005CTN6020 GROOVING INSERT
  • Corner Radius: 0.05mm
  • Cutting Width: 1mm
  • Hand Direction: Right Hand
  • Insert Size: #100005
  • Insert Style: GE
  • Length: 11.48mm
  • Material: Cermet
  • Maximum Depth of Cut Decimal Inch: 0.098
  • Maximum Depth of Cut Metric: 2.5
  • Series: SIGE
  • Surface Treatment: UNCOATED
  • Type: 2-Cutting Edge Metric
  • ANSI Code: GER100005CTN6020
  • Chipbreaker: C
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Hole Diameter: 2.8mm
  • ISO Code: GER100-005C
  • Manufacturer Grade: TN6020
  • Manufacturer Name: KYOCERA Precision Tools
  • Material Grade: P, M
  • Rake: Positive
  • Thickness: 4.05mm
  • Width: 5.8mm
QTY
Add to List
  • Application
  • Item Features
  • Standards
For first choice cermet for steel and stainless steel cutting and internal grooving
  • Super micro-grain cermet with excellent wear resistance and toughness
  • Without full radius
ECCN: EAR99
