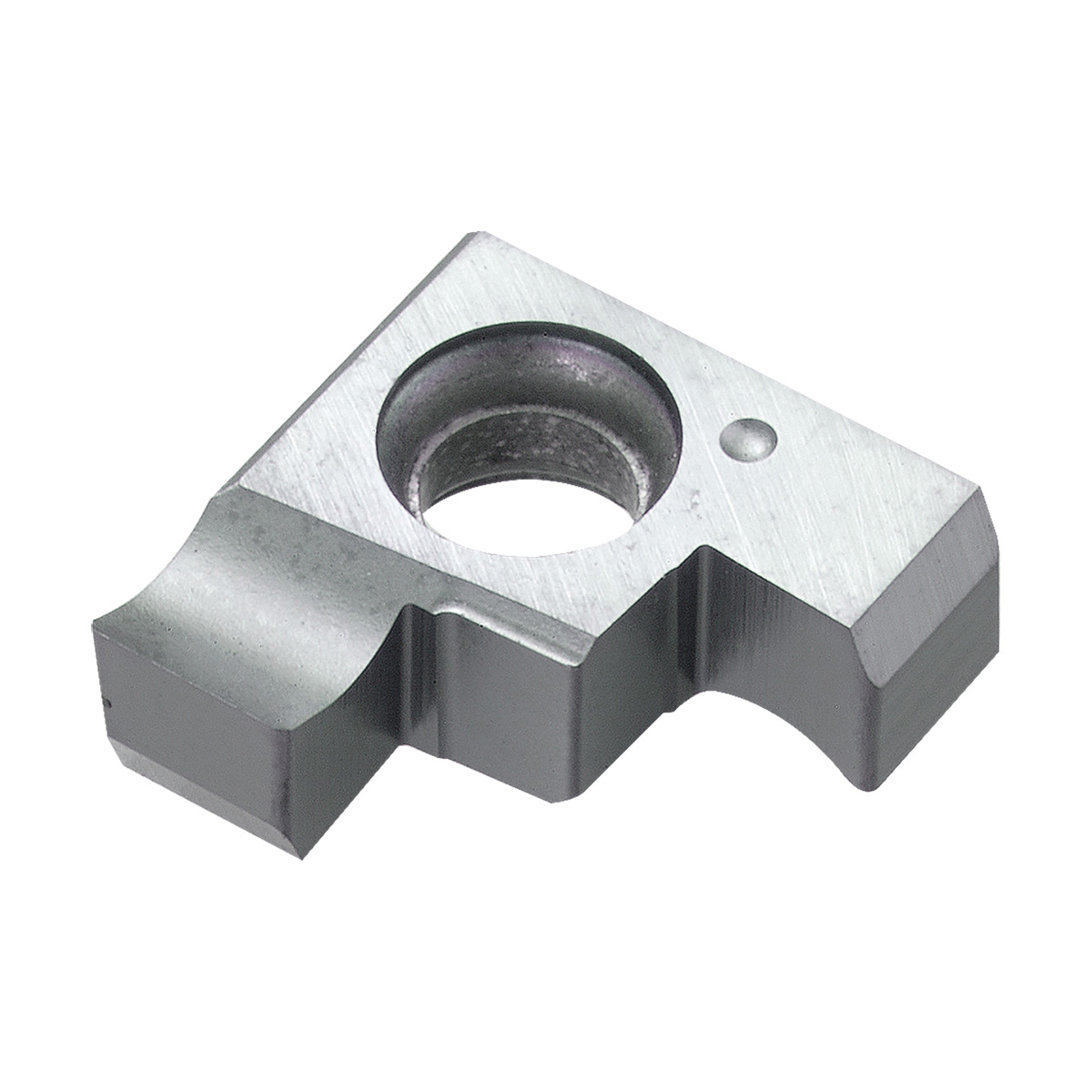

GER120005ATN6020 GROOVING INSERT

GER120005ATN6020 GROOVING INSERT

KYOCTSQ16710 TSQ16710
32.40 / EA
http://schema.org/OutOfStock
GER120005ATN6020 GROOVING INSERT
  • Corner Radius: 0.05mm
  • Cutting Width: 1.2mm
  • Hand Direction: Right Hand
  • Insert Size: #120005
  • Insert Style: GE
  • Length: 6.5mm
  • Material: Cermet
  • Maximum Depth of Cut Decimal Inch: 0.059
  • Maximum Depth of Cut Metric: 1.5
  • Series: SIGE
  • Surface Treatment: TiCN Coated/Uncoated
  • Type: 2-Cutting Edge
  • ANSI Code: GER120005ATN6020
  • Chipbreaker: A
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Hole Diameter: 2.5mm
  • ISO Code: GER120-005A
  • Manufacturer Grade: TN6020
  • Manufacturer Name: KYOCERA Precision Tools
  • Material Grade: P, M
  • Rake: Positive
  • Thickness: 2.58mm
QTY
Add to List
  • Application
  • Item Features
  • Standards
Internal Grooving Applications
  • Insert for internal grooving
  • Super micro-grain cermet with excellent wear resistance and toughness
  • First choice cermet for steel and stainless steel cutting
  • Without full radius
ECCN: EAR99|PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
