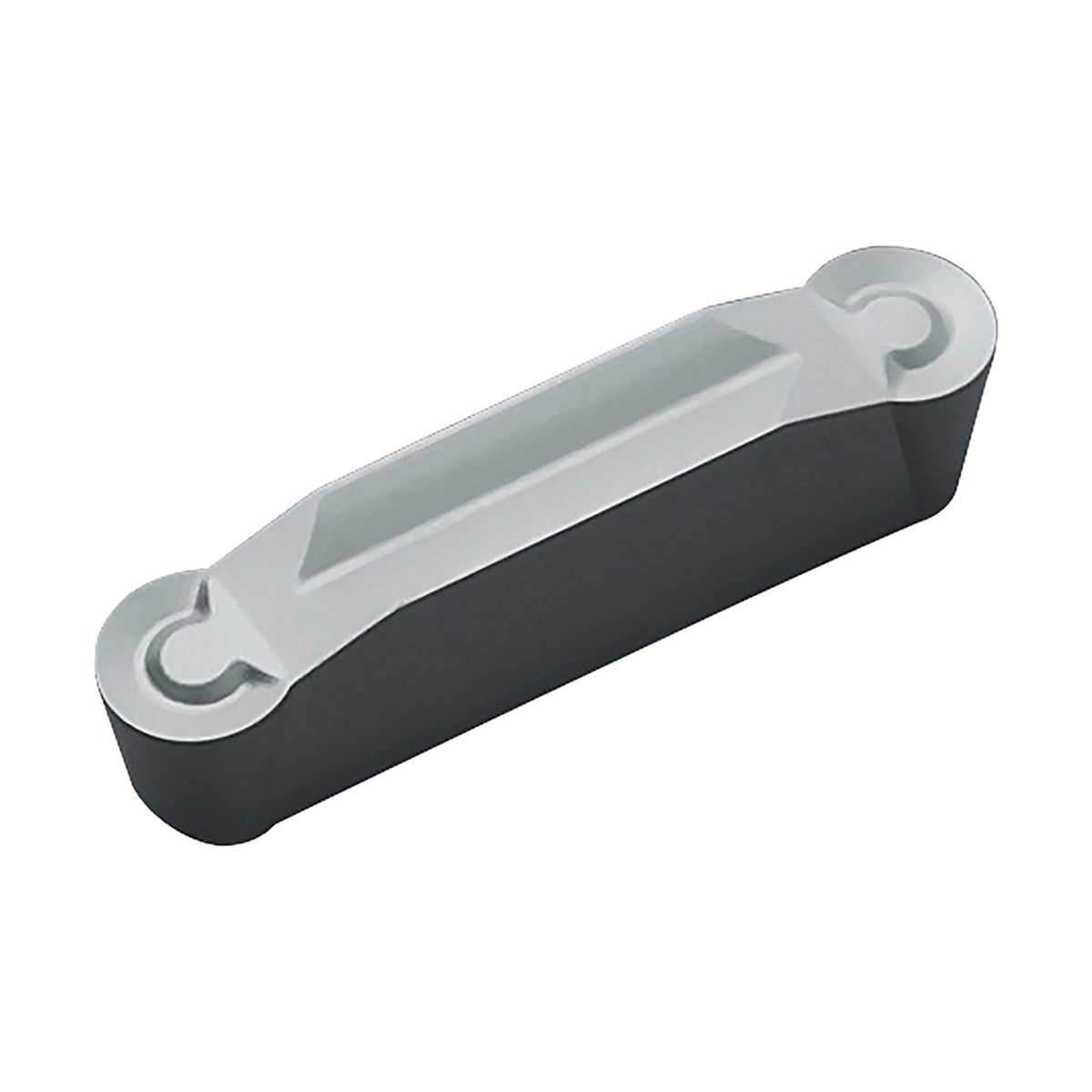

GMM3020150RTN90 GROOVING INSERT

GMM3020150RTN90 GROOVING INSERT

KYOCTSO13010 TSO13010
26.81 / EA
http://schema.org/OutOfStock
GMM3020150RTN90 GROOVING INSERT
  • Corner Radius: 1.5mm
  • Cutting Width: 3mm
  • Hand Direction: Neutral
  • Insert Size: #3020150
  • Insert Style: GMM
  • Length: 20mm
  • Material: Cermet
  • Maximum Depth of Cut Decimal Inch: 0.787
  • Maximum Depth of Cut Metric: 20.0
  • Series: KGM
  • Surface Treatment: UNCOATED
  • Type: 2-Cutting Edge
  • ANSI Code: GMM3020150RTN90
  • Chipbreaker: R
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • ISO Code: GMM3020-150R
  • Manufacturer Grade: TN90
  • Manufacturer Name: KYOCERA Precision Tools
  • Material Grade: P, M
  • Rake: Positive
  • Thickness: 4.3mm
QTY
Add to List
  • Application
  • Item Features
  • Standards
Copying Applications
  • Insert for full-R, copying
  • Sharp-cutting oriented/precision class/full-R/copying
  • Cermet with great surface finish eliminates many secondary operations
  • For grooving and cut-off of steel
  • Without hole
