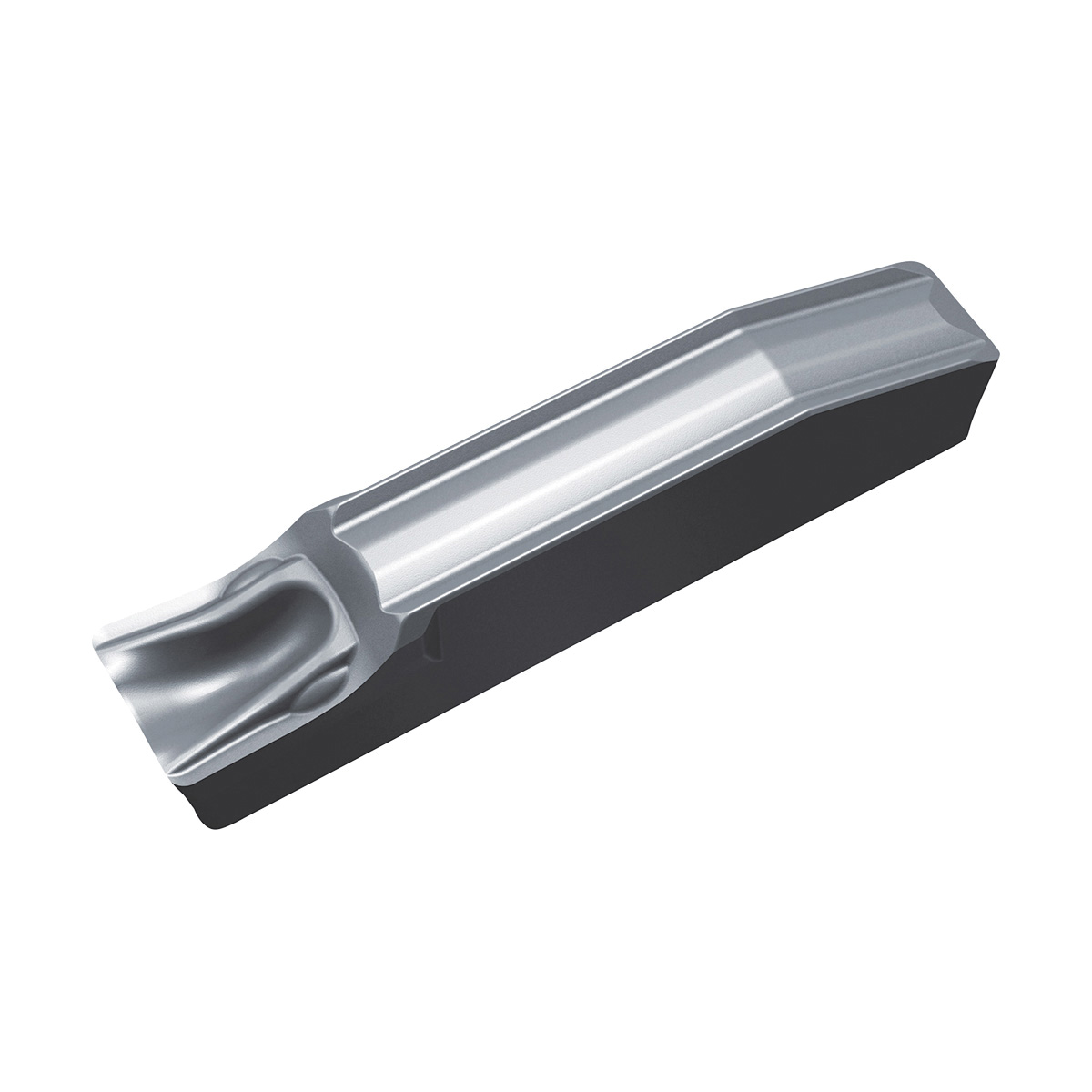

GDFMS4020N040DMTN90 GROOVING INSERT

GDFMS4020N040DMTN90 GROOVING INSERT

KYOCTSO10844 TSO10844
12.83 / EA
http://schema.org/OutOfStock
GDFMS4020N040DMTN90 GROOVING INSERT
  • Corner Radius: 0.4mm
  • Cutting Width: 4mm
  • Hand Direction: Neutral
  • Insert Size: #4020
  • Insert Style: GDFMS
  • Length: 20mm
  • Material: Cermet
  • Maximum Depth of Cut Decimal Inch: 0.984
  • Maximum Depth of Cut Metric: 25.0
  • Series: KGD
  • Surface Treatment: UNCOATED
  • Type: 1-Cutting Edge
  • ANSI Code: GDFMS4020N040DMTN90
  • Chipbreaker: DM
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • ISO Code: GDFMS4020N040DMTN90
  • Manufacturer Grade: TN90
  • Manufacturer Name: KYOCERA Precision Tools
  • Material Grade: P, M
  • Rake: Positive
  • Thickness: 4.5mm
QTY
Add to List
  • Application
  • Item Features
  • Standards
Deep Face Grooving, Face Grooving and Traversing Applications
  • Insert for deep grooving, traversing
  • Cermet with great surface finish eliminates many secondary operations
  • For grooving and cut-off of steel
  • Without hole and full radius
ECCN: EAR99|PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
