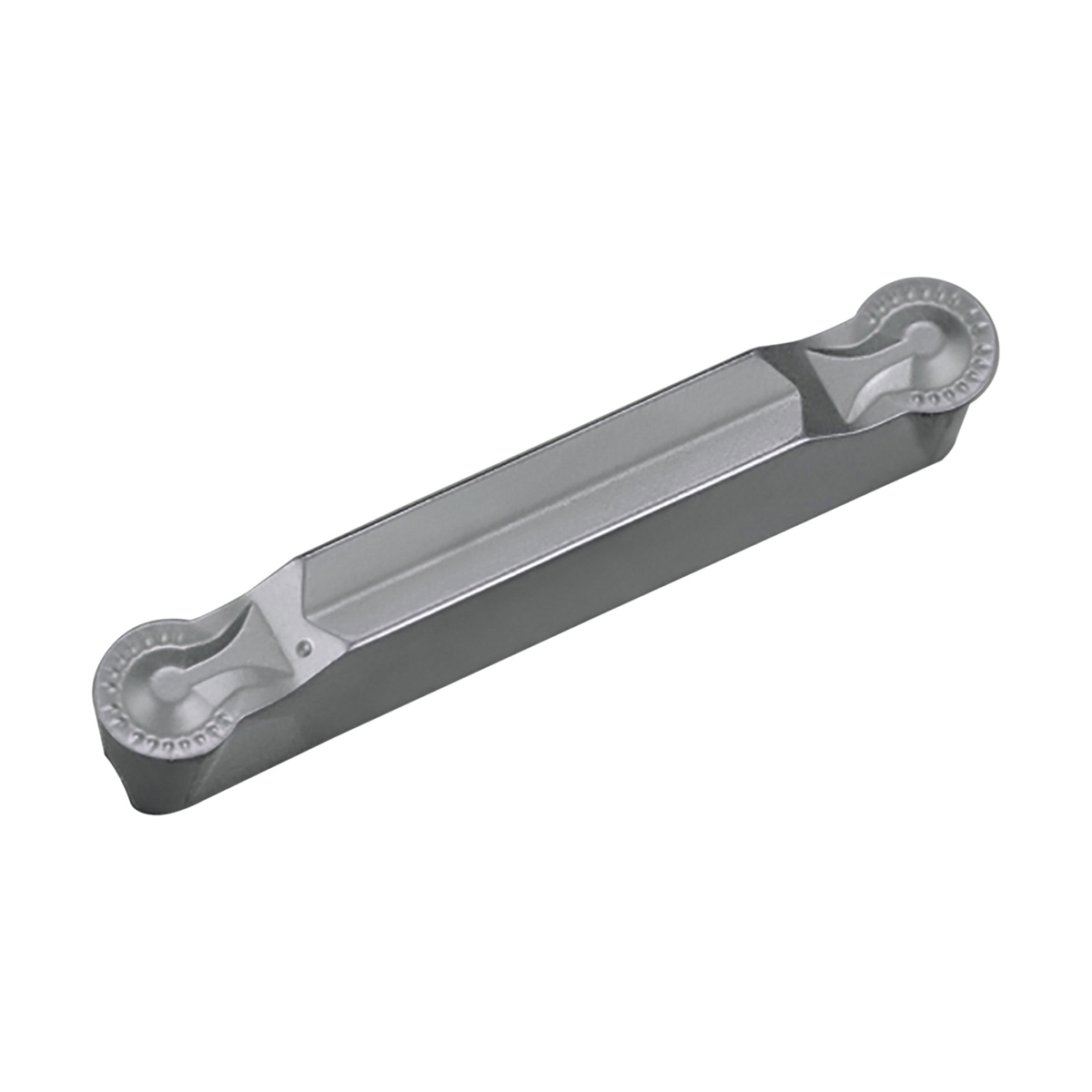

GDM3020N150RCMTN90 GROOVING INSERT

GDM3020N150RCMTN90 GROOVING INSERT

KYOCTSO10750 TSO10750
17.70 / EA
http://schema.org/OutOfStock
GDM3020N150RCMTN90 GROOVING INSERT
  • Corner Radius: 1.5mm
  • Cutting Width: 3mm
  • Hand Direction: Neutral
  • Insert Size: #3020
  • Insert Style: GDM
  • Length: 20mm
  • Material: Cermet
  • Maximum Depth of Cut Decimal Inch: 1.004
  • Maximum Depth of Cut Metric: 25.5
  • Series: KGD
  • Surface Treatment: UNCOATED
  • Type: 2-Cutting Edge
  • ANSI Code: GDM3020N150RCMTN90
  • Chipbreaker: CM
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • ISO Code: GDM3020N150RCMTN90
  • Manufacturer Grade: TN90
  • Manufacturer Name: KYOCERA Precision Tools
  • Material Grade: P, M
  • Rake: Positive
  • Thickness: 4.3mm
QTY
Add to List
  • Application
  • Item Features
  • Standards
Copying Applications
  • Insert for full-R, copying
  • Cermet with great surface finish eliminates many secondary operations
  • For grooving and cut-off of steel
  • Without hole
