GVF L300B TC40 GROOVING INSERT

GVF L300B TC40 GROOVING INSERT

KYOCTSM04075 TSM04075
29.54 / EA
http://schema.org/OutOfStock

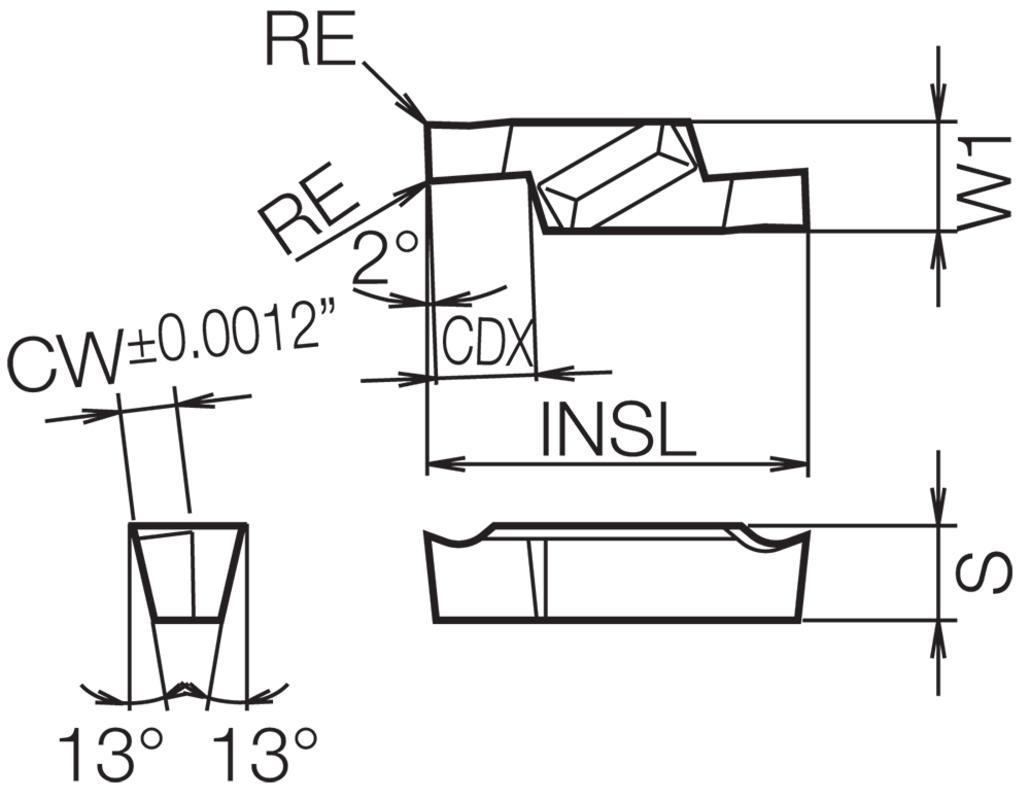

GVF L300B TC40 GROOVING INSERT
  • Corner Radius: 0.2 mm
  • Cutting Width: 3 mm
  • Hand Direction: Left Hand
  • Insert Size: #300
  • Insert Style: GVF
  • Length: 20 mm
  • Material: Cermet
  • Maximum Depth of Cut Decimal Inch: 0.189
  • Maximum Depth of Cut Metric: 4.8
  • Series: GVF
  • Surface Treatment: UNCOATED
  • Type: 2-Cutting Metric
  • ANSI Code: GVFL300BTC40
  • Chipbreaker: B
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • ISO Code: GVFL300B
  • Manufacturer Grade: TC40
  • Manufacturer Name: KYOCERA Precision Tools
  • Material Grade: P, K
  • Rake: Positive
  • Thickness: 5 mm
QTY
Add to List
  • Application
  • Item Features
  • Standards
For grooving and threading of steel and face grooving
  • Good balance of wear resistance and toughness
  • Without hole and full radius
ECCN: EAR99
