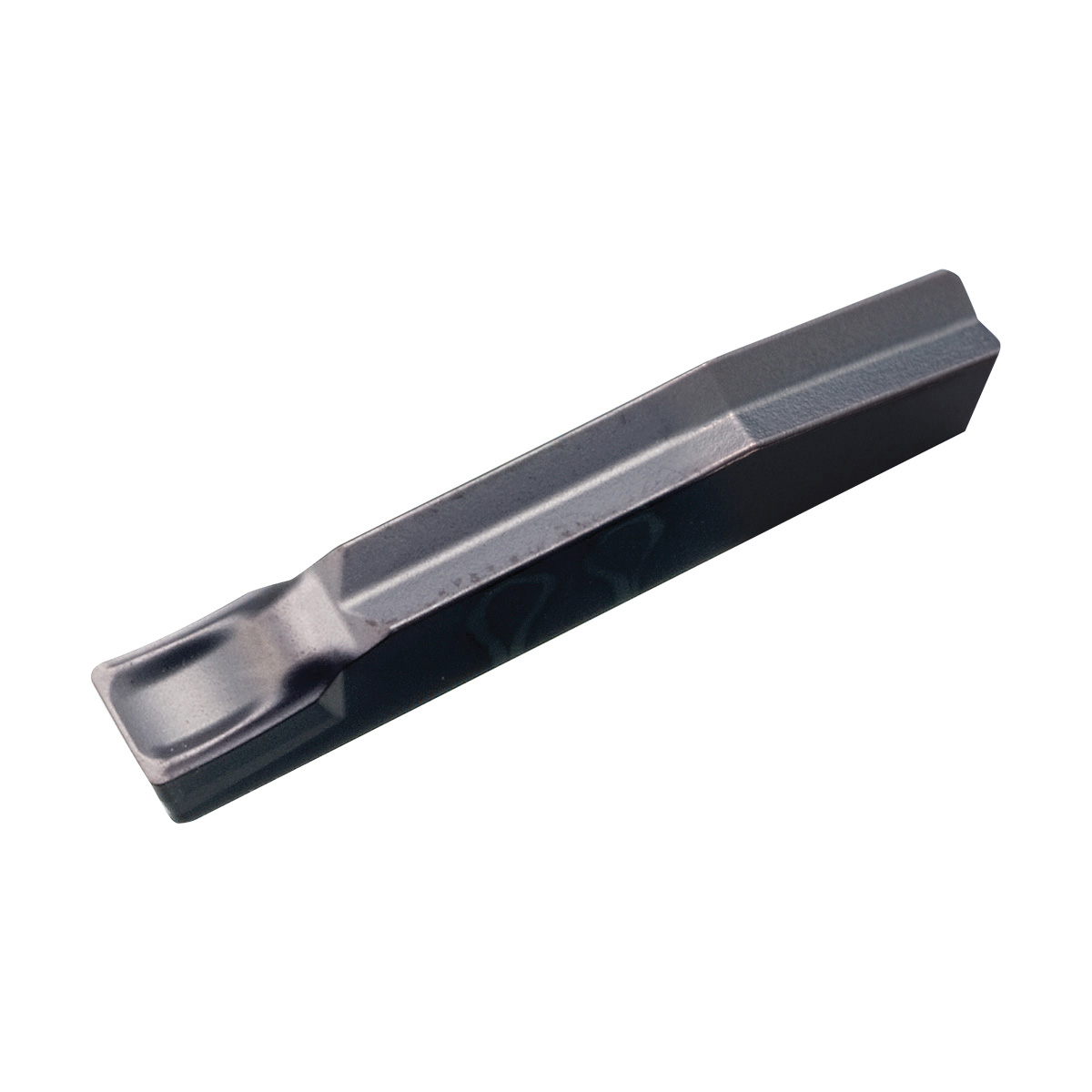

GDMS2020N020PHPR1535 GROOVING INSERT
GDMS2020N020PHPR1535 GROOVING INSERT
KYOCTLC10696
TLC10696
16.89
/ EA
http://schema.org/OutOfStock
/Product/KYOCTLC10696
- Corner Radius: 0.2mm
- Cutting Width: 2mm
- Hand Direction: Neutral
- Insert Size: #2020
- Insert Style: GDMS
- Length: 20mm
- Material: Carbide
- Maximum Depth of Cut Decimal Inch: 0.669
- Maximum Depth of Cut Metric: 17.0
- Series: KGD
- Surface Treatment: PVD-MEGACOAT NANO
- Type: 1-Cutting Edge
- ANSI Code: GDMS2020N020PHPR1535
- Chipbreaker: PH
- Country of Origin: US|JP|CN|KR
- Has Attributes: Yes
- Has Image: Yes
- ISO Code: GDMS2020N-020PH
- Manufacturer Grade: PR1535
- Manufacturer Name: KYOCERA Precision Tools
- Material Grade: S, M
- Rake: Positive
- Thickness: 4.3mm
- Application
- Item Features
- Standards
Cut-Off and External Grooving Applications
- Insert for external grooving, cut-off
- High feed/one edge
- Stabilized turning operations and long tool life with MEGACOAT NANO coating technology
- PVD for titanium alloy and precipitation hardened stainless steel
- Without hole and full radius
- https://youtu.be/vUo4G4g-5Hc
ECCN: EAR99|PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
