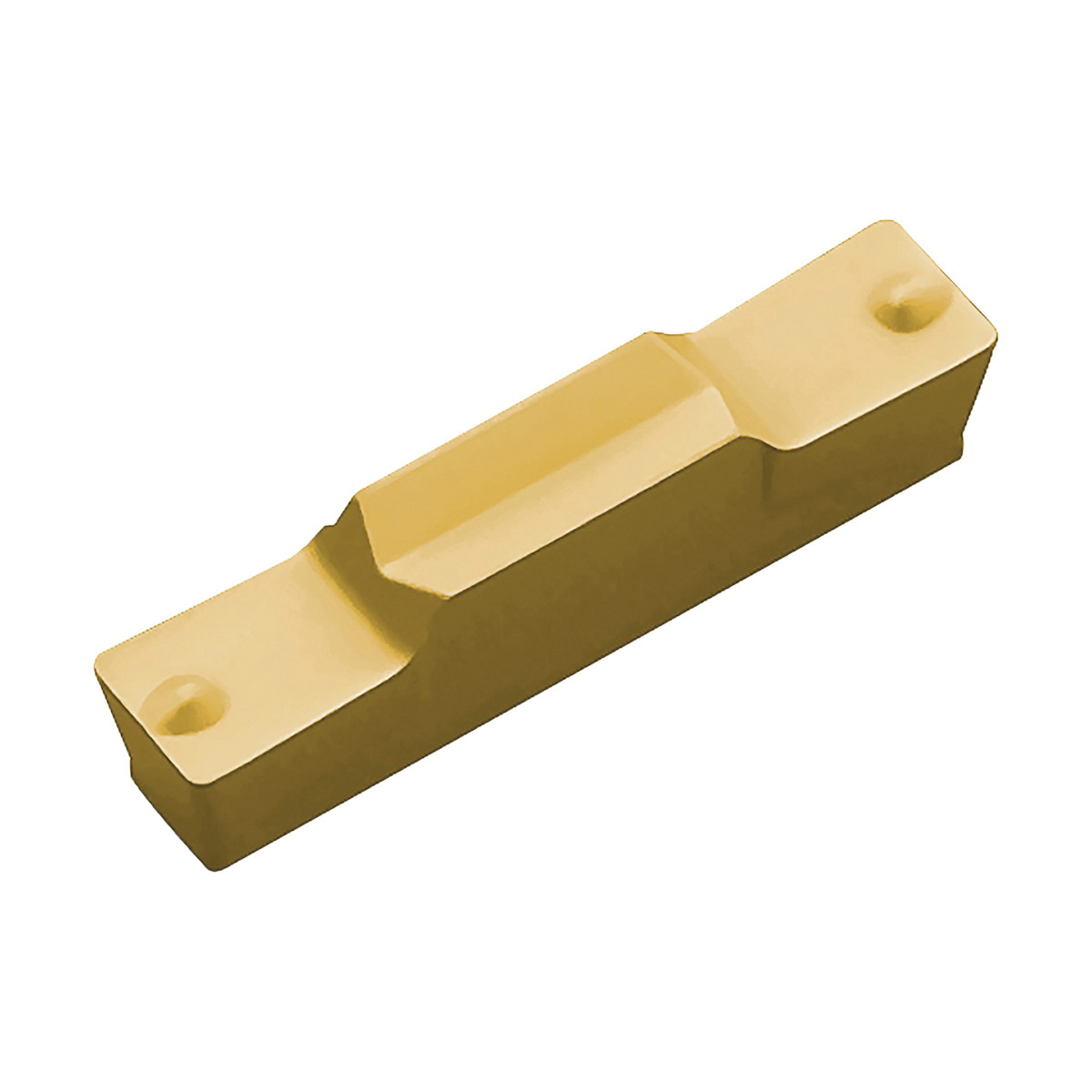

GMM3020040MSCR9025 GROOVING INSERT
GMM3020040MSCR9025 GROOVING INSERT
KYOCTKW12952
TKW12952
28.19
/ EA
http://schema.org/OutOfStock
/Product/KYOCTKW12952
- Corner Radius: 0.4mm
- Cutting Width: 3mm
- Hand Direction: Neutral
- Insert Size: #3020040
- Insert Style: GMM
- Length: 20mm
- Material: Carbide
- Maximum Depth of Cut Decimal Inch: 0.787
- Maximum Depth of Cut Metric: 20.0
- Series: KGM
- Surface Treatment: CVD-TiCN/TiN Coated
- Type: 2-Cutting Edge
- ANSI Code: GMM3020040MSCR9025
- Chipbreaker: MS
- Country of Origin: US|JP|CN|KR
- Has Attributes: Yes
- Has Image: Yes
- ISO Code: GMM3020-040MS
- Manufacturer Grade: CR9025
- Manufacturer Name: KYOCERA Precision Tools
- Material Grade: P
- Rake: Positive
- Thickness: 4.3mm
- Application
- Item Features
- Standards
External Grooving and Traversing Applications
- Insert for external grooving, traversing
- Sharp cutting oriented/M-class
- Improved toughness and stability due to specialized carbide substrate with plastic deformation resistance
- Cut-off, grooving and multi-function cutting of steel
- Without hole and full radius
