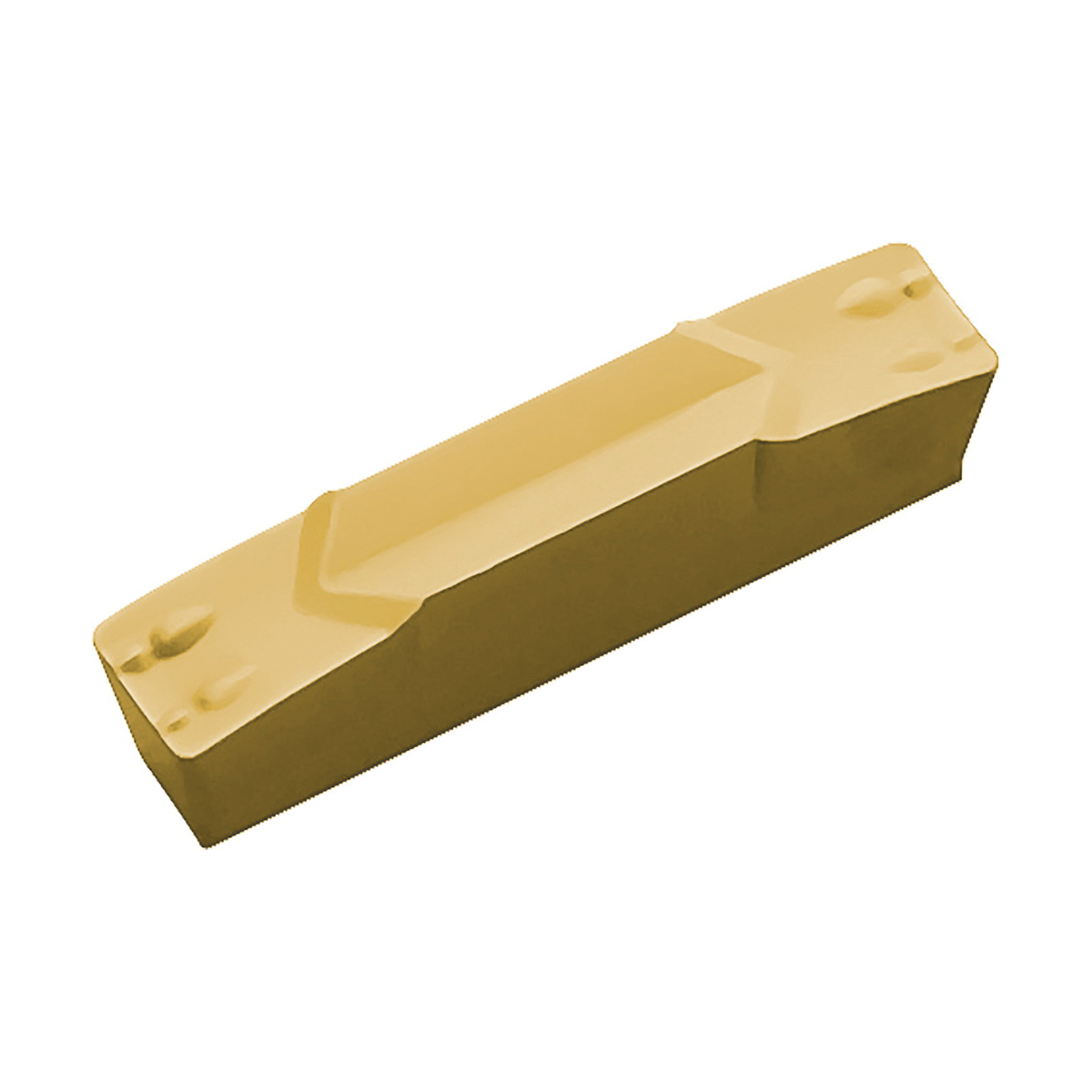

GMM5020080MWCR9025 GROOVING INSERT

GMM5020080MWCR9025 GROOVING INSERT

KYOCTKW12830 TKW12830
29.38 / EA
http://schema.org/OutOfStock
GMM5020080MWCR9025 GROOVING INSERT
  • Corner Radius: 0.8mm
  • Cutting Width: 5mm
  • Hand Direction: Neutral
  • Insert Size: #5020080
  • Insert Style: GMM
  • Length: 20mm
  • Material: Carbide
  • Series: KGM
  • Surface Treatment: CVD-TiCN/TiN Coated
  • Type: 2-Cutting Metric
  • ANSI Code: GMM5020080MWCR9025
  • Chipbreaker: MW
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • ISO Code: GMM5020-080MW
  • Manufacturer Grade: CR9025
  • Manufacturer Name: KYOCERA Precision Tools
  • Material Grade: P
  • Rake: Positive
  • Thickness: 4.3mm
QTY
Add to List
  • Application
  • Item Features
  • Standards
For cut-off, grooving, multi-function cutting of steel and traversing
  • Chip control oriented/M class
  • Improved toughness and stability due to specialized carbide substrate with plastic deformation resistance
  • Without hole and full radius
ECCN: EAR99
