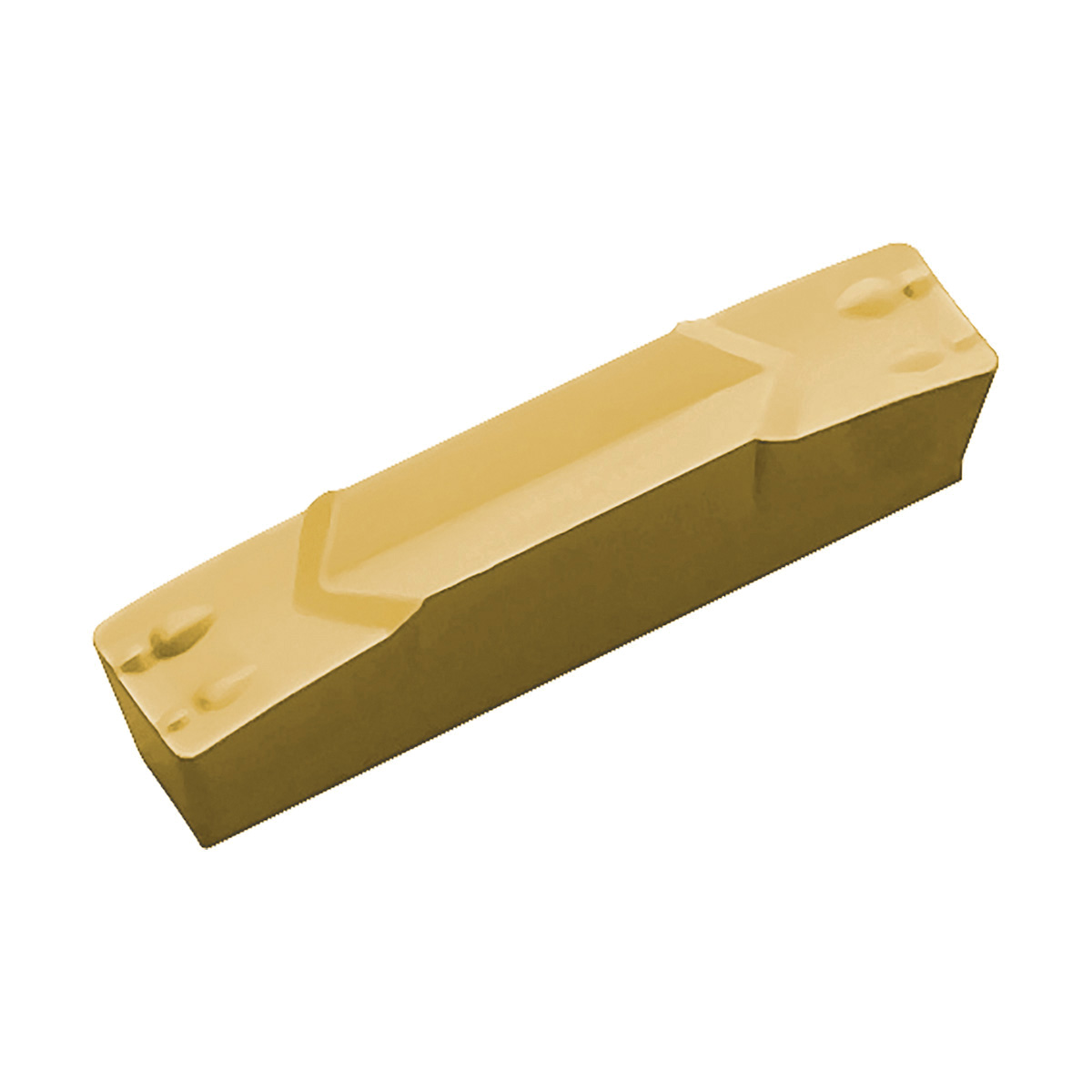

GMM2420020MWCR9025 GROOVING INSERT

GMM2420020MWCR9025 GROOVING INSERT

KYOCTKW12800 TKW12800
28.19 / EA
http://schema.org/OutOfStock
GMM2420020MWCR9025 GROOVING INSERT
  • Corner Radius: 0.2mm
  • Cutting Width: 2.4mm
  • Hand Direction: Neutral
  • Insert Size: #2420020
  • Insert Style: GMM
  • Length: 20mm
  • Material: Carbide
  • Maximum Depth of Cut Decimal Inch: 0.669
  • Maximum Depth of Cut Metric: 17.0
  • Series: KGM
  • Surface Treatment: CVD-TiCN/TiN Coated
  • Type: 2-Cutting Edge
  • ANSI Code: GMM2420020MWCR9025
  • Chipbreaker: MW
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • ISO Code: GMM2420-020MW
  • Manufacturer Grade: CR9025
  • Manufacturer Name: KYOCERA Precision Tools
  • Material Grade: P
  • Rake: Positive
  • Thickness: 4.3mm
QTY
Add to List
  • Application
  • Item Features
  • Standards
External Grooving and Traversing Applications
  • Insert for grooving, traversing
  • Chip control oriented/M-class
  • Improved toughness and stability due to specialized carbide substrate with plastic deformation resistance
  • Cut-off, grooving and multi-function cutting of steel
  • Without hole and full radius
ECCN: EAR99|PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
