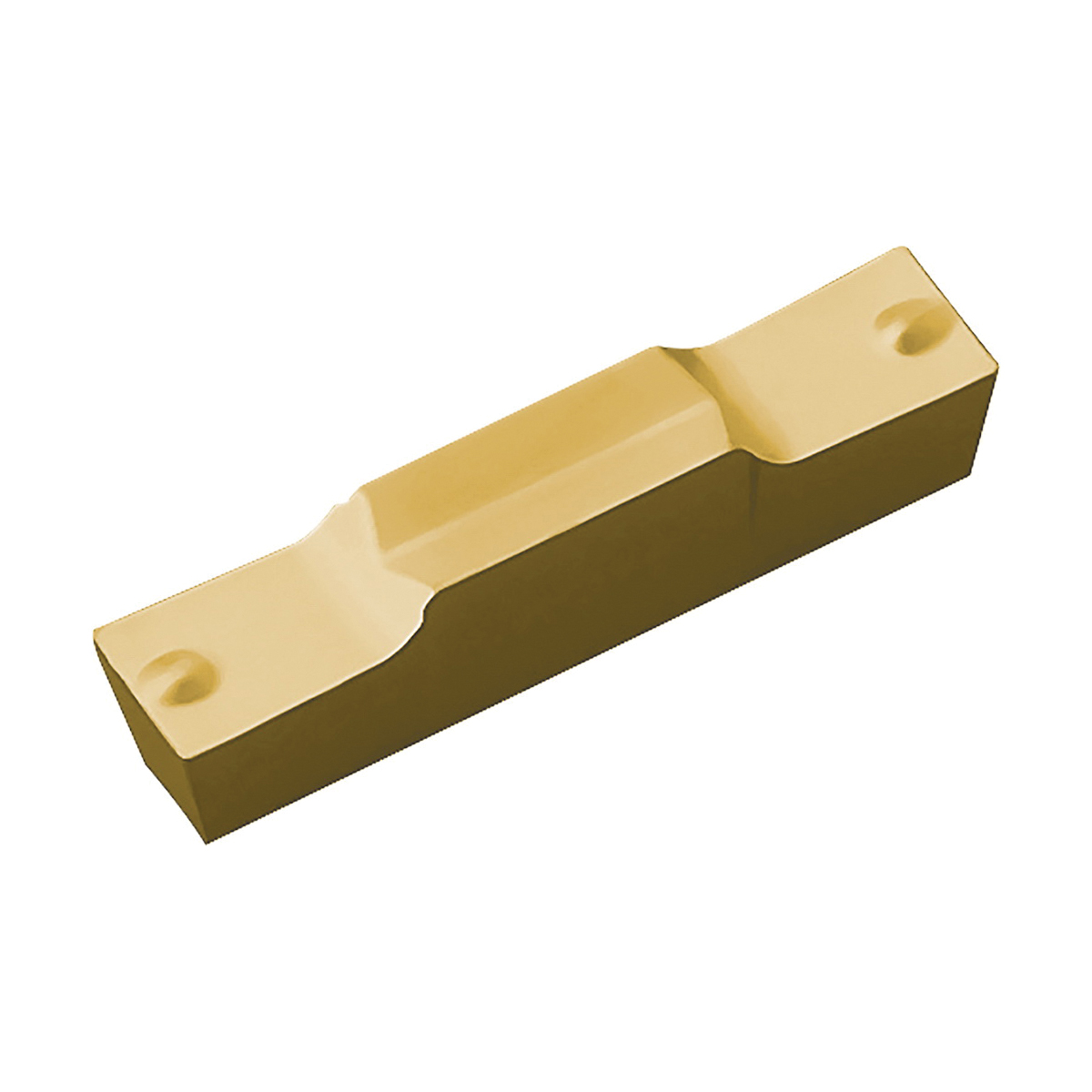

GMG4020080MSCR9025 GROOVING INSERT

GMG4020080MSCR9025 GROOVING INSERT

KYOCTKW12053 TKW12053
35.56 / EA
http://schema.org/OutOfStock
GMG4020080MSCR9025 GROOVING INSERT
  • Corner Radius: 0.8mm
  • Cutting Width: 4mm
  • Hand Direction: Neutral
  • Insert Size: #4020080
  • Insert Style: GMG
  • Length: 20mm
  • Material: Carbide
  • Series: KGM
  • Surface Treatment: CVD-TiCN/TiN Coated
  • Type: 2-Cutting Metric
  • ANSI Code: GMG4020080MSCR9025
  • Chipbreaker: MS
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • ISO Code: GMG4020-080MS
  • Manufacturer Grade: CR9025
  • Manufacturer Name: KYOCERA Precision Tools
  • Material Grade: P
  • Rake: Positive
  • Thickness: 4.3mm
QTY
Add to List
  • Application
  • Item Features
  • Standards
For cut-off, grooving, multi-function cutting of steel, external grooving and traversing
  • Sharp cutting oriented, precision class
  • Improved toughness and stability due to specialized carbide substrate with plastic deformation resistance
  • Without hole and full radius
ECCN: EAR99
