KYOCERA PRECISION TOOLS

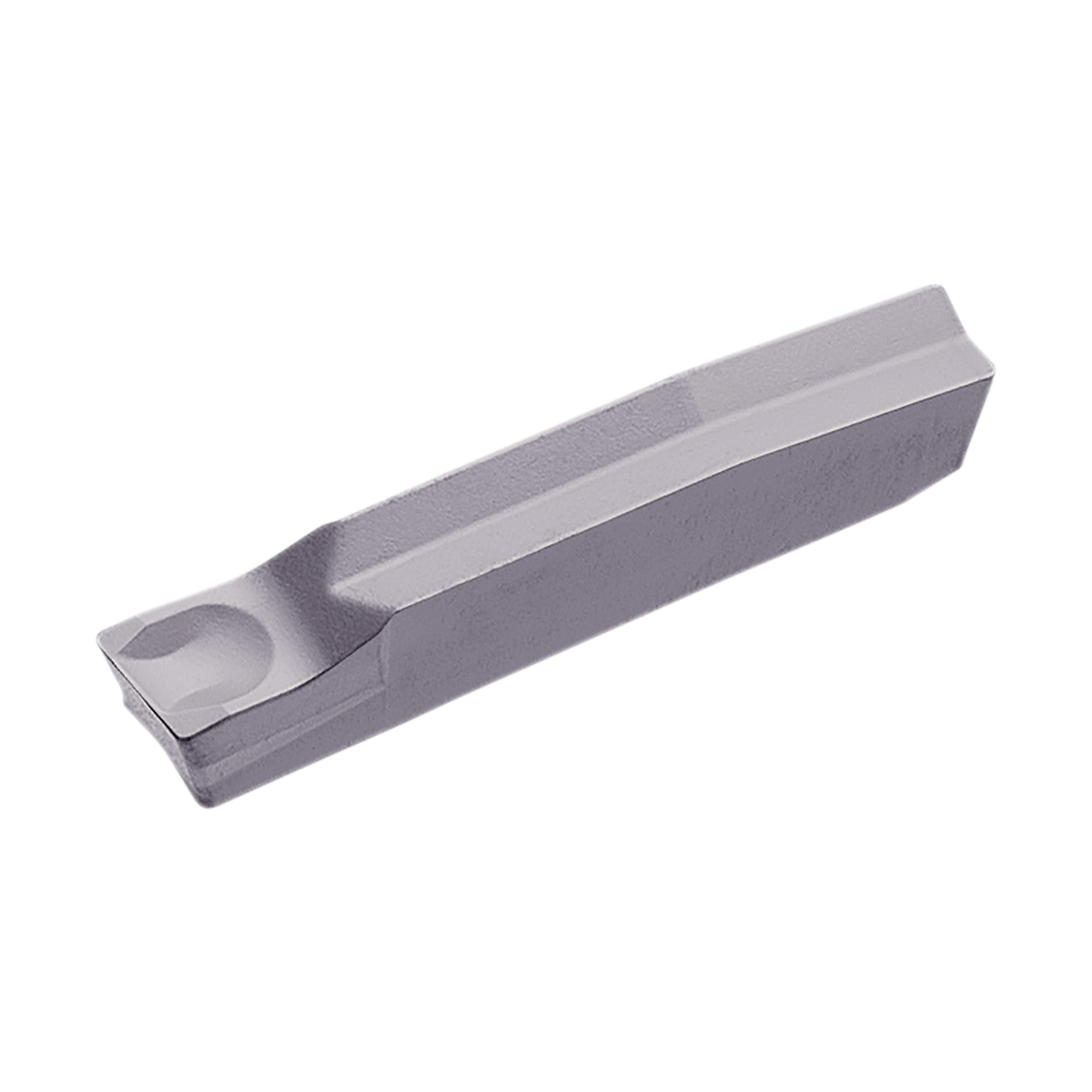

GMR4TK8DPR930 GROOVING INSERT

GMR4TK8DPR930 GROOVING INSERT

KYOCTKT13261 TKT13261
21.75 / EA
http://schema.org/OutOfStock
GMR4TK8DPR930 GROOVING INSERT
  • Corner Radius: 0.3mm
  • Cutting Width: 4mm
  • Hand Direction: Right Hand
  • Insert Size: #4
  • Insert Style: GM
  • Length: 20mm
  • Material: Carbide
  • Series: KGM
  • Surface Treatment: PVD-TiCN Coated
  • Type: 1-Cutting Metric
  • ANSI Code: GMR4TK8DPR930
  • Chipbreaker: TK
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • ISO Code: GMR4-TK-8D
  • Lead Angle: 8°
  • Manufacturer Grade: PR930
  • Manufacturer Name: KYOCERA Precision Tools
  • Material Grade: P, M
  • Rake: Positive
  • Thickness: 4.3mm
QTY
Add to List
  • Application
  • Item Features
  • Standards
For low cutting speed, precise cutting with sharp edge, deep grooving and cut-off
  • Cut-off/stability oriented/1 edge with lead angle
  • Hard TiCN base PVD coated super micro-grain carbide
  • Without hole and full radius
ECCN: EAR99
