KYOCERA PRECISION TOOLS

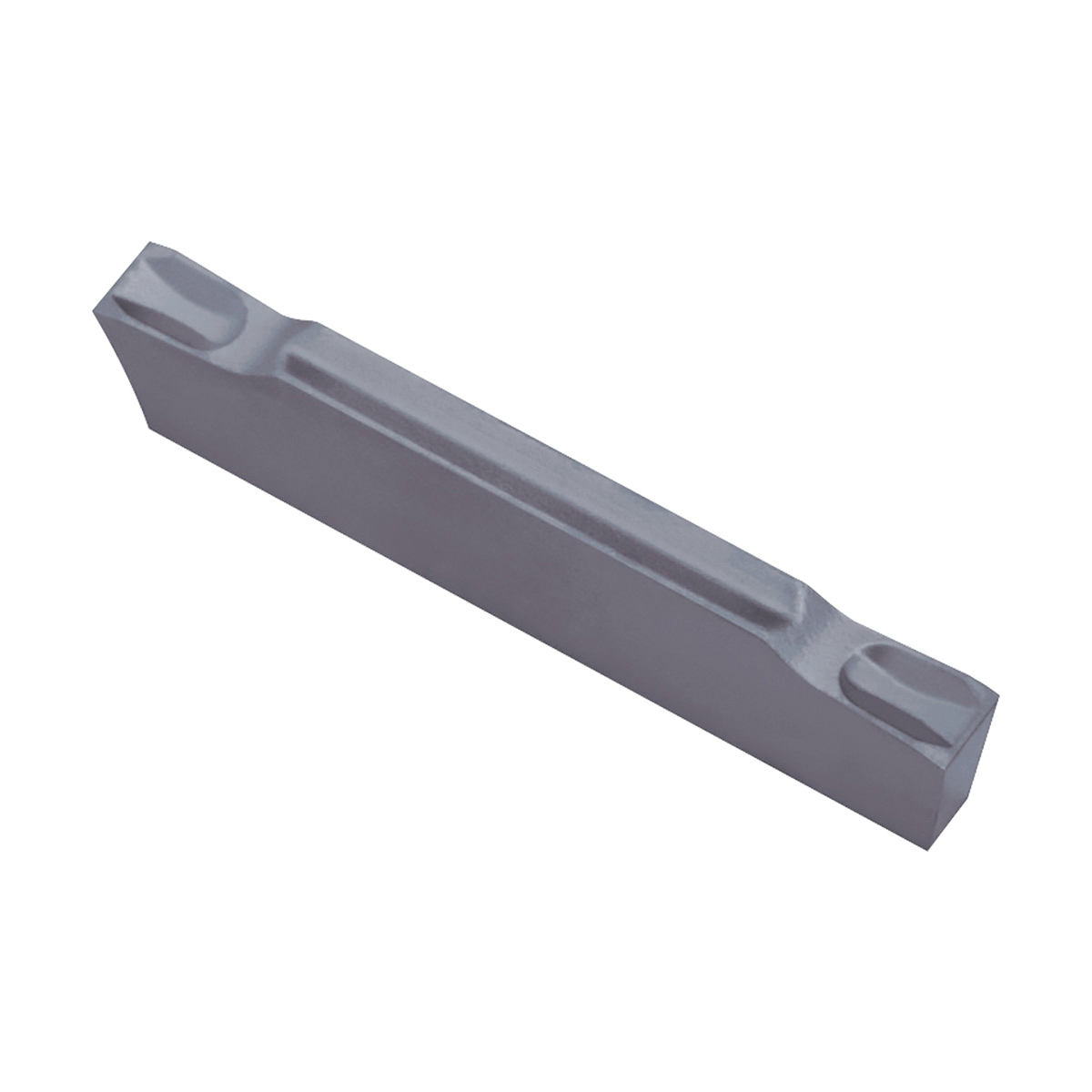

GMM2020LMT15DPR930 GROOVING INSERT

GMM2020LMT15DPR930 GROOVING INSERT

KYOCTKT12721 TKT12721
21.75 / EA
http://schema.org/OutOfStock
GMM2020LMT15DPR930 GROOVING INSERT
  • Cutting Width: 2mm
  • Hand Direction: Left Hand
  • Insert Size: #2020
  • Insert Style: GMM
  • Length: 20mm
  • Material: Carbide
  • Series: KGM
  • Surface Treatment: PVD-TiCN Coated
  • Type: 2-Cutting Metric
  • ANSI Code: GMM2020LMT15DPR930
  • Chipbreaker: MT
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • ISO Code: GMM2020L-MT-15D
  • Lead Angle: 15°
  • Manufacturer Grade: PR930
  • Manufacturer Name: KYOCERA Precision Tools
  • Material Grade: P, M
  • Rake: Positive
  • Thickness: 4.3mm
QTY
Add to List
  • Application
  • Item Features
  • Standards
For low cutting speed, precise cutting with sharp edge, deep grooving and cut-off
  • Cut-off/sharp cutting/oriented with lead angle
  • Hard TiCN base PVD coated super micro-grain carbide
  • Without hole and full radius
ECCN: EAR99
