KYOCERA PRECISION TOOLS

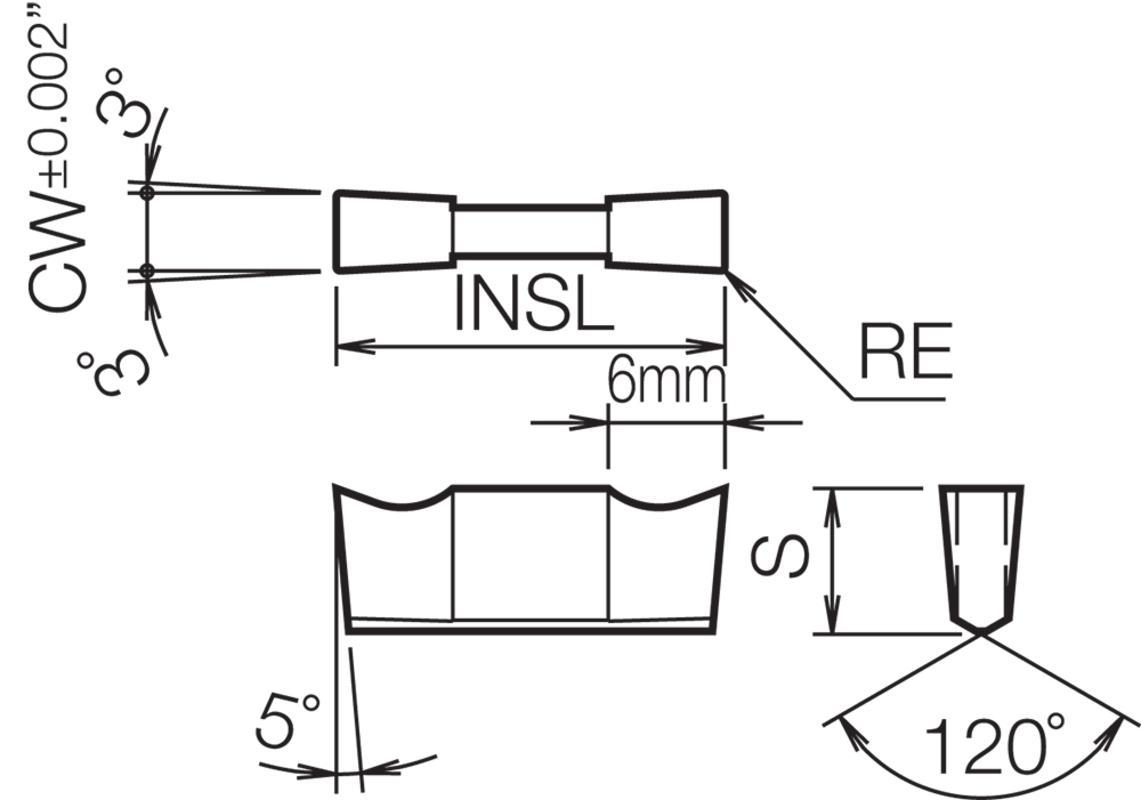

GH1002505PR930 GROOVING INSERT

GH1002505PR930 GROOVING INSERT

KYOCTKT07590 TKT07590
55.07 / EA
http://schema.org/OutOfStock
GH1002505PR930 GROOVING INSERT
  • Corner Radius: 0.5mm
  • Cutting Width: 10mm
  • Hand Direction: Neutral
  • Insert Size: #1002505
  • Insert Style: GH
  • Length: 25mm
  • Material: Carbide
  • Maximum Depth of Cut Decimal Inch: 0.669
  • Maximum Depth of Cut Metric: 17.0
  • Series: KGH
  • Surface Treatment: PVD-TiCN Coated
  • Type: 2-Cutting Edge
  • ANSI Code: GH1002505PR930
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • ISO Code: GH10025-05
  • Lead Angle: 120°
  • Manufacturer Grade: PR930
  • Manufacturer Name: KYOCERA Precision Tools
  • Material Grade: P, M
  • Rake: Positive
  • Thickness: 7.5mm
QTY
Add to List
  • Application
  • Item Features
  • Standards
External Deep Grooving and External Grooving Applications
  • Insert for external deep grooving
  • Ground chipbreaker
  • Hard TiCN base PVD coated super micro-grain carbide
  • Low cutting speed, precise cutting with sharp edge
  • Without hole and full radius
