KYOCERA PRECISION TOOLS

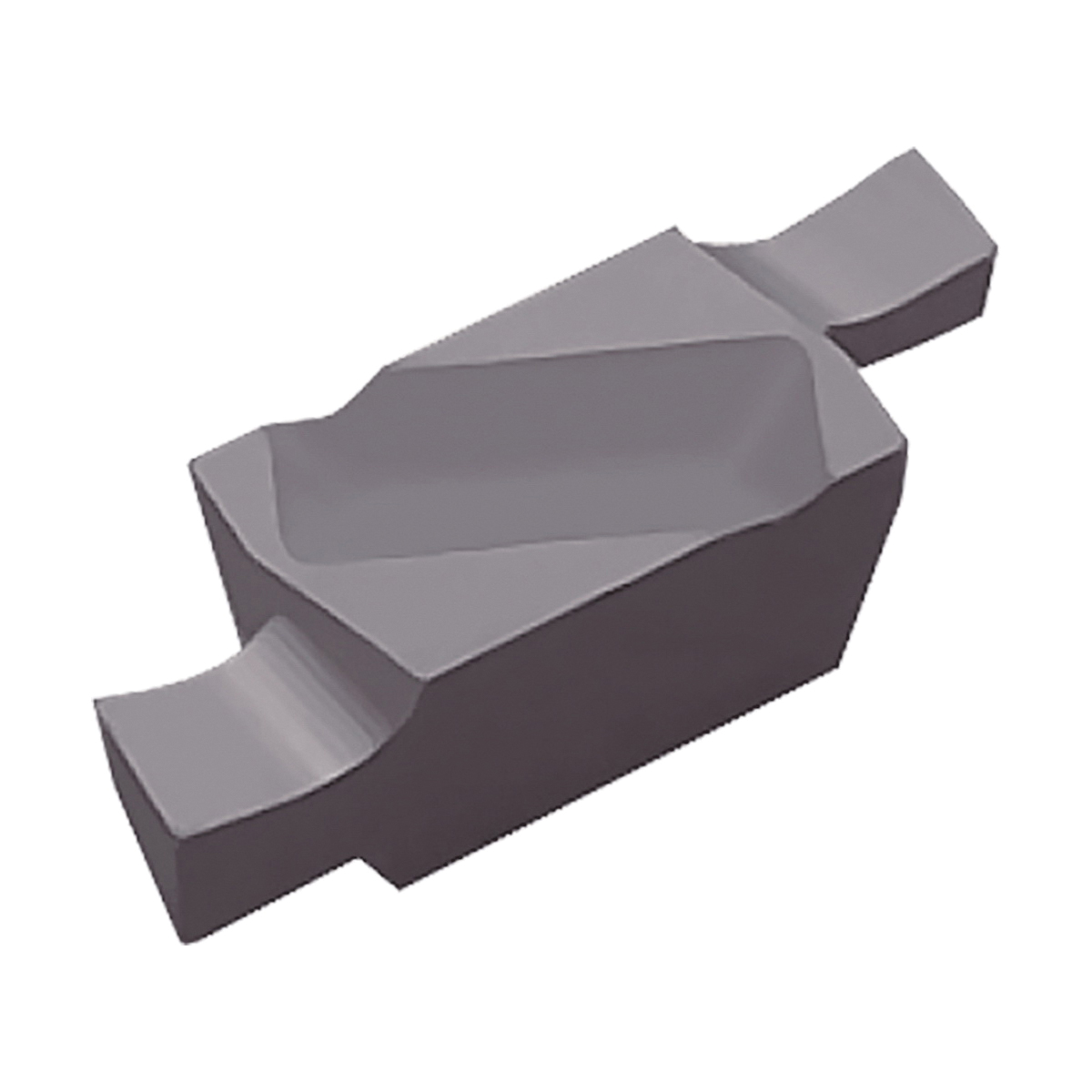

GVFR100AAPR930 GROOVING INSERT

GVFR100AAPR930 GROOVING INSERT

KYOCTKT02400 TKT02400
41.33 / EA
http://schema.org/OutOfStock
GVFR100AAPR930 GROOVING INSERT
  • Corner Radius: 0.05mm
  • Cutting Width: 1mm
  • Hand Direction: Right Hand
  • Insert Size: #100
  • Insert Style: GVF
  • Length: 12mm
  • Material: Carbide
  • Maximum Depth of Cut Decimal Inch: 0.087
  • Maximum Depth of Cut Metric: 2.2
  • Series: GVF
  • Surface Treatment: PVD-TiCN Coated
  • Type: 2-Cutting Metric
  • ANSI Code: GVFR100AAPR930
  • Chipbreaker: AA
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • ISO Code: GVFR100AA
  • Manufacturer Grade: PR930
  • Manufacturer Name: KYOCERA Precision Tools
  • Material Grade: P, M
  • Rake: Positive
  • Thickness: 4.5mm
QTY
Add to List
  • Application
  • Item Features
  • Standards
For low cutting speed, precise cutting with sharp edge and face grooving
  • Hard TiCN base PVD coated super micro-grain carbide
  • Without hole and full radius
ECCN: EAR99
