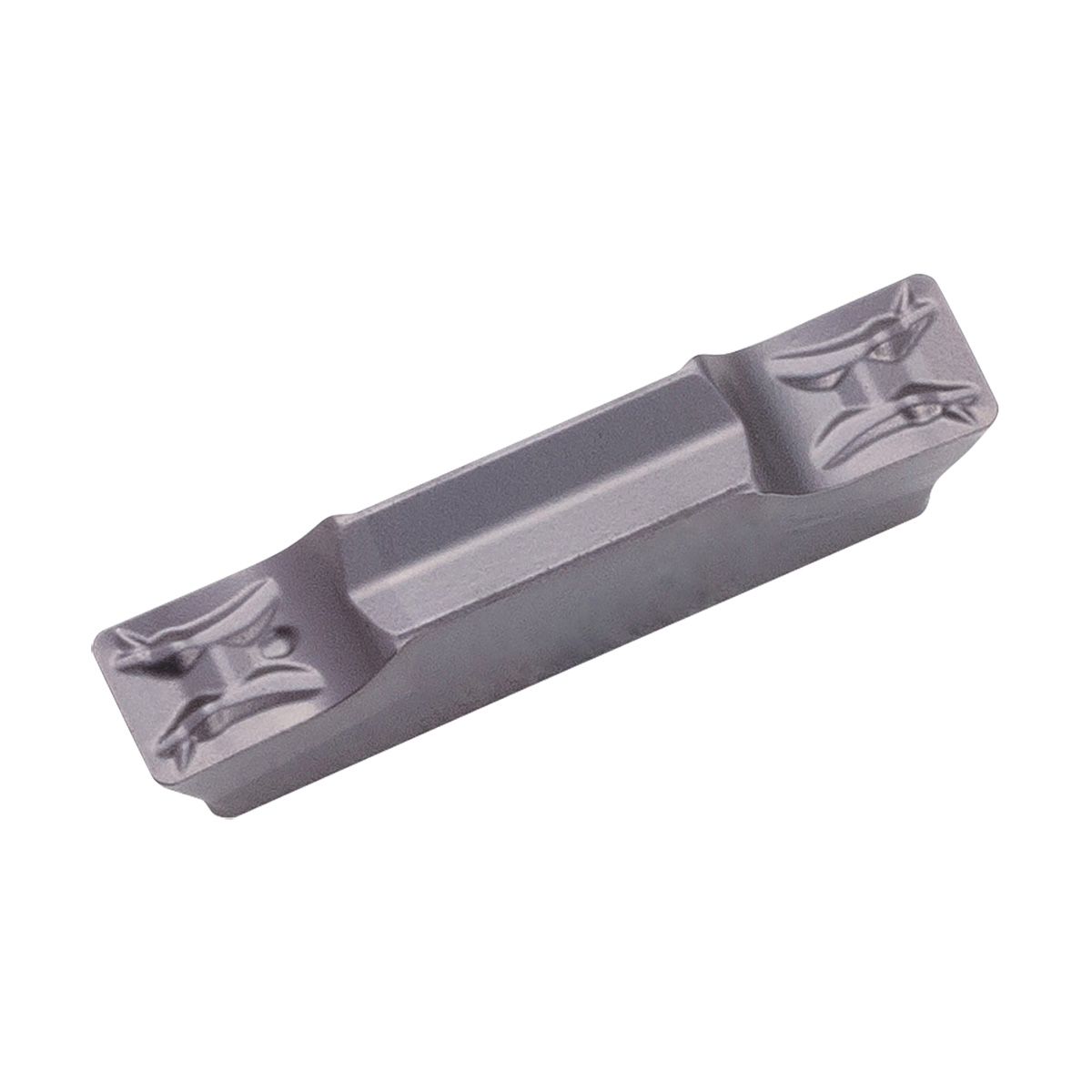

GDM2013N020GMIPR1215 GROOVING INSERT
GDM2013N020GMIPR1215 GROOVING INSERT
KYOCTKH10941
TKH10941
21.10
/ EA
http://schema.org/OutOfStock
/Product/KYOCTKH10941
- Corner Radius: 0.2mm
- Cutting Width: 2mm
- Hand Direction: Neutral
- Insert Size: #2013
- Insert Style: GDM
- Length: 13.5mm
- Material: Carbide
- Maximum Depth of Cut Decimal Inch: 0.276
- Maximum Depth of Cut Metric: 7.0
- Series: KGD
- Surface Treatment: PVD-MEGACOAT
- Type: 2-Cutting Edge
- ANSI Code: GDM2013N020GMIPR1215
- Chipbreaker: GMI
- Country of Origin: US|JP|CN|KR
- Has Attributes: Yes
- Has Image: Yes
- ISO Code: GDM2013N-020GMI
- Manufacturer Grade: PR1215
- Manufacturer Name: KYOCERA Precision Tools
- Material Grade: P, M
- Rake: Positive
- Thickness: 4.3mm
- Application
- Item Features
- Standards
Internal Grooving Applications
- Insert for internal grooving
- Superior wear and oxidation-resistant MEGACOAT on micro-grain carbide substrate
- Superior adhesion-resistant and long tool life for steel and stainless steel cutting
- Without hole and full radius
ECCN: EAR99|PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
