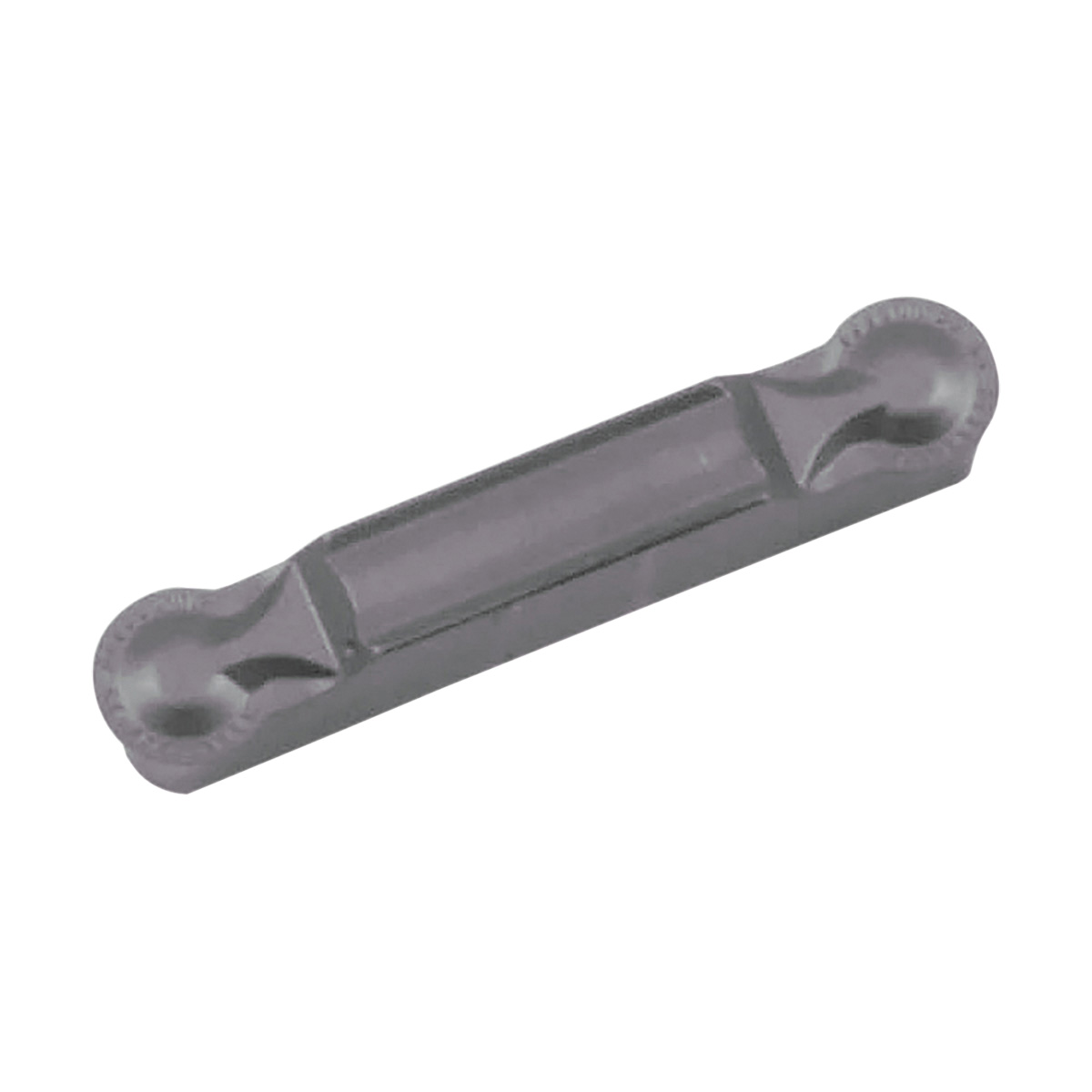

GDFM3020N150RCMPR1215 GROOVING INSERT

GDFM3020N150RCMPR1215 GROOVING INSERT

KYOCTKH10812 TKH10812
24.64 / EA
http://schema.org/OutOfStock
GDFM3020N150RCMPR1215 GROOVING INSERT
  • Corner Radius: 1.5mm
  • Cutting Width: 3mm
  • Hand Direction: Neutral
  • Insert Size: #3020
  • Insert Style: GDFM
  • Length: 20mm
  • Material: Carbide
  • Maximum Depth of Cut Decimal Inch: 0.984
  • Maximum Depth of Cut Metric: 25.0
  • Series: KGD
  • Surface Treatment: PVD-MEGACOAT
  • Type: 2-Cutting Edge
  • ANSI Code: GDFM3020N150RCMPR1215
  • Chipbreaker: CM
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • ISO Code: GDFM3020N-150R-CM
  • Manufacturer Grade: PR1215
  • Manufacturer Name: KYOCERA Precision Tools
  • Material Grade: P, M
  • Rake: Positive
  • Thickness: 4.3mm
QTY
Add to List
  • Application
  • Item Features
  • Standards
Face Grooving Applications
  • Insert for external grooving
  • Full radius
  • Superior wear and oxidation-resistant MEGACOAT on micro-grain carbide substrate
  • Superior adhesion-resistant and long tool life for steel and stainless steel cutting
  • Without hole
ECCN: EAR99|PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
