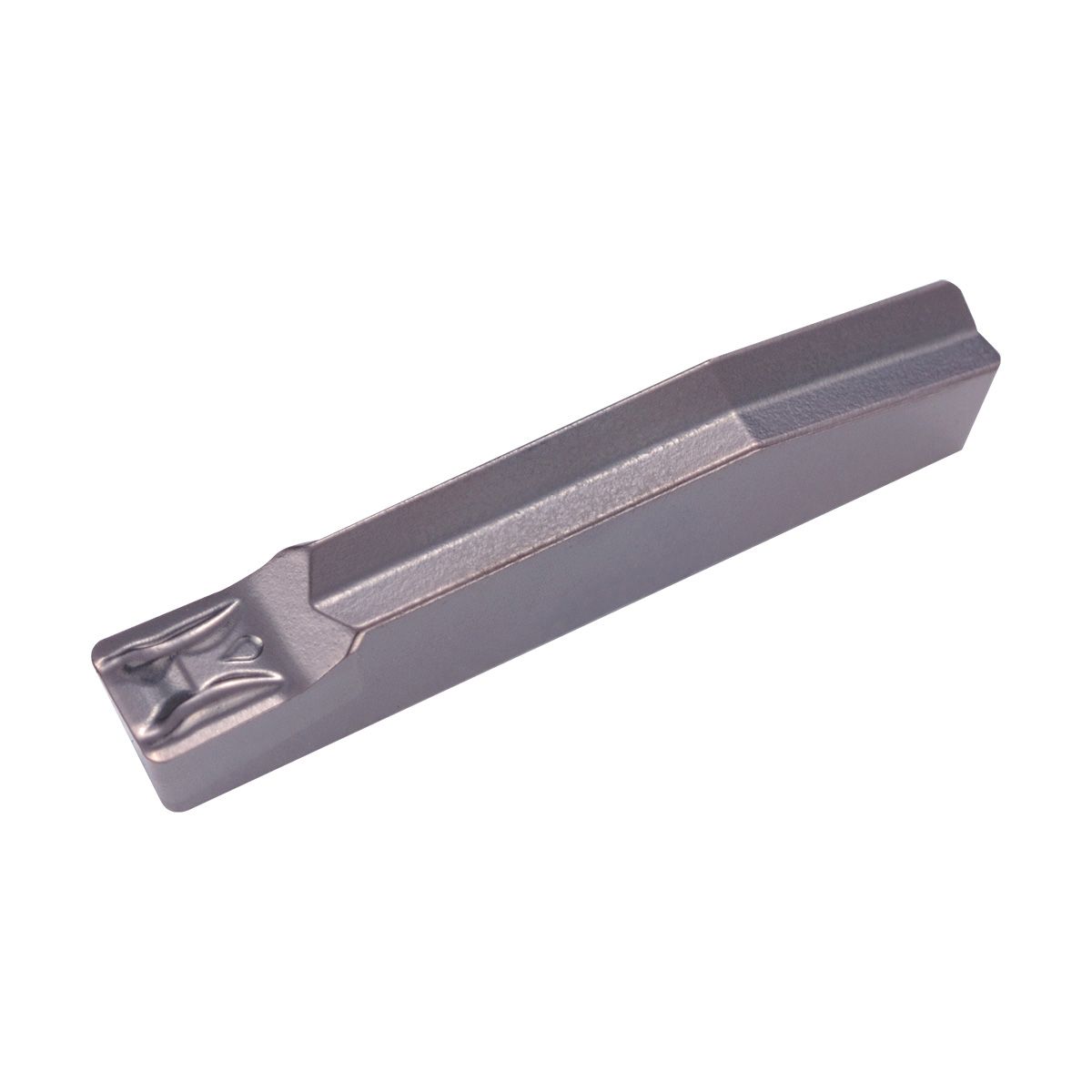

GDMS2220N020GMPR1215 GROOVING INSERT

GDMS2220N020GMPR1215 GROOVING INSERT

KYOCTKH10610 TKH10610
16.89 / EA
http://schema.org/OutOfStock
GDMS2220N020GMPR1215 GROOVING INSERT
  • Corner Radius: 0.2mm
  • Cutting Width: 2.2mm
  • Hand Direction: Neutral
  • Insert Size: #2220
  • Insert Style: GDMS
  • Length: 20mm
  • Material: Carbide
  • Maximum Depth of Cut Decimal Inch: 0.669
  • Maximum Depth of Cut Metric: 17.0
  • Series: KGD
  • Surface Treatment: PVD-MEGACOAT
  • Type: 1-Cutting Edge
  • ANSI Code: GDMS2220N020GMPR1215
  • Chipbreaker: GM
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • ISO Code: GDMS2220N020GMPR1215
  • Manufacturer Grade: PR1215
  • Manufacturer Name: KYOCERA Precision Tools
  • Material Grade: P, M
  • Rake: Positive
  • Thickness: 4.3mm
QTY
Add to List
  • Application
  • Item Features
  • Standards
External Grooving and Traversing Applications
  • Insert for external grooving, traversing
  • General purpose/one edge
  • Superior wear and oxidation-resistant MEGACOAT on micro-grain carbide substrate
  • Superior adhesion-resistant and long tool life for steel and stainless steel cutting
  • Without hole and full radius
