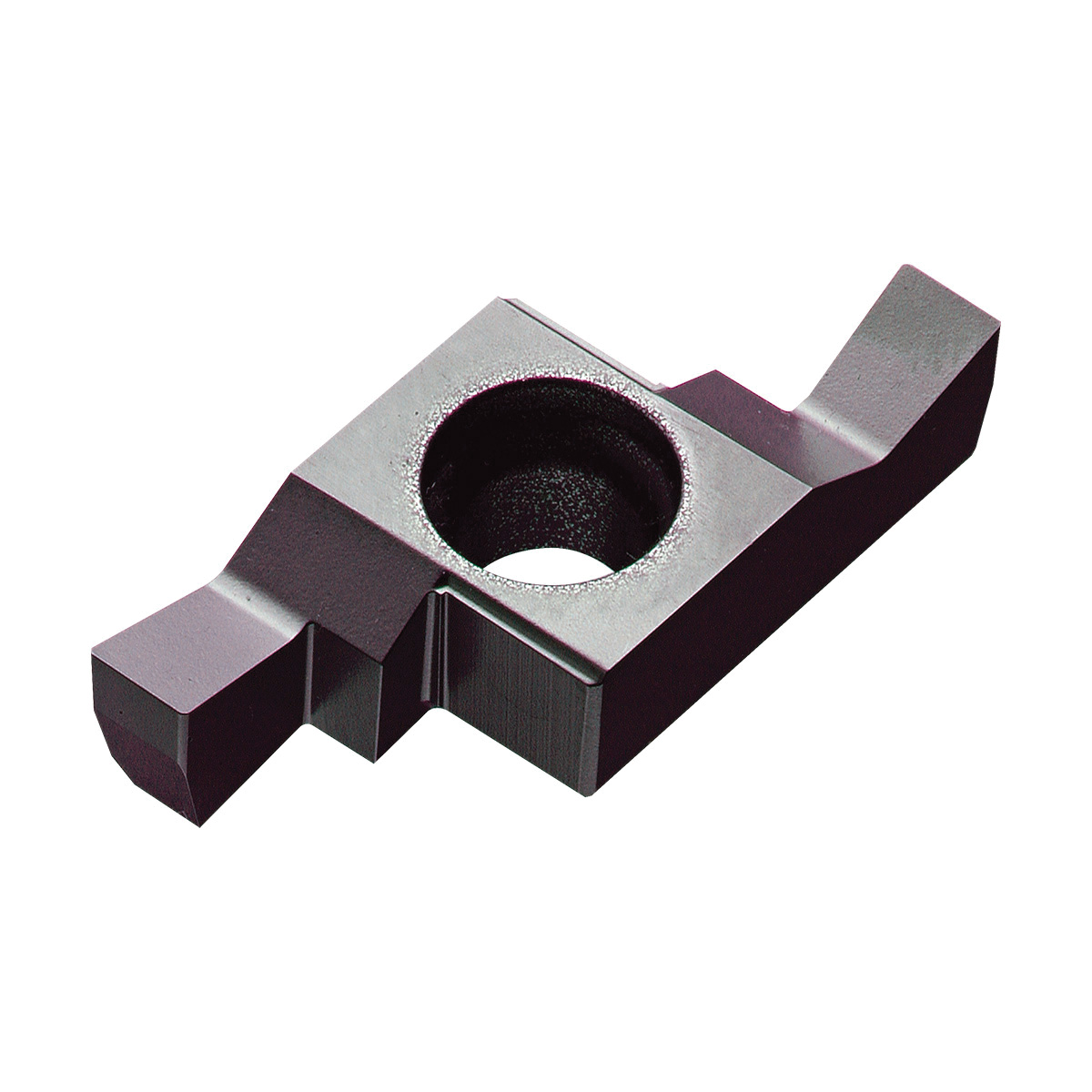

GER100005EPR1225 GROOVING INSERT

GER100005EPR1225 GROOVING INSERT

KYOCTKE17200 TKE17200
45.35 / EA
http://schema.org/OutOfStock
GER100005EPR1225 GROOVING INSERT
  • Corner Radius: 0.05mm
  • Cutting Width: 1mm
  • Hand Direction: Right Hand
  • Insert Size: #100005
  • Insert Style: GE
  • Length: 21.66mm
  • Material: Carbide
  • Maximum Depth of Cut Decimal Inch: 0.098
  • Maximum Depth of Cut Metric: 2.5
  • Series: SIGE
  • Surface Treatment: PVD-MEGACOAT
  • Type: 2-Cutting Edge
  • ANSI Code: GER100005EPR1225
  • Chipbreaker: E
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Hole Diameter: 4.4mm
  • ISO Code: GER100-005E
  • Manufacturer Grade: PR1225
  • Manufacturer Name: KYOCERA Precision Tools
  • Material Grade: P, M
  • Rake: Positive
  • Thickness: 5.56mm
QTY
Add to List
  • Application
  • Item Features
  • Standards
Internal Grooving Applications
  • Insert for internal grooving
  • Superior wear and oxidation-resistant MEGACOAT on micro-grain carbide substrate
  • Light interrupted to interrupted cutting of stainless steel
  • Without full radius
