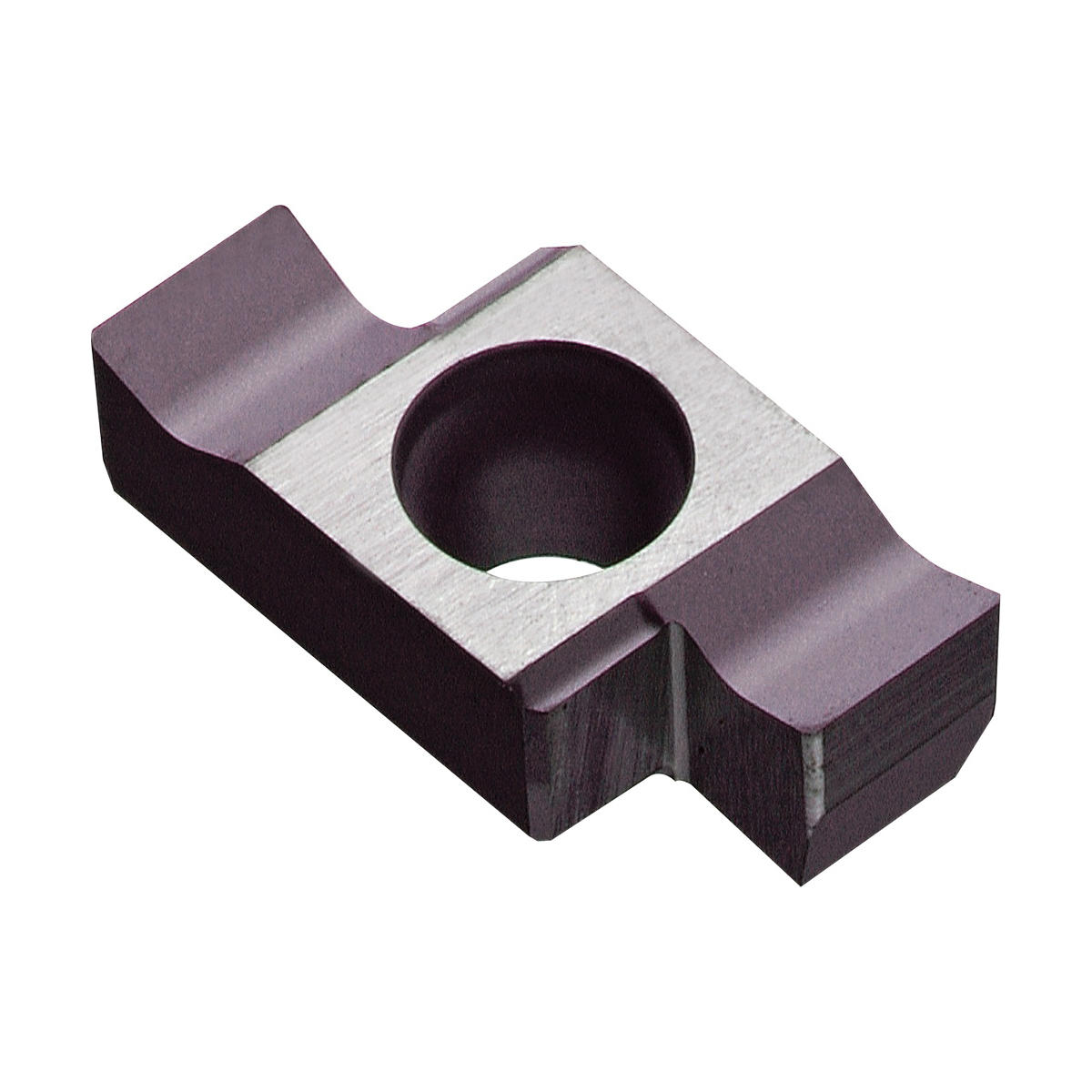

GEL300020DPR1225 GROOVING INSERT

GEL300020DPR1225 GROOVING INSERT

KYOCTKE17139 TKE17139
39.51 / EA
http://schema.org/OutOfStock
GEL300020DPR1225 GROOVING INSERT
  • Corner Radius: 0.2mm
  • Cutting Width: 3mm
  • Hand Direction: Left Hand
  • Insert Size: #300020
  • Insert Style: GE
  • Length: 16.44mm
  • Material: Carbide
  • Maximum Depth of Cut Decimal Inch: 0.177
  • Maximum Depth of Cut Metric: 4.5
  • Series: SIGE
  • Surface Treatment: PVD-MEGACOAT
  • Type: 2-Cutting Edge Metric
  • ANSI Code: GEL300020DPR1225
  • Chipbreaker: D
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Hole Diameter: 3.4mm
  • ISO Code: GEL300-020D
  • Manufacturer Grade: PR1225
  • Manufacturer Name: KYOCERA Precision Tools
  • Material Grade: P, M
  • Rake: Positive
  • Thickness: 5.05mm
  • Width: 6.8mm
QTY
Add to List
  • Application
  • Item Features
  • Standards
For light interrupted to interrupted cutting of stainless steel and internal grooving
  • Superior wear and oxidation-resistant MEGACOAT on micro-grain carbide substrate
  • Without full radius
ECCN: EAR99
