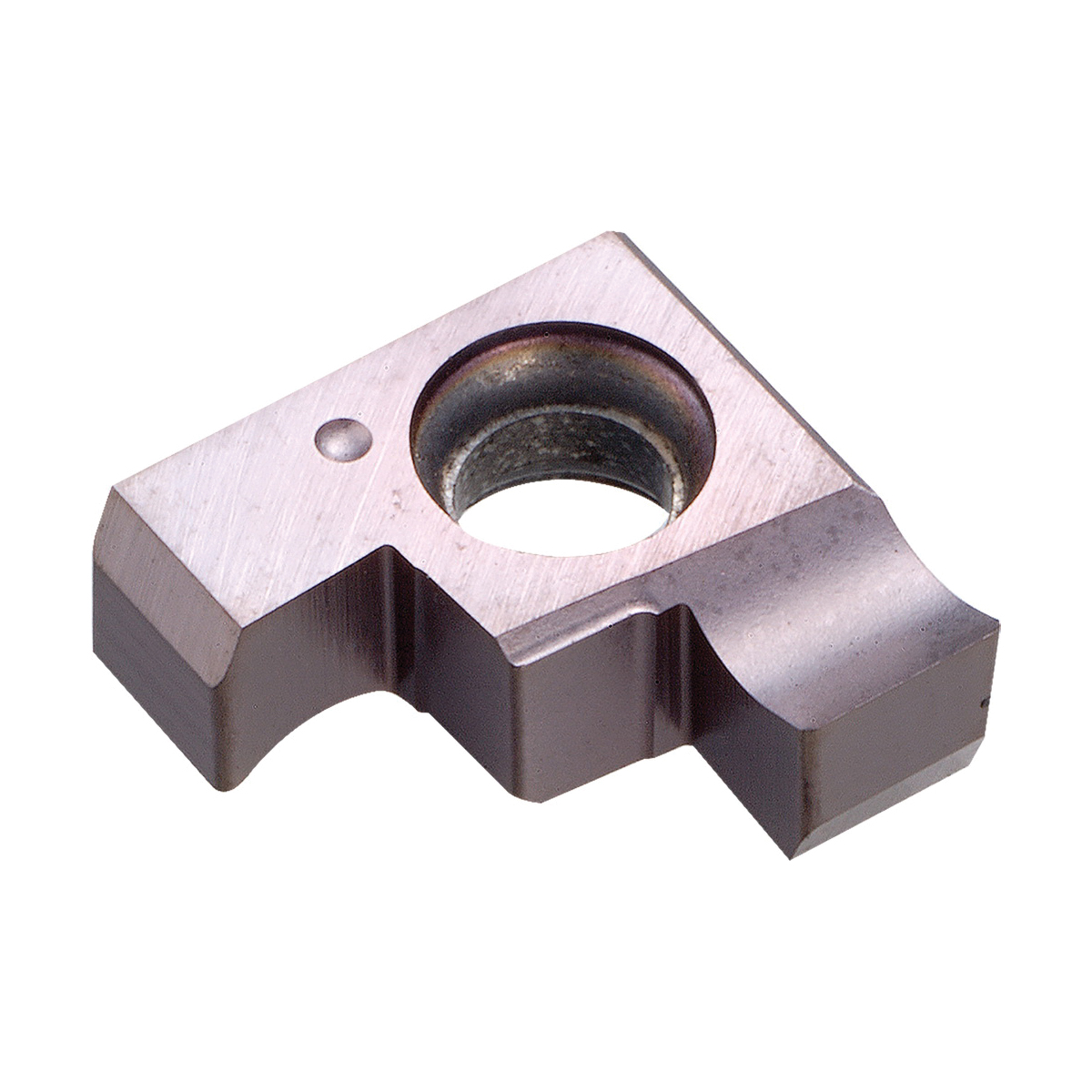

GEL145010BPR1225 GROOVING INSERT

GEL145010BPR1225 GROOVING INSERT

KYOCTKE16831 TKE16831
37.51 / EA
http://schema.org/OutOfStock
GEL145010BPR1225 GROOVING INSERT
  • Corner Radius: 0.1mm
  • Cutting Width: 1.45mm
  • Hand Direction: Left Hand
  • Insert Size: #145010
  • Insert Style: GE
  • Length: 8.2mm
  • Material: Carbide
  • Maximum Depth of Cut Decimal Inch: 0.087
  • Maximum Depth of Cut Metric: 2.2
  • Series: SIGE
  • Surface Treatment: PVD-MEGACOAT
  • Type: 2-Cutting Edge Metric
  • ANSI Code: GEL145010BPR1225
  • Chipbreaker: B
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Hole Diameter: 2.7mm
  • ISO Code: GEL145-010B
  • Manufacturer Grade: PR1225
  • Manufacturer Name: KYOCERA Precision Tools
  • Material Grade: P, M
  • Rake: Positive
  • Thickness: 3.18mm
  • Width: 8.46mm
QTY
Add to List
  • Application
  • Item Features
  • Standards
For light interrupted to interrupted cutting of stainless steel and internal grooving
  • Superior wear and oxidation-resistant MEGACOAT on micro-grain carbide substrate
  • Without full radius
ECCN: EAR99
