KYOCERA PRECISION TOOLS

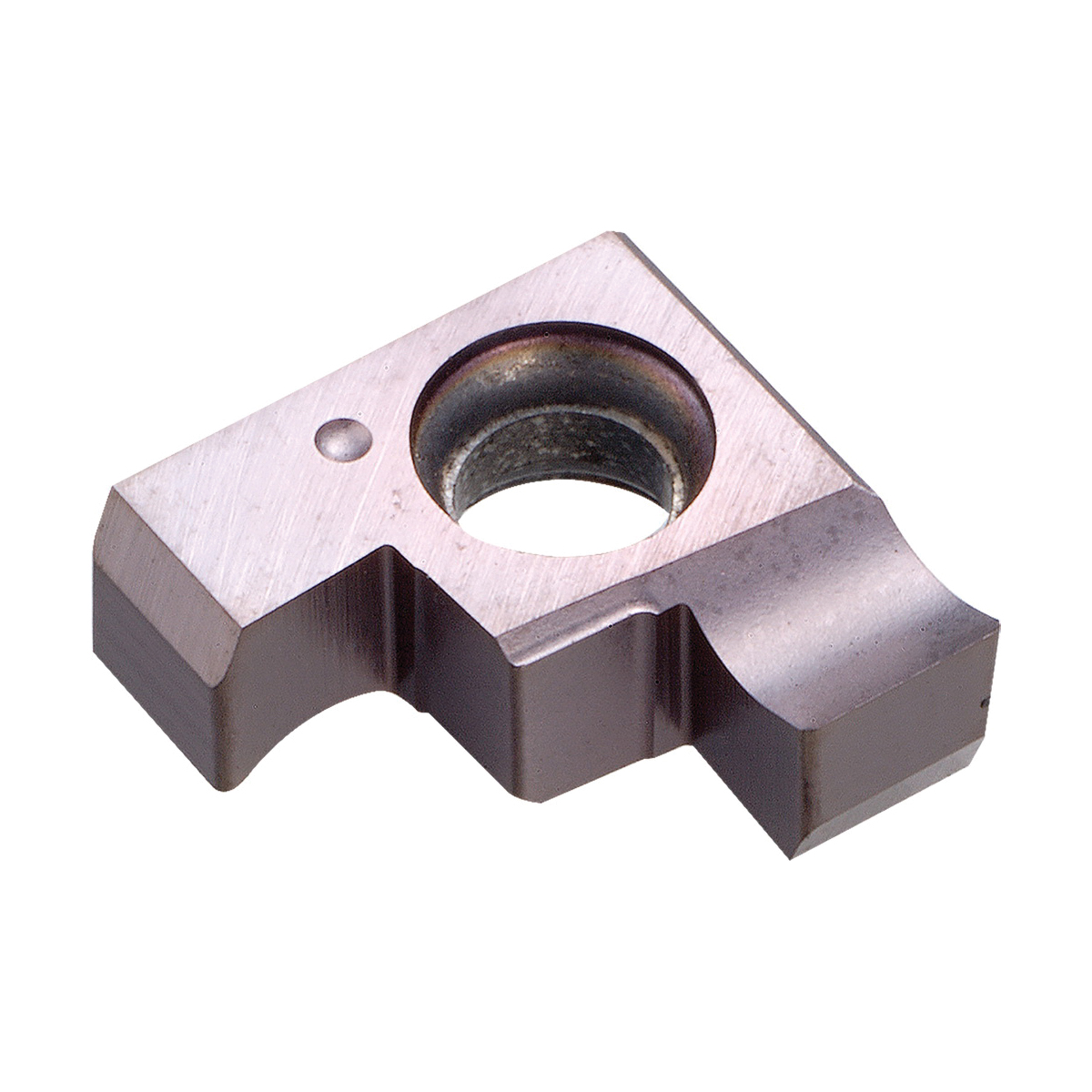

GEL150010APR1225 GROOVING INSERT

GEL150010APR1225 GROOVING INSERT

KYOCTKE16736 TKE16736
37.51 / EA
http://schema.org/OutOfStock
GEL150010APR1225 GROOVING INSERT
  • Corner Radius: 0.1mm
  • Cutting Width: 1.5mm
  • Hand Direction: Left Hand
  • Insert Size: #150010
  • Insert Style: GE
  • Length: 6.5mm
  • Material: Carbide
  • Maximum Depth of Cut Decimal Inch: 0.059
  • Maximum Depth of Cut Metric: 1.5
  • Series: SIGE
  • Surface Treatment: PVD-MEGACOAT
  • Type: 2-Cutting Edge Metric
  • ANSI Code: GEL150010APR1225
  • Chipbreaker: A
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • Hole Diameter: 2.5mm
  • ISO Code: GEL150-010A
  • Manufacturer Grade: PR1225
  • Manufacturer Name: KYOCERA Precision Tools
  • Material Grade: P, M
  • Rake: Positive
  • Thickness: 2.58mm
  • Width: 6.69mm
QTY
Add to List
  • Application
  • Item Features
  • Standards
For light interrupted to interrupted cutting of stainless steel and internal grooving
  • Superior wear and oxidation-resistant MEGACOAT on micro-grain carbide substrate
  • Without full radius
ECCN: EAR99
