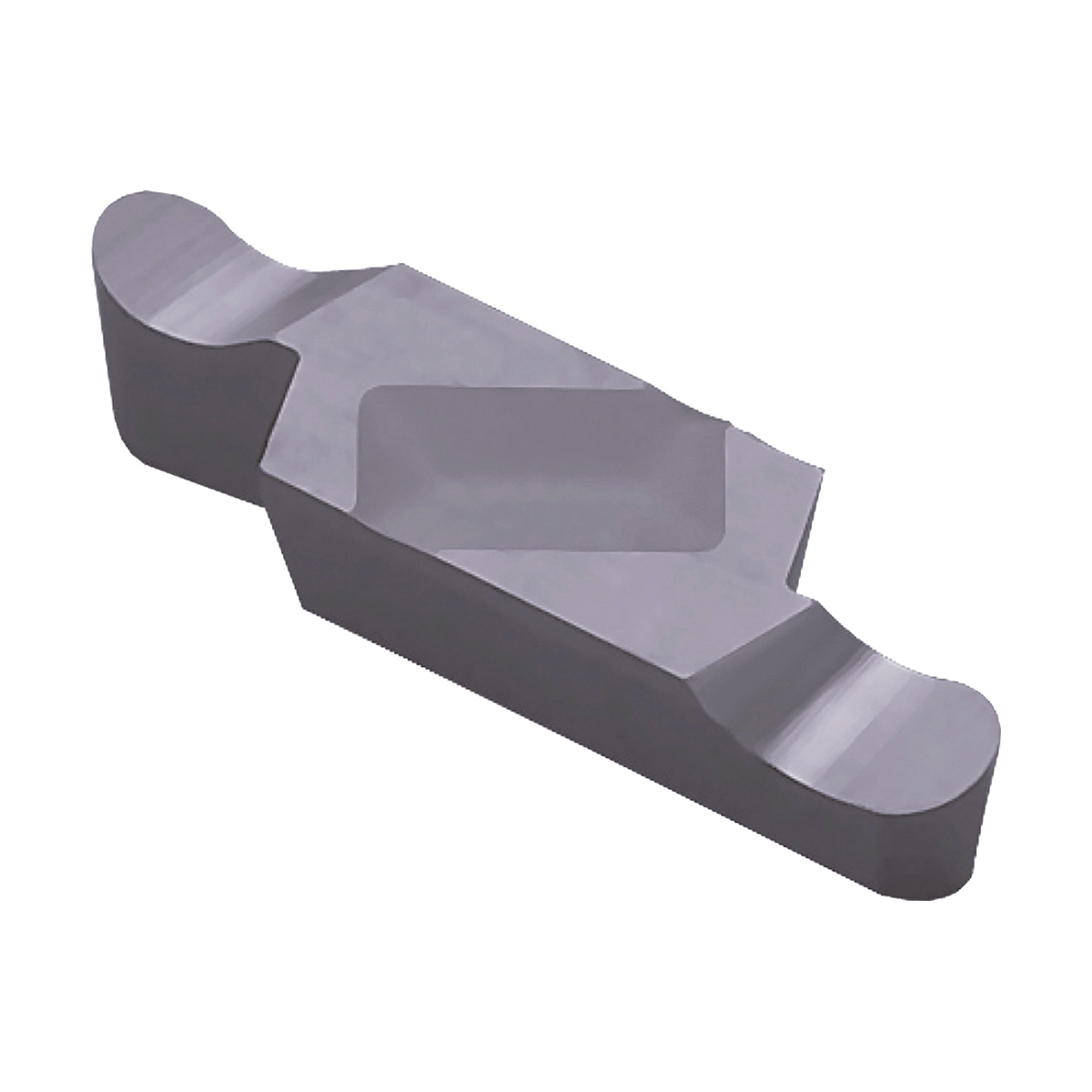

GVFL300150BRPR1225 GROOVING INSERT

GVFL300150BRPR1225 GROOVING INSERT

KYOCTKE15875 TKE15875
55.07 / EA
http://schema.org/OutOfStock
GVFL300150BRPR1225 GROOVING INSERT
  • Corner Radius: 1.5mm
  • Cutting Width: 3mm
  • Hand Direction: Left Hand
  • Insert Size: #300150
  • Insert Style: GVF
  • Length: 20mm
  • Material: Carbide
  • Maximum Depth of Cut Decimal Inch: 0.189
  • Maximum Depth of Cut Metric: 4.8
  • Series: GVF
  • Surface Treatment: PVD-MEGACOAT
  • Type: 2-Cutting Metric
  • ANSI Code: GVFL300150BRPR1225
  • Chipbreaker: BR
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • ISO Code: GVFL300150BR
  • Manufacturer Grade: PR1225
  • Manufacturer Name: KYOCERA Precision Tools
  • Material Grade: P, M
  • Rake: Positive
  • Thickness: 5mm
QTY
Add to List
  • Application
  • Item Features
  • Standards
For light interrupted to interrupted cutting of stainless steel and face grooving
  • Full radius
  • Superior wear and oxidation-resistant MEGACOAT on micro-grain carbide substrate
  • Without hole
ECCN: EAR99
