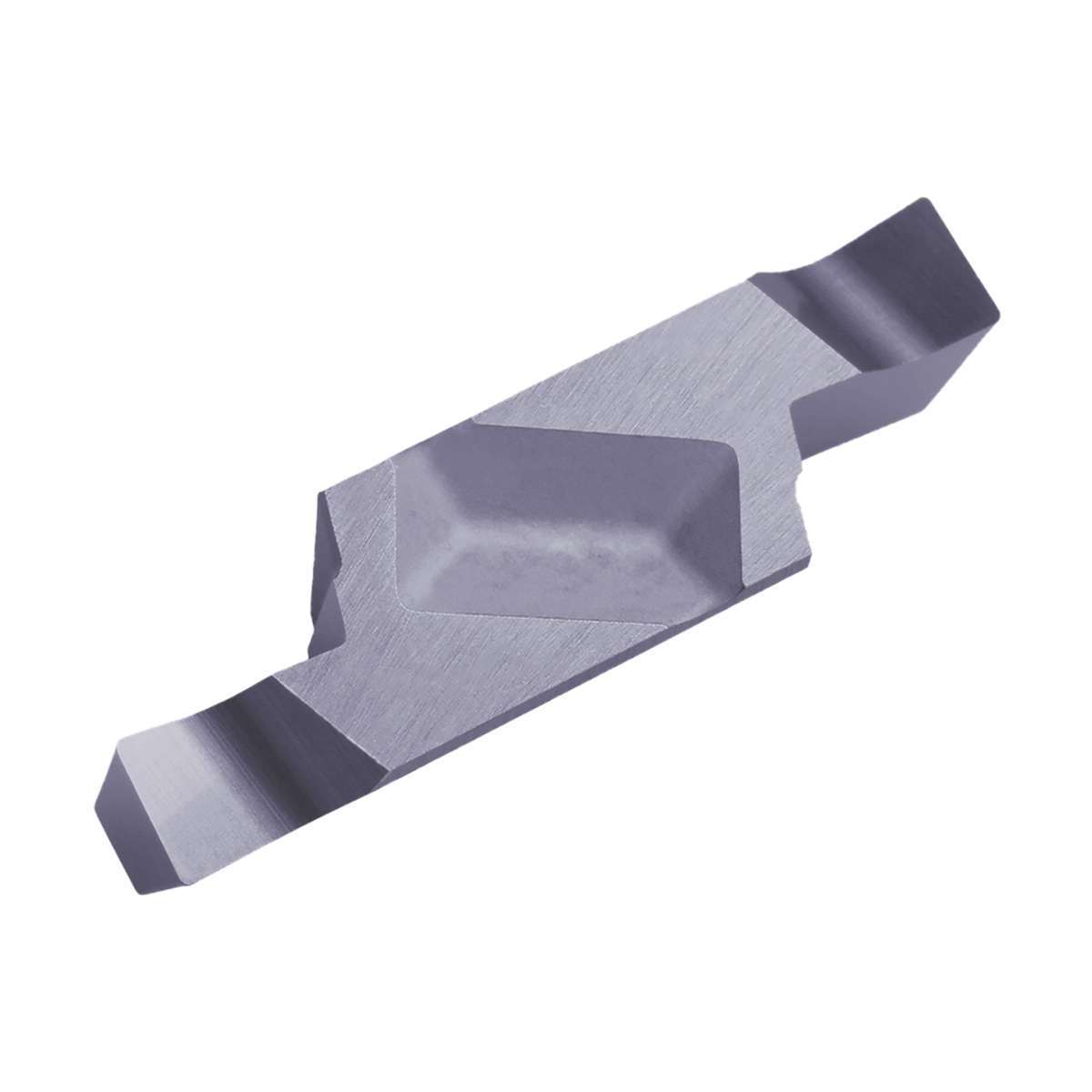

GVFR400020BPR1225 GROOVING INSERT
  • Corner Radius: 0.2mm
  • Cutting Width: 4mm
  • Hand Direction: Right Hand
  • Insert Size: #400020
  • Insert Style: GVF
  • Length: 20mm
  • Material: Carbide
  • Maximum Depth of Cut Decimal Inch: 0.209
  • Maximum Depth of Cut Metric: 5.3
  • Series: GFV
  • Surface Treatment: PVD-MEGACOAT
  • Type: 2-Cutting Edge
  • ANSI Code: GVFR400020BPR1225
  • Chipbreaker: B
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • ISO Code: GVFR400020B
  • Manufacturer Grade: PR1225
  • Manufacturer Name: KYOCERA Precision Tools
  • Material Grade: P, M
  • Rake: Positive
  • Thickness: 5mm
QTY
Add to List
  • Application
  • Item Features
  • Standards
Face Grooving Applications
  • Insert for face grooving
  • Superior wear and oxidation-resistant MEGACOAT on micro-grain carbide substrate
  • Light interrupted to interrupted cutting of stainless steel
  • Without hole and full radius
