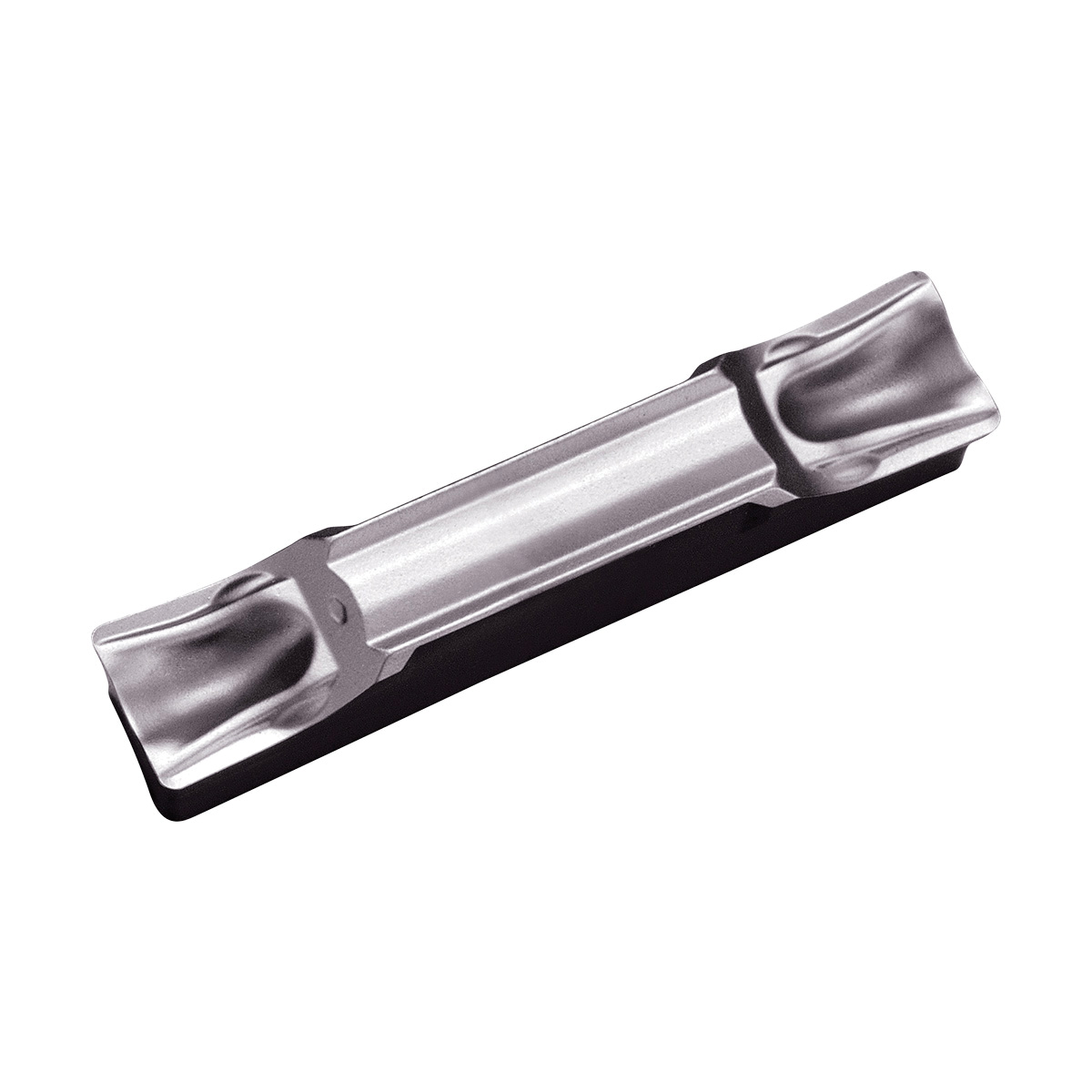

GDFM3020N030DMPR1225 GROOVING INSERT

GDFM3020N030DMPR1225 GROOVING INSERT

KYOCTKE10831 TKE10831
22.41 / EA
http://schema.org/OutOfStock
GDFM3020N030DMPR1225 GROOVING INSERT
  • Corner Radius: 0.3mm
  • Cutting Width: 3mm
  • Hand Direction: Neutral
  • Insert Size: #3020
  • Insert Style: GDFM
  • Length: 20mm
  • Material: Carbide
  • Maximum Depth of Cut Decimal Inch: 0.984
  • Maximum Depth of Cut Metric: 25.0
  • Series: KGD
  • Surface Treatment: PVD-MEGACOAT
  • Type: 2-Cutting Edge
  • ANSI Code: GDFM3020N030DMPR1225
  • Chipbreaker: DM
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • ISO Code: GDFM3020N030DMPR1225
  • Manufacturer Grade: PR1225
  • Manufacturer Name: KYOCERA Precision Tools
  • Material Grade: P, M
  • Rake: Positive
  • Thickness: 4.3mm
QTY
Add to List
  • Application
  • Item Features
  • Standards
Deep Face Grooving, Face Grooving and Traversing Applications
  • Insert for deep grooving, traversing
  • Superior wear and oxidation-resistant MEGACOAT on micro-grain carbide substrate
  • Light interrupted to interrupted cutting of stainless steel
  • Without hole and full radius
ECCN: EAR99|PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
