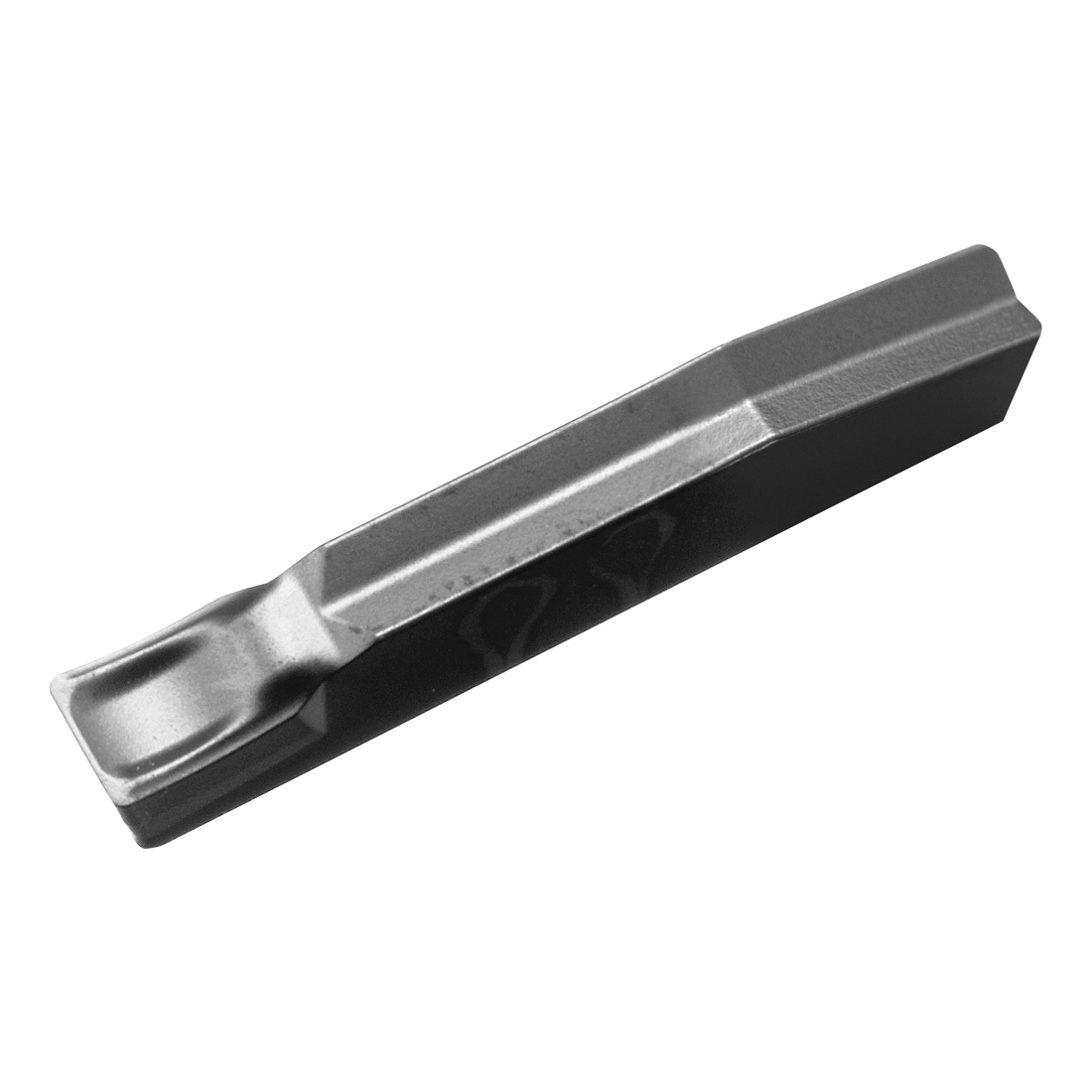

GDMS3020N030PHPR1225 GROOVING INSERT
GDMS3020N030PHPR1225 GROOVING INSERT
KYOCTKE10702
TKE10702
17.43
/ EA
http://schema.org/OutOfStock
/Product/KYOCTKE10702
- Corner Radius: 0.0118in
- Cutting Width: 3mm
- Hand Direction: Neutral
- Insert Size: 3020
- Insert Style: GDMS
- Length: 20mm
- Material: Carbide
- Maximum Depth of Cut Decimal Inch: 0.169
- Maximum Depth of Cut Metric: 4.3
- Series: GD Series
- Surface Treatment: PVD-MEGACOAT
- ANSI Code: GDMS3020N030PH PR1225
- Chipbreaker: PH
- Country of Origin: JP
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Grade: PR1225
- Manufacturer Name: KYOCERA Precision Tools
- Material Grade: M, P
- Thickness: 0.0669in
- Application
- Item Features
Light Interrupted To Interrupted Cutting of Stainless Steel
- For continuous and medium-roughing in (P) steel and (M) stainless steel
- Insert for external grooving, cut-off
- High feed/1-edge
- 1 cutting edge
- Superior wear and oxidation resistant MEGACOAT on micro grain carbide substrate
