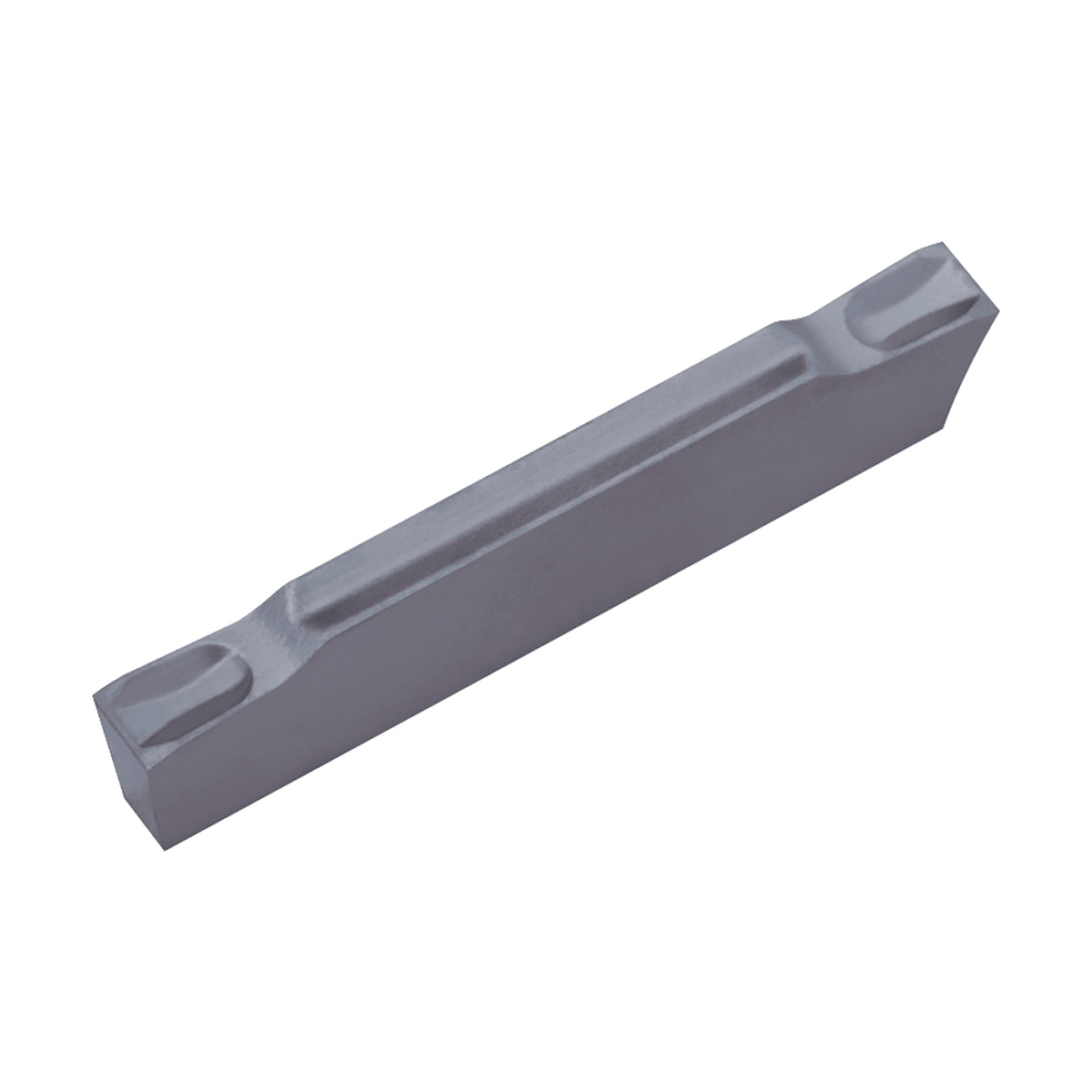

GMM1520RMT15DPR915 GROOVING INSERT

GMM1520RMT15DPR915 GROOVING INSERT

KYOCTJG12713 TJG12713
21.09 / EA
http://schema.org/OutOfStock
GMM1520RMT15DPR915 GROOVING INSERT
  • Corner Radius: 0.05mm
  • Cutting Width: 1.5mm
  • Hand Direction: Right Hand
  • Insert Size: #1520
  • Insert Style: GMM
  • Length: 20mm
  • Material: Carbide
  • Series: KGM
  • Surface Treatment: PVD-TiAlN Coated
  • Type: 2-Cutting Metric
  • ANSI Code: GMM1520RMT15DPR915
  • Chipbreaker: MT
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • ISO Code: GMM1520R-MT-15D
  • Lead Angle: 15°
  • Manufacturer Grade: PR915
  • Manufacturer Name: KYOCERA Precision Tools
  • Material Grade: P, M
  • Rake: Positive
  • Thickness: 4.3mm
QTY
Add to List
  • Application
  • Item Features
  • Standards
For stable and reliable high precision cutting of steel, deep grooving and cut-off
  • Cut-off/sharp cutting/oriented with lead angle
  • TiAlN base PVD coated super micro-grain carbide with good wear and oxidation resistance
  • Without hole and full radius
ECCN: EAR99
