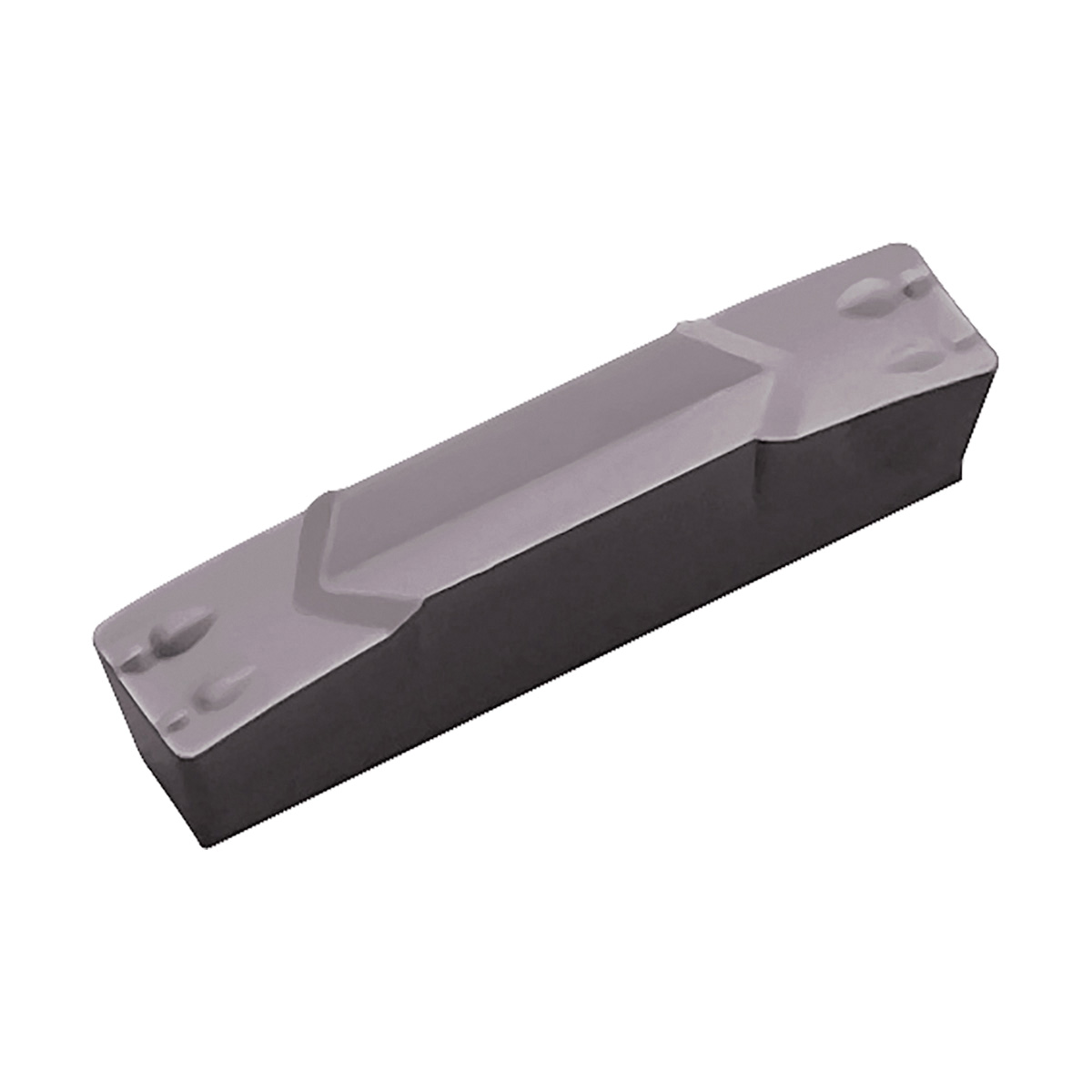

GMM2420020MWPR905 GROOVING INSERT
GMM2420020MWPR905 GROOVING INSERT
KYOCTJF12800
TJF12800
25.97
/ EA
http://schema.org/OutOfStock
/Product/KYOCTJF12800
- Corner Radius: 0.2mm
- Cutting Width: 2.4mm
- Hand Direction: Neutral
- Insert Size: #2420020
- Insert Style: GMM
- Length: 20mm
- Material: Carbide
- Maximum Depth of Cut Decimal Inch: 0.669
- Maximum Depth of Cut Metric: 17.0
- Series: KGM
- Surface Treatment: PVD-TiAlN Coated
- Type: 2-Cutting Edge
- ANSI Code: GMM2420020MWPR905
- Chipbreaker: MW
- Country of Origin: US|JP|CN|KR
- Has Attributes: Yes
- Has Image: Yes
- ISO Code: GMM2420-020MW
- Manufacturer Grade: PR905
- Manufacturer Name: KYOCERA Precision Tools
- Material Grade: K
- Rake: Positive
- Thickness: 4.3mm
- Application
- Item Features
- Standards
External Grooving and Traversing Applications
- Insert for grooving, traversing
- Chip control oriented/M-class
- Smooth fine surface PVD coated hard carbide with plastic deformation resistance
- Suitable for turning of gray and nodular cast iron
- Without hole and full radius
ECCN: EAR99|PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
