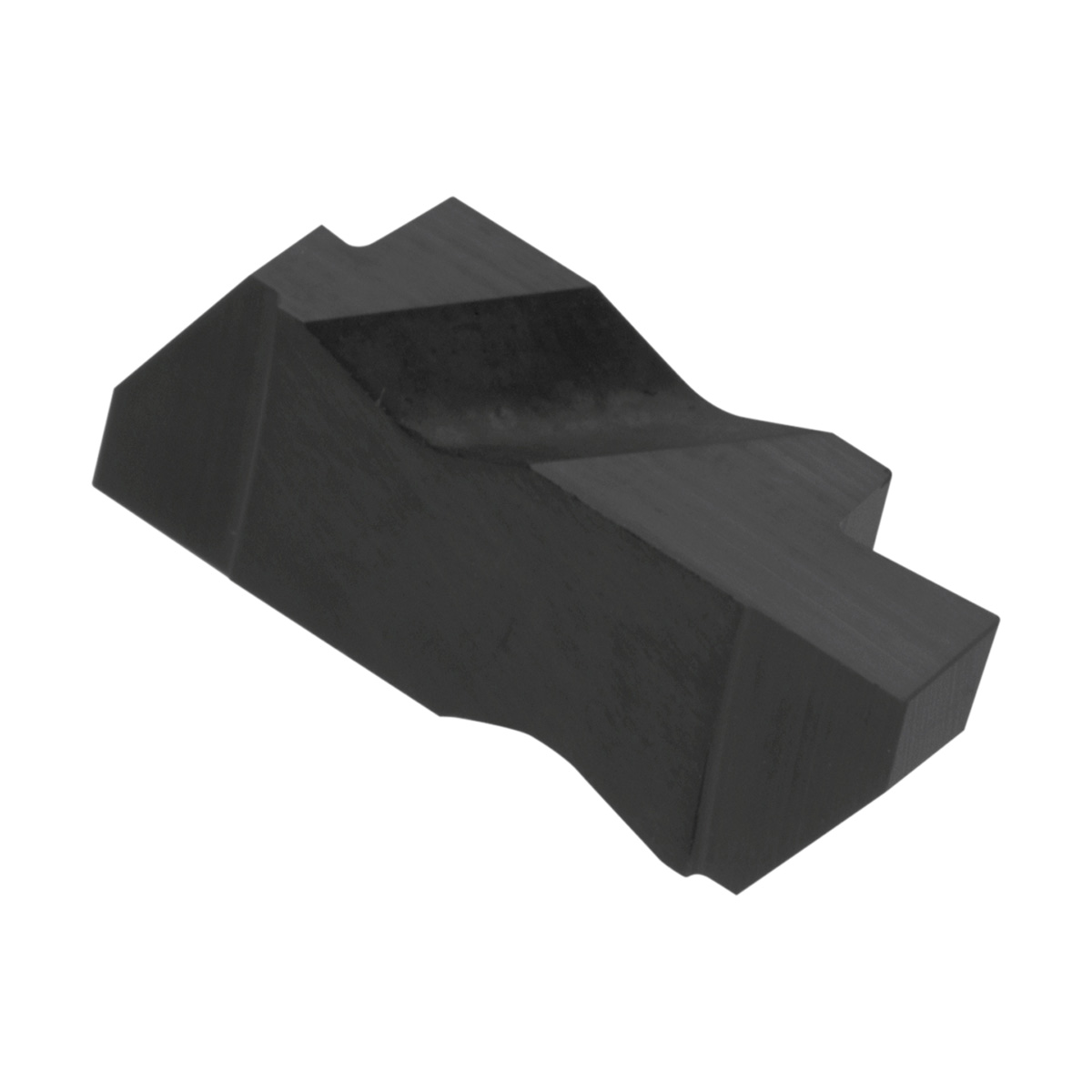

KCG2125LA65 GROOVING INSERT

KCG2125LA65 GROOVING INSERT

KYOCTCR89111 TCR89111
29.32 / EA
http://schema.org/OutOfStock
KCG2125LA65 GROOVING INSERT
  • Corner Radius: 0.0079in
  • Cutting Width: 0.1252in
  • Hand Direction: Left Hand
  • Insert Size: #2125
  • Insert Style: KCG
  • Length: 0.5402in
  • Material: Ceramic
  • Maximum Depth of Cut Decimal Inch: 0.1102
  • Maximum Depth of Cut Fractional Inch: 7/64
  • Series: CERA
  • Surface Treatment: CVD-TiC/Al2O3/Uncoated
  • Type: 2-Cutting Edge
  • ANSI Code: KCG2125LA65
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • ISO Code: KCG2125LA65
  • Lead Angle: 3°
  • Manufacturer Grade: A65
  • Manufacturer Name: KYOCERA Precision Tools
  • Material Grade: K, H
  • Rake: Positive
  • Thickness: 0.2188in
QTY
Add to List
  • Application
  • Item Features
  • Standards
External Grooving and Internal Large Diameter Shallow Grooving Applications
  • Insert for external grooving, internal large diameter shallow grooving
  • Aluminum oxide and titanium carbide ceramic
  • Semi-roughing to finishing of steel, cast iron and hard materials
  • Without hole and full radius
