KYOCERA PRECISION TOOLS

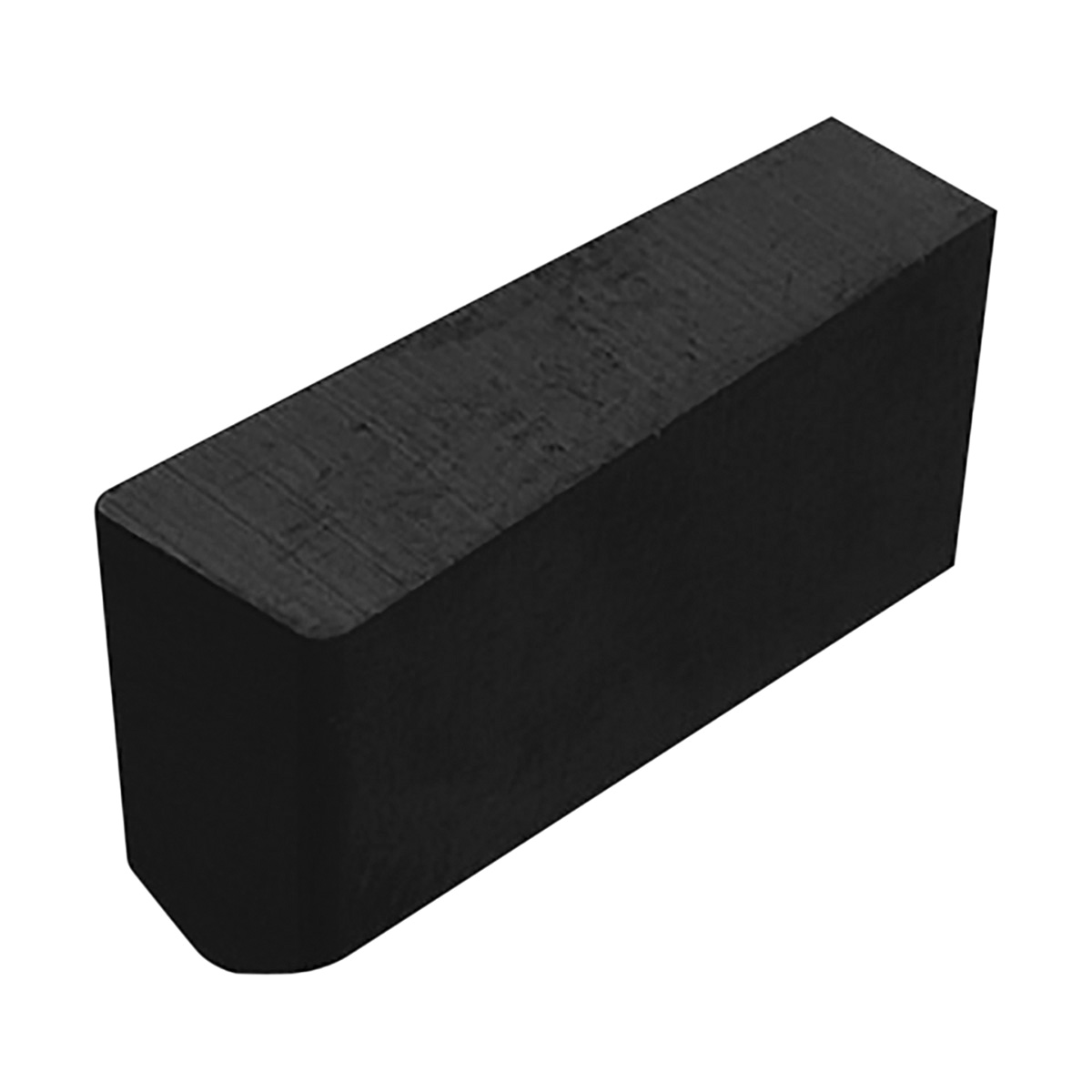

GG15720T00320A65 GROOVING INSERT

GG15720T00320A65 GROOVING INSERT

KYOCTCR89099 TCR89099
36.28 / EA
http://schema.org/OutOfStock
GG15720T00320A65 GROOVING INSERT
  • Corner Radius: 0.0197in
  • Cutting Width: 0.1575in
  • Hand Direction: Neutral
  • Insert Size: #15720
  • Insert Style: GG
  • Length: 0.5906in
  • Material: Ceramic
  • Maximum Depth of Cut Decimal Inch: 0.63
  • Series: EGT
  • Surface Treatment: CVD-TiC/Al2O3/Uncoated
  • Type: 1-Cutting Edge
  • ANSI Code: GG15720T00320A65
  • Country of Origin: US|JP|CN|KR
  • Has Attributes: Yes
  • Has Image: Yes
  • ISO Code: GG15720T00320A65
  • Manufacturer Grade: A65
  • Manufacturer Name: KYOCERA Precision Tools
  • Material Grade: K, H
  • Rake: Positive
  • Thickness: 0.1969in
QTY
Add to List
  • Application
  • Item Features
  • Standards
External Grooving Applications
  • Insert for external grooving
  • Aluminum oxide and titanium carbide ceramic
  • Semi-roughing to finishing of steel, cast iron and hard materials
  • Without hole and full radius
