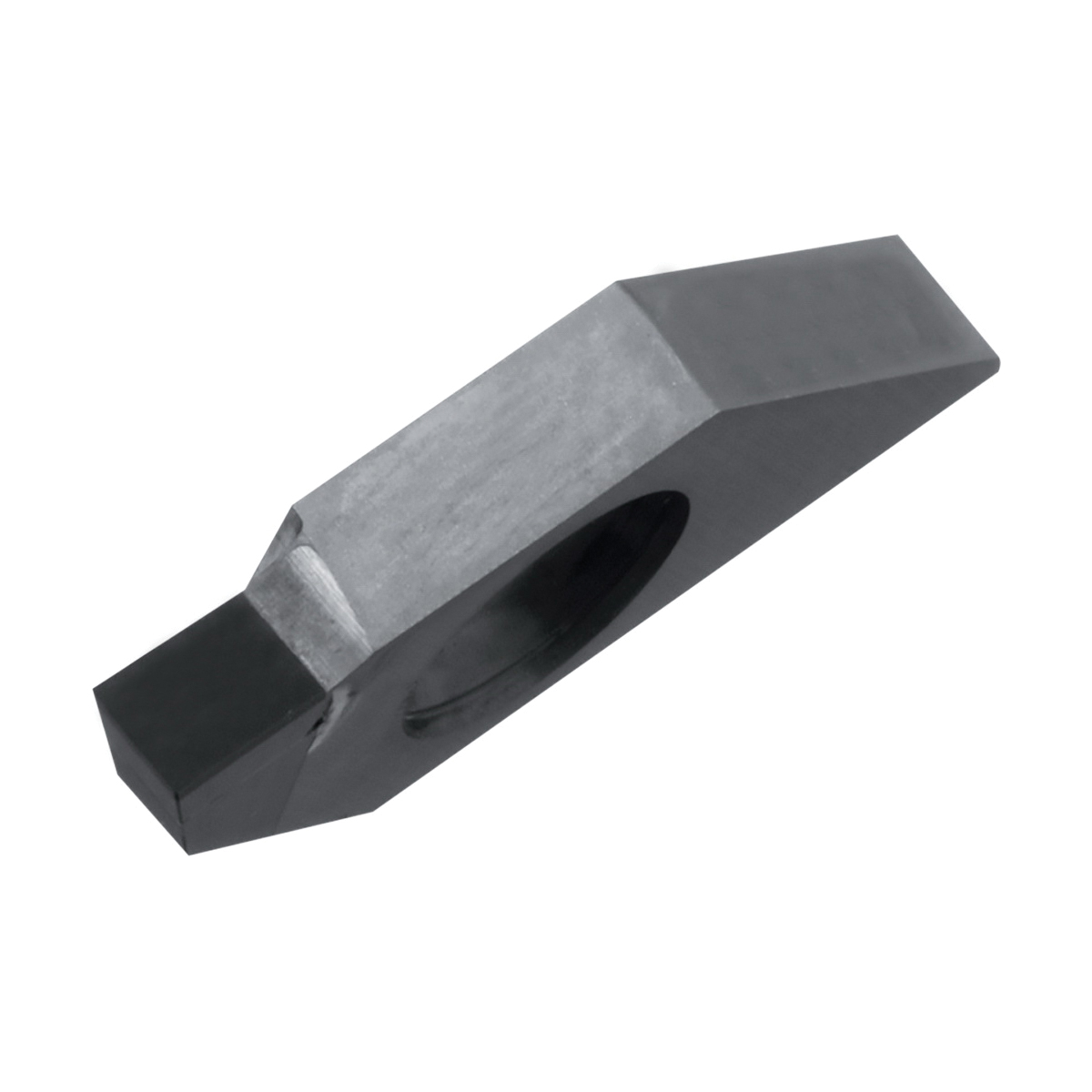

TKF12R250NBKPD001 GROOVING INSERT
TKF12R250NBKPD001 GROOVING INSERT
KYOCTBR16116
TBR16116
262.25
/ EA
http://schema.org/OutOfStock
/Product/KYOCTBR16116
- Corner Radius: 0.1mm
- Cutting Width: 2.5mm
- Hand Direction: Right Hand
- Insert Size: #12
- Insert Style: TKF
- Material: PCD
- Maximum Depth of Cut Decimal Inch: 0.157
- Maximum Depth of Cut Metric: 4.0
- Series: KTKF
- Type: 1-Cutting Metric
- ANSI Code: TKF12R250NBKPD001
- Chipbreaker: NB
- Country of Origin: US|JP|CN|KR
- Cutting Height: 8.3mm
- Has Attributes: Yes
- Has Image: Yes
- Hole Diameter: 5mm
- ISO Code: TKF12R250-NB
- Manufacturer Grade: KPD001
- Manufacturer Name: KYOCERA Precision Tools
- Material Grade: N, S
- Rake: Positive
- Thickness: 8.7mm
- Width: 3mm
KYOCERA expansive KTKF series features a large lineup of tooling options for cut-off, grooving, back turning, traversing, and threading operations.
- Application
- Item Features
- Standards
For high speed cutting of aluminum alloys, brass, non-ferrous metals and non-metals including plastics, fiberglass, carbide and ceramics, external grooving and traversing
- Super micro-grain pcd features cutting edge strength, wear resistance, fracture resistance, good edge sharpening performance and long, stable tool life
- Without full radius
ECCN: EAR99
