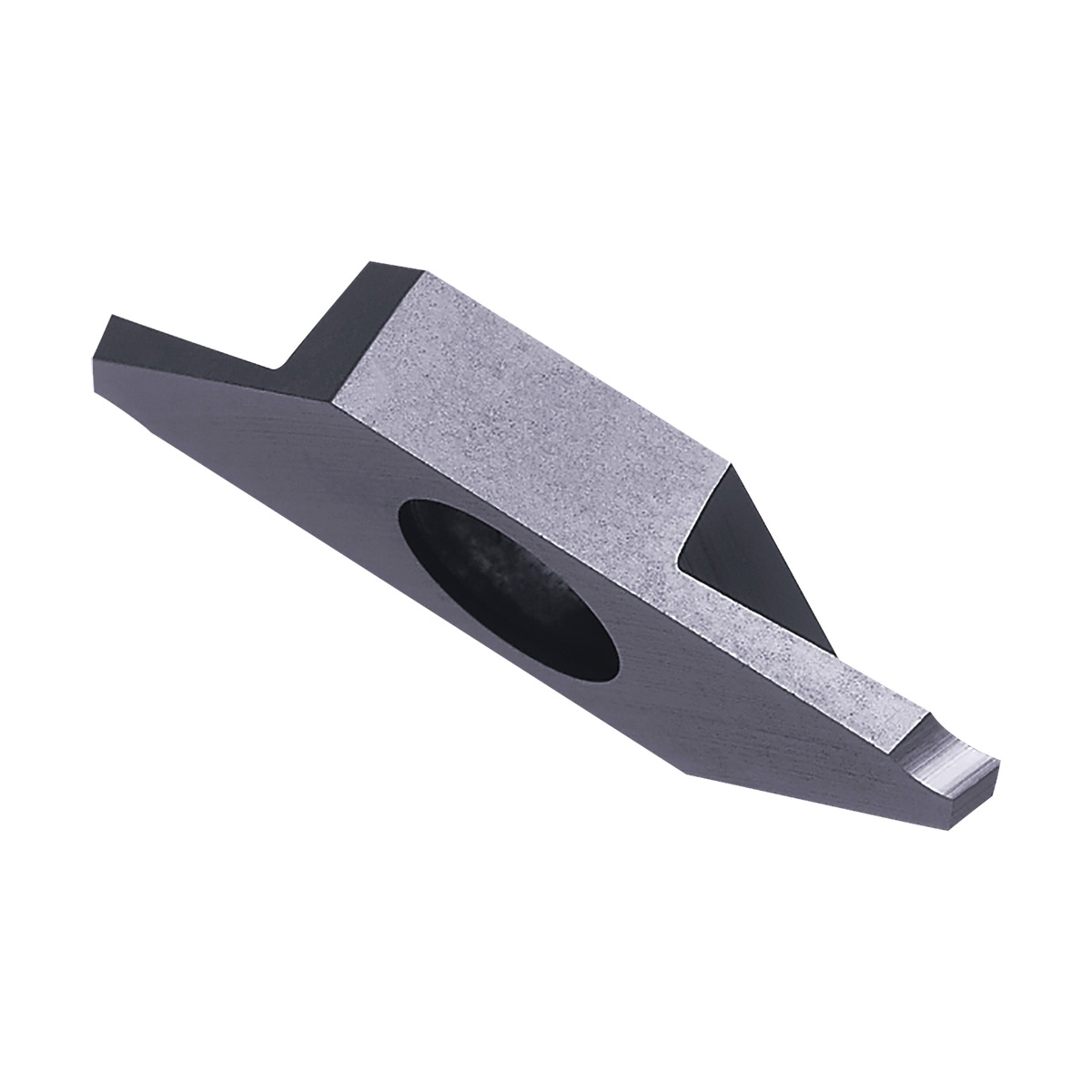

TKF16L200T16DRPR1535 CUT-OFF INSERT

TKF16L200T16DRPR1535 CUT-OFF INSERT

KYOCTLC16087 TLC16087
39.51 / EA
http://schema.org/OutOfStock
TKF16L200T16DRPR1535 CUT-OFF INSERT
  • ANSI Code: TKF16L200T16DRPR1535
  • Chipbreaker: T
  • Corner Radius: 0.08mm
  • Country of Origin: US|JP|CN|KR
  • Cutting Width: 2mm
  • Hand of Insert: Left Hand
  • Hole Diameter: 5mm
  • Insert Size: #16
  • Insert Style: TKF
  • ISO Code: TKF16L200-T-16DR
  • Lead Angle: 16°
  • Lead Angle Direction: Right Hand
  • Manufacturer Grade: PR1535
  • Manufacturer Name: KYOCERA Precision Tools
  • Material: Carbide
  • Material Grade: S, M
  • Series: KTKF
  • Surface Treatment: PVD-MEGACOAT NANO
  • Thickness: 9.5mm
  • Type: 2-Cutting Edge Positive Rake
  • Has Attributes: Yes
  • Has Image: Yes
QTY
Add to List
  • Application
  • Item Features
  • Standards
Cut-Off and Small Parts Machining Applications
  • Insert for cut-off for small parts machining
  • 16 deg right lead angle/tough edge
  • Stabilized turning operations and long tool life with MEGACOAT NANO coating technology
  • PVD for titanium alloy and precipitation hardened stainless steel
  • Without full radius
  • https://youtu.be/LqRa3XC1GA0
ECCN: EAR99|PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
