SS0500DRA095M15 0.3740-0.3933 DRILL
SS0500DRA095M15 0.3740-0.3933 DRILL
KYOCTHD11564
THD11564
326.75
/ EA
http://schema.org/OutOfStock
/Product/KYOCTHD11564
- Drill Size: 0.374 to 0.393 in
- Maximum Drill Depth: 0.591 in
- Overall Length Decimal Inch: 2.9528
- Overall Length Fractional Inch: 2-61/64
- Overall Length Metric: 75.001
- Series: Magic Drill DRA
- Shank Diameter Decimal Inch: 0.5
- Shank Diameter Fractional Inch: 1/2
- Shank Type: Straight
- Type: High Efficiency High Performance
- Country of Origin: US
- Drill Depth by Diameter Ratio: 1.5XD
- Has Attributes: Yes
- Has Image: Yes
- Insert Seat Size: 95
- Insert Style: DA
- Manufacturer Name: KYOCERA Precision Tools
- Point Angle: 140 deg
- Application
- Item Features
For core hole for threads, pre-drilling, through holes and mounting holes
- Special chisel edge with S-curve reduces thrust force and controls vibration
- Improved hole accuracy by controlling drill deflection with a 20% thicker web compared with Competitor A
- Optimized chip thinning for stable chip evacuation

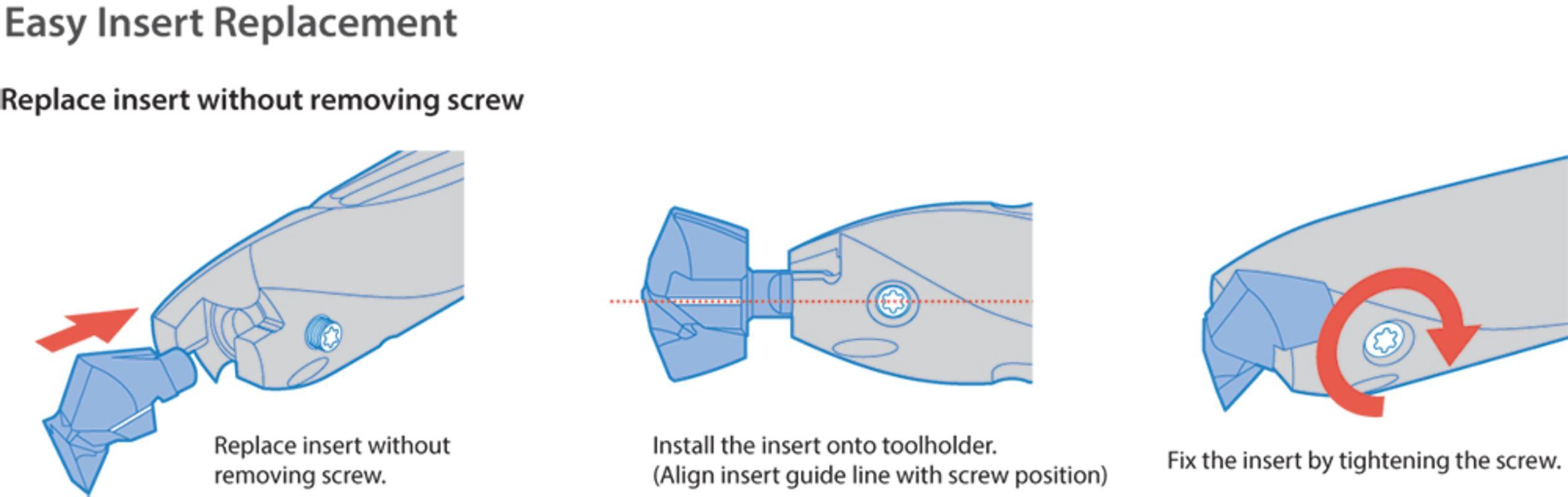

- Replace insert without removing screw
- MEGACOAT nano grade PR1535 is used to machine various materials from steel to stainless steel, with the combination of a tough substrate and a special nano layer coating
- Fine chip breaking even in deep hole drilling applications
- Low cutting force design improves hole accuracy
- Optimal web thickness limits deflection
- Long tool life and stable machining of various workpieces
