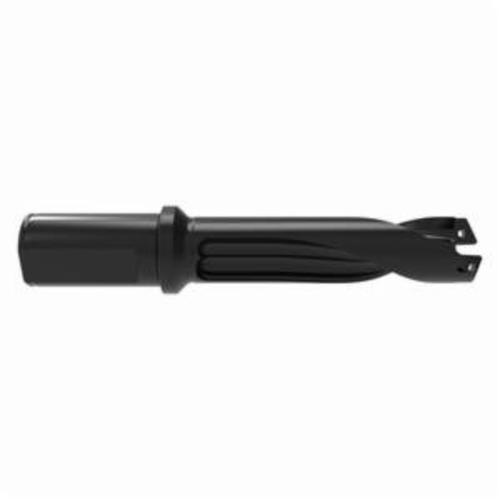

32MM 3XD GEN3SYS XT PRO HOLDER

32MM 3XD GEN3SYS XT PRO HOLDER

AMEST03320-150F ST03320-150F
467.00 / EA
http://schema.org/OutOfStock
  • Coolant Hole Thread: 1/4in NPT Rear
  • Country of Origin: US
  • Drill Body Length: 6-7/32in
  • Drill Depth: 4-9/64in
  • Drill Depth by Diameter Ratio: 3XD
  • Drilling Capacity: 1.259 to 1.378in
  • Manufacturer Name: Allied Machine & Engineering
  • Overall Length: 8-57/64in
  • Series: 32 Series
  • Shank Diameter: 1-1/2in
  • Shank Type: Flanged with Flat
  • Tool Holder Style: ST03320
  • Type: Replaceable Standard Length Straight Flute
  • Has Attributes: Yes
  • Has Image: Yes
A combination of a unique holder and insert designed specifically for the machines, material and environment commonly found in the structural steel industry. Enhancements to both the insert and holder provide the superior chip formation, life, and toughness required for harsh drilling applications. The inserts are stocked in our C2 (K20) carbide grade with AM300® coating for optimal life.
QTY
  • Item Features
  • Specifically designed for the structural steel industry
  • Superior chip formation, life, and toughness required for harsh drilling applications
  • Optimal tool life using our AM300® insert coating
  • Inserts are stocked in common structural steel hole sizes
