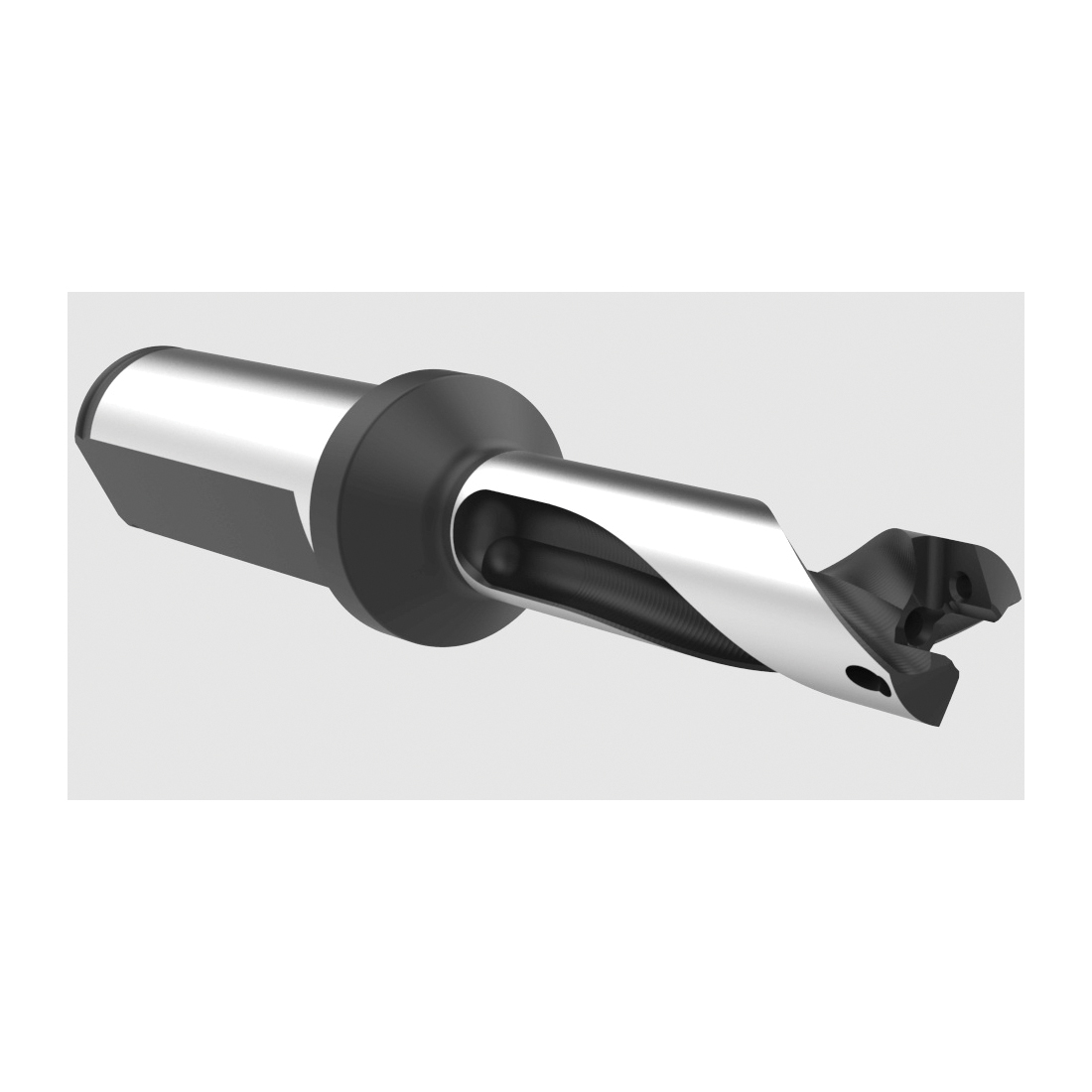

13MM 3XD GEN3SYS XT PRO HOLDER

13MM 3XD GEN3SYS XT PRO HOLDER

AMEST03130-20FM ST03130-20FM
284.00 / EA
http://schema.org/OutOfStock
  • Coolant Hole Thread: 1/8(BSP)mm
  • Country of Origin: US
  • Drill Depth: 42.1mm
  • Drill Depth by Diameter Ratio: 3XD
  • Drilling Capacity: 13-14mm
  • Manufacturer Name: Allied Machine & Engineering
  • Overall Length: 120.7mm
  • Series: 13
  • Shank Diameter: 20mm
  • Shank Type: Flanged
  • Type: Straight Flute Replaceable
  • Has Attributes: Yes
  • Has Image: Yes
A combination of a unique holder and insert designed specifically for the machines, material and environment commonly found in the Structural Steel Industry. Enhancements to both the insert and holder provide the superior chip formation, life, and toughness required for harsh drilling applications. The inserts are stocked in our C2 (K20) carbide grade with AM300® coating for optimal life.
QTY
  • Application
  • Item Features
Steel
  • Superior chip formation, life, and toughness required for harsh drilling applications
  • Specifically designed for the Structural Steel Industry
  • Inserts are stocked in common structural steel hole sizes
  • Optimal tool life using our AM300® insert coating
  • Available in 3xD, 5xD, and 7xD lengths
