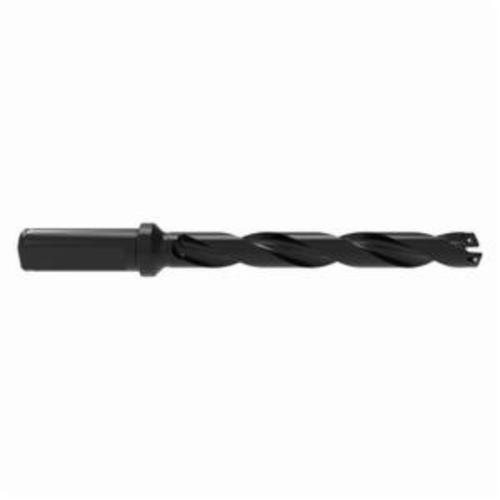

SERIES 15 GEN3SYS XT DRILL INSERT HOLDER
SERIES 15 GEN3SYS XT DRILL INSERT HOLDER
AME60715H-075F
60715H-075F
382.00
/ EA
http://schema.org/OutOfStock
/Product/AME60715H-075F
- Overall Length Decimal Inch: 2.03125, 7.5
- Overall Length Fractional Inch: 2-1/32, 7-1/2
- Overall Length Metric: 190.5, 51.594
- Series: 15 Series
- Shank Diameter Decimal Inch: 0.75
- Shank Diameter Fractional Inch: 3/4
- Shank Type: Flanged with Flat
- Type: Helical Flute Replaceable Standard Length
- Coolant Hole Thread: 1/8in NPT Rear
- Drill Body Length: 5-31/64in
- Drill Depth: 4-27/64in
- Drill Depth by Diameter Ratio: 7XD
- Drilling Capacity: 0.5906 to 0.6298in
- Has Attributes: Yes
- Has Image: Yes
GEN3SYS® XT high penetration drills utilize corner and cutting edge enhancements combined with our new AM300® coating to deliver more durability, reliability and productivity. The GEN3SYS® XT geometry is designed to increase penetration rates and tool life, providing the lowest cost per hole among high penetration drill lines.
- Application
- Item Features
Aerospace, Agriculture, Automotive, Firearms, General Production, Marine, Renewable Energy/Energy, Oil and Gas
- Provides excellent chip control, improved durability and added stability
- Increase penetration rates and tool life
- Lower cost per hole
