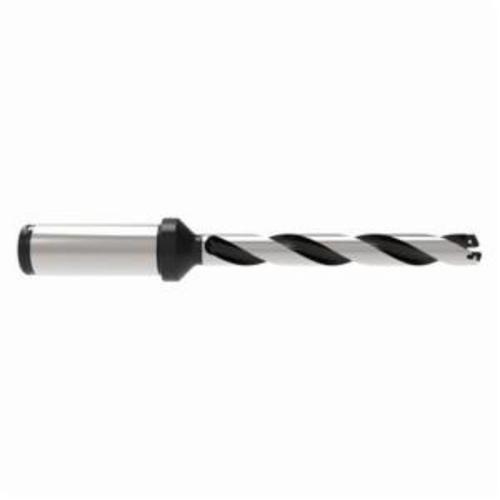

SERIES 12 GEN3SYS XT DRILL INSERT HOLDER
SERIES 12 GEN3SYS XT DRILL INSERT HOLDER
AME60712H-20CM
60712H-20CM
365.00
/ EA
http://schema.org/OutOfStock
/Product/AME60712H-20CM
- Overall Length Decimal Inch: 168.6, 50
- Overall Length Metric: 1270, 4282.44
- Series: 12 Series
- Shank Diameter Decimal Inch: 0.787
- Shank Diameter Metric: 20
- Shank Type: Cylindrical/Flanged
- Type: Helical Flute Replaceable Standard Length
- Coolant Hole Thread: 1/8in BSP Rear
- Drill Body Length: 118.5mm
- Drill Depth: 90.9mm
- Drill Depth by Diameter Ratio: 7XD
- Drilling Capacity: 12 to 12.99mm
- Has Attributes: Yes
- Has Image: Yes
GEN3SYS® XT high penetration drills utilize corner and cutting edge enhancements combined with our new AM300® coating to deliver more durability, reliability and productivity. The GEN3SYS® XT geometry is designed to increase penetration rates and tool life, providing the lowest cost per hole among high penetration drill lines.
- Application
- Item Features
Aerospace, Agriculture, Automotive, Firearms, General Production, Marine, Renewable Energy/Energy, Oil and Gas
- Provides excellent chip control, improved durability and added stability
- Increase penetration rates and tool life
- Lower cost per hole
