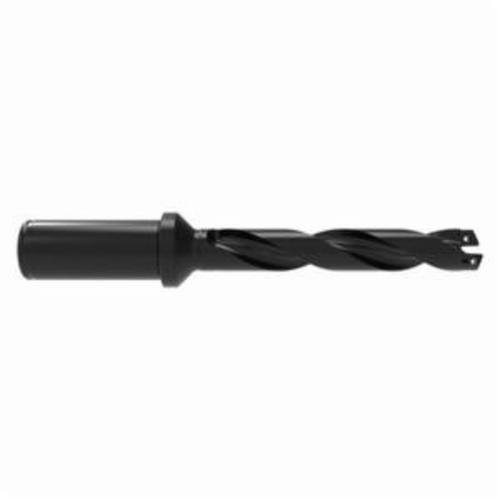

SERIES 20 GEN3SYS XT DRILL INSERT HOLDER
SERIES 20 GEN3SYS XT DRILL INSERT HOLDER
AME60520H-100C
60520H-100C
415.00
/ EA
http://schema.org/OutOfStock
/Product/AME60520H-100C
- Overall Length Decimal Inch: 2.28125, 7.953125
- Overall Length Fractional Inch: 2-9/32, 7-61/64
- Overall Length Metric: 202.009, 57.944
- Series: 20 Series
- Shank Diameter Decimal Inch: 1
- Shank Diameter Fractional Inch: 1
- Shank Type: Cylindrical/Flanged
- Type: Helical Flute Replaceable Standard Length
- Coolant Hole Thread: 1/8in NPT Rear
- Drill Body Length: 5-11/16in
- Drill Depth: 4-11/32in
- Drill Depth by Diameter Ratio: 5XD
- Drilling Capacity: 0.7874 to 0.866in
- Has Attributes: Yes
- Has Image: Yes
GEN3SYS® XT high penetration drills utilize corner and cutting edge enhancements combined with our new AM300® coating to deliver more durability, reliability and productivity. The GEN3SYS® XT geometry is designed to increase penetration rates and tool life, providing the lowest cost per hole among high penetration drill lines.
- Application
- Item Features
Aerospace, Agriculture, Automotive, Energy, Firearms, General Production, Marine, Oil and Gas
- Provides excellent chip control, improved durability and added stability
- Increase penetration rates and tool life
- Lower cost per hole
