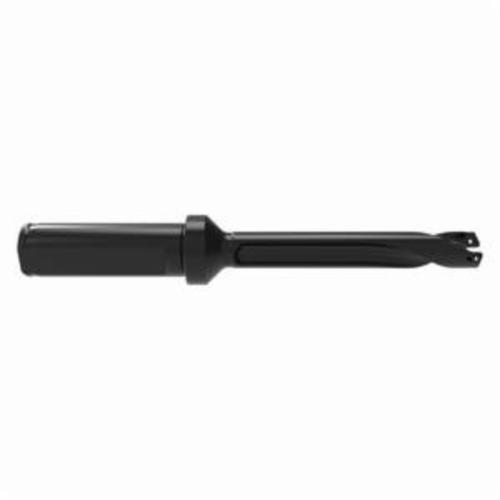

SERIES 11 GEN3SYS XT DRILL INSERT HOLDER
SERIES 11 GEN3SYS XT DRILL INSERT HOLDER
AME60511S-063F
60511S-063F
332.00
/ EA
http://schema.org/OutOfStock
/Product/AME60511S-063F
- Overall Length Decimal Inch: 1.00348605577689, 5.00465838509317
- Overall Length Metric: 127.118, 25.489
- Series: 11 Series
- Shank Diameter Decimal Inch: 0.625
- Shank Diameter Fractional Inch: 5/8
- Shank Type: Flanged with Flat
- Type: Replaceable Standard Length Straight Flute
- Coolant Hole Thread: 1/16in NPT Rear
- Drill Body Length: 3/13/1932in
- Drill Depth: 2/23/1964in
- Drill Depth by Diameter Ratio: 5XD
- Drilling Capacity: 0.4331 to 0.4723in
- Has Attributes: Yes
- Has Image: Yes
GEN3SYS® XT high penetration drills utilize corner and cutting edge enhancements combined with our new AM300® coating to deliver more durability, reliability and productivity. The GEN3SYS® XT geometry is designed to increase penetration rates and tool life, providing the lowest cost per hole among high penetration drill lines.
- Application
- Item Features
Aerospace, Agriculture, Automotive, Energy, Firearms, General Production, Marine, Oil and Gas
- Provides excellent chip control, improved durability and added stability
- Increase penetration rates and tool life
- Lower cost per hole
