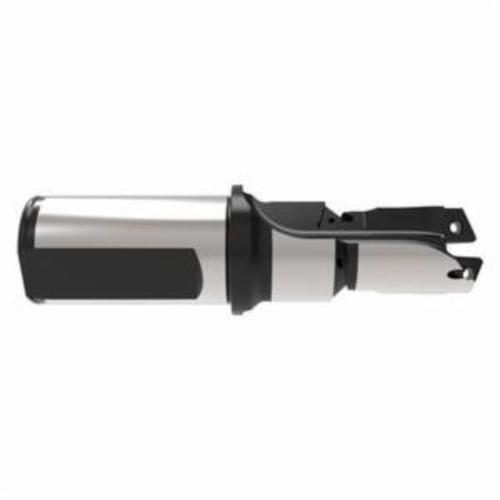

SERIES 32 GEN3SYS XT DRILL INSERT HOLDER
SERIES 32 GEN3SYS XT DRILL INSERT HOLDER
AME60132C45-40FM
60132C45-40FM
571.00
/ EA
http://schema.org/OutOfStock
/Product/AME60132C45-40FM
- Overall Length Decimal Inch: 160.6
- Overall Length Metric: 4079.24
- Series: 32 Series
- Shank Diameter Decimal Inch: 1.575
- Shank Diameter Metric: 40
- Shank Type: Flanged with Flat
- Type: Drill/Chamfer Flute Replaceable Stub Length
- Country of Origin: US
- Drill Body Length: 90.7mm
- Drill Depth: 62.4mm
- Drill Depth by Diameter Ratio: 1XD
- Drilling Capacity: 32 to 35mm
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: Allied Machine & Engineering
GEN3SYS® XT high penetration drills utilize corner and cutting edge enhancements combined with our new AM300® coating to deliver more durability, reliability and productivity. The GEN3SYS® XT geometry is designed to increase penetration rates and tool life, providing the lowest cost per hole among high penetration drill lines.
- Application
- Item Features
Aerospace, Agriculture, Automotive, Energy, Firearms, General Production, Marine, Oil and Gas
- Provides excellent chip control, improved durability and added stability
- Increase penetration rates and tool life
- Lower cost per hole
