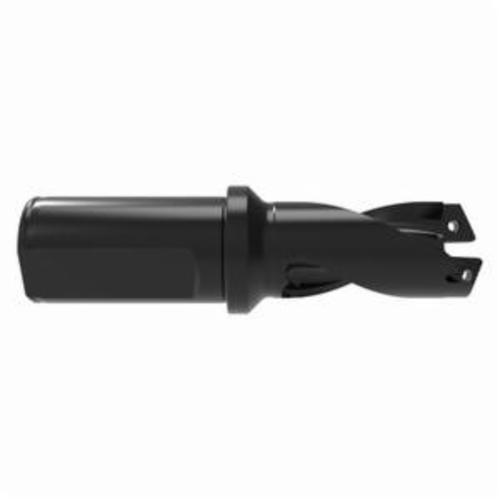

SERIES 29 GEN3SYS XT DRILL INSERT HOLDER
SERIES 29 GEN3SYS XT DRILL INSERT HOLDER
AME60129H-125F
60129H-125F
452.00
/ EA
http://schema.org/OutOfStock
/Product/AME60129H-125F
- Overall Length Decimal Inch: 5.25
- Overall Length Fractional Inch: 5-1/4
- Overall Length Metric: 133.35
- Series: 29 Series
- Shank Diameter Decimal Inch: 1.25
- Shank Diameter Fractional Inch: 1-1/4
- Shank Type: Flanged with Flat
- Type: Helical Flute Replaceable Stub Length
- Coolant Hole Thread: 1/4in NPT Rear
- Country of Origin: US
- Drill Body Length: 2-31/32in
- Drill Depth: 1-3/8in
- Drill Depth by Diameter Ratio: 1XD
- Drilling Capacity: 1.1417 to 1.2597in
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: Allied Machine & Engineering
GEN3SYS® XT high penetration drills utilize corner and cutting edge enhancements combined with our new AM300® coating to deliver more durability, reliability and productivity. The GEN3SYS® XT geometry is designed to increase penetration rates and tool life, providing the lowest cost per hole among high penetration drill lines.
- Application
- Item Features
Aerospace, Agriculture, Automotive, Energy, Firearms, General Production, Marine, Oil and Gas
- Provides excellent chip control, improved durability and added stability
- Increase penetration rates and tool life
- Lower cost per hole
