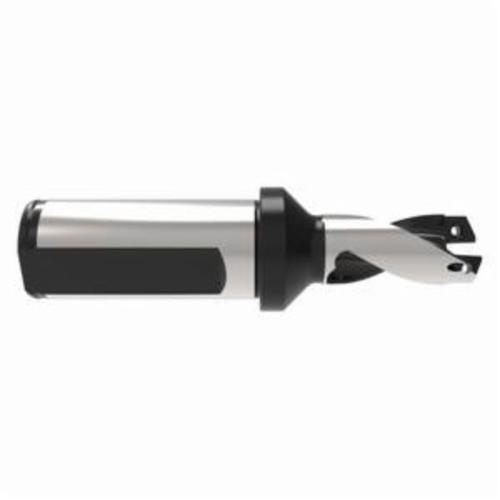

SERIES 18 GEN3SYS XT DRILL INSERT HOLDER
SERIES 18 GEN3SYS XT DRILL INSERT HOLDER
AME60118H-25FM
60118H-25FM
365.00
/ EA
http://schema.org/OutOfStock
/Product/AME60118H-25FM
- Overall Length Decimal Inch: 111.9
- Overall Length Metric: 2842.26
- Series: 18 Series
- Shank Diameter Decimal Inch: 0.984
- Shank Diameter Metric: 25
- Shank Type: Flanged with Flat
- Type: Helical Flute Replaceable Stub Length
- Coolant Hole Thread: 1/8in BSP Rear
- Country of Origin: US
- Drill Body Length: 56mm
- Drill Depth: 22mm
- Drill Depth by Diameter Ratio: 1XD
- Drilling Capacity: 18 to 19.99mm
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: Allied Machine & Engineering
GEN3SYS® XT high penetration drills utilize corner and cutting edge enhancements combined with our new AM300® coating to deliver more durability, reliability and productivity. The GEN3SYS® XT geometry is designed to increase penetration rates and tool life, providing the lowest cost per hole among high penetration drill lines.
- Application
- Item Features
Aerospace, Agriculture, Automotive, Energy, Firearms, General Production, Marine, Oil and Gas
- Provides excellent chip control, improved durability and added stability
- Increase penetration rates and tool life
- Lower cost per hole
