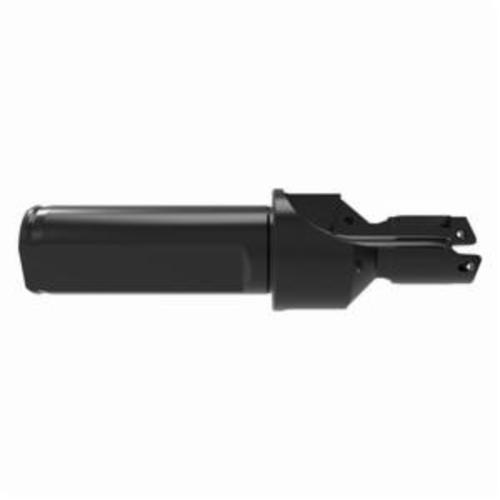

SERIES 15 GEN3SYS XT DRILL INSERT HOLDER
SERIES 15 GEN3SYS XT DRILL INSERT HOLDER
AME60115C45-075F
60115C45-075F
398.00
/ EA
http://schema.org/OutOfStock
/Product/AME60115C45-075F
- Overall Length Decimal Inch: 3.765625
- Overall Length Fractional Inch: 3-49/64
- Overall Length Metric: 95.647
- Series: 15 Series
- Shank Diameter Decimal Inch: 0.75
- Shank Diameter Fractional Inch: 3/4
- Shank Type: Flanged with Flat
- Type: Drill/Chamfer Flute Replaceable Stub Length
- Country of Origin: US
- Drill Body Length: 1-47/64in
- Drill Depth: 1-1/16in
- Drill Depth by Diameter Ratio: 1XD
- Drilling Capacity: 0.5906 to 0.6298in
- Has Attributes: Yes
- Has Image: Yes
- Manufacturer Name: Allied Machine & Engineering
GEN3SYS® XT high penetration drills utilize corner and cutting edge enhancements combined with our new AM300® coating to deliver more durability, reliability and productivity. The GEN3SYS® XT geometry is designed to increase penetration rates and tool life, providing the lowest cost per hole among high penetration drill lines.
- Application
- Item Features
Aerospace, Agriculture, Automotive, Energy, Firearms, General Production, Marine, Oil and Gas
- Provides excellent chip control, improved durability and added stability
- Increase penetration rates and tool life
- Lower cost per hole
